901-10107

Active

Amphenol RF

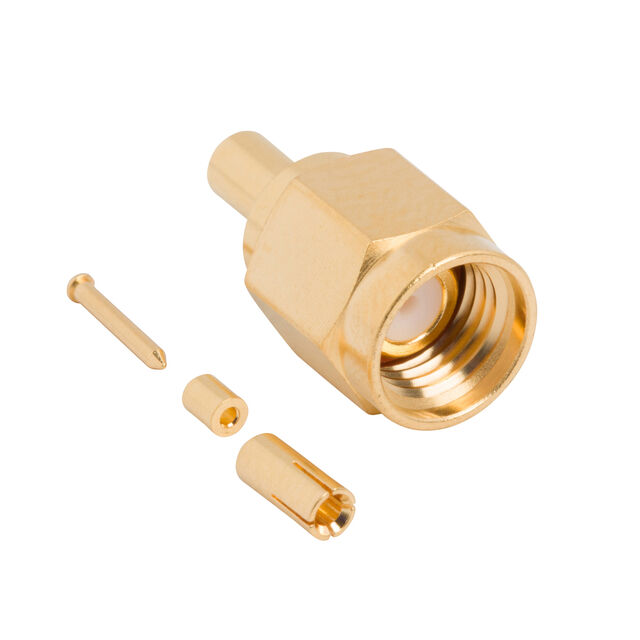

SMA STRAIGHT PLUG, 1.13MM CABLE,

Deep-Dive with AI

Search across all available documentation for this part.

901-10107

Active

Amphenol RF

SMA STRAIGHT PLUG, 1.13MM CABLE,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	901-10107

Body Finish	Gold
Body Material	Brass
Cable Group	1.13mm Coaxial Cable
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Includes	1 pcs, 1 pcs, 1 pcs, 1 pcs, 1 pcs
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

901-10 Series

...

Part	Voltage Rating	Connector Type	Body Material	Shield Termination	Number of Ports	Center Contact Plating	Frequency - Max [Max]	Impedance	Dielectric Material	Connector Style	Housing Color	Mounting Type	Center Contact Material	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Cable Group	Body Finish	Mounting Feature	Cable Group [diameter]	Adapter Type	Style	Adapter Series	Fastening Type	Center Gender	Convert To (Adapter End)	Convert From (Adapter End)	Conversion Type	Ingress Protection	Includes	Cable Group	Insertion Loss	Includes
Amphenol RF 901-10784	335 V	Female Socket Plug	Brass	Crimp	1	Gold	7.1 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	RP-SMA	Gold	45° Angle Free Hanging (In-Line)	Beryllium Copper	500	-65 ░C	165 °C	Solder	1.13mm Coaxial Cable	Gold
Amphenol RF 901-10752	335 V	Female Socket Jack	Brass	Crimp	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	Gold		Beryllium Copper	500	-65 ░C	165 °C	Solder		Gold	Bulkhead - Front Side Nut	0.81 mm
Amphenol RF 901-10007			Beryllium Copper Stainless Steel			Gold	4 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)			Free Hanging (In-Line)	Brass		-40 °C	155 °C			Gold; Passivated			Plug to Plug	Straight	SMA to 1.0/2.3	Snap-On Threaded	Male to Male	1.0/2.3 Plug Male Pin	SMA Plug Male Pin	Between Series
Amphenol RF 901-10803	335 V	Jack Male Pin	Brass	Crimp	1	Gold	7.1 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	RP-SMA	Gold		Beryllium Copper	500	-65 ░C	165 °C	Solder	RG-178	Gold	Bulkhead - Front Side Nut										IP67 - Dust Tight Waterproof
Amphenol RF 901-10165		Female Socket Jack	Brass	Crimp	1	Gold	3 GHz	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	Gold		Beryllium Copper Brass	500	-65 ░C	165 °C	Solder	Coaxial Cable	Gold	Bulkhead - Front Side Nut											1 Connector 1 Contact 1 Nut 1 Sleeve 2 Insulators	1.32 mm
Amphenol RF 901-10416		Female Socket Jack	Zinc Die Cast	Solder	1	Gold	2 GHz	50 Ohms	Liquid Crystal Polymer (LCP)	SMA	Gold	Through Hole Right Angle	Beryllium Copper	1000	-65 ░C	165 °C	Solder		Tin														0.25 dB
Amphenol RF 901-10107		Male Pin Plug	Brass	Crimp	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	Gold	Free Hanging (In-Line)	Brass	500	-65 ░C	165 °C	Solder	1.13mm Coaxial Cable	Gold															1 pcs 1 pcs 1 pcs 1 pcs 1 pcs
Amphenol RF 901-10769		Jack Male Pin	Brass	Crimp	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	RP-SMA	Gold		Beryllium Copper	500	-65 ░C	165 °C	Solder		Gold	Bulkhead - Rear Side Nut	0.81 mm
Amphenol RF 901-10151		Female Socket Jack	Stainless Steel	Solder	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	SMA	Silver		Beryllium Copper	500	-65 ░C	165 °C	Solder			Flange
Amphenol RF 901-10777	335 V	Jack Male Pin	Brass	Crimp	1	Gold	6000 MHz	50 Ohms	Polytetrafluoroethylene (PTFE)	RP-SMA	Gold	Free Hanging (In-Line)	Beryllium Copper	500	-65 ░C	165 °C	Solder	1.37mm Coaxial Cable	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.55
		10	$ 8.12
		25	$ 7.61
		50	$ 7.24
		100	$ 6.90
		300	$ 6.38
		500	$ 6.16
		1000	$ 5.86

Description

General part information

901-10 Series

SMA Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
