901-10769
ActiveAmphenol RF

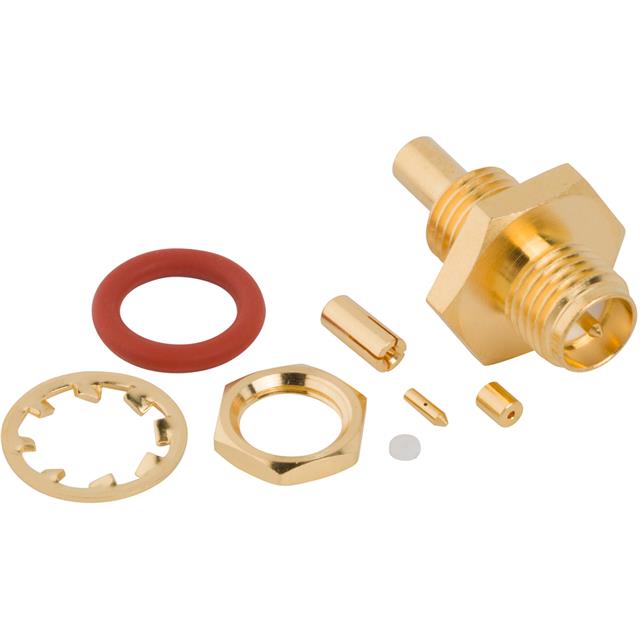

RF / COAXIAL CONNECTOR, SMA RP COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, 0.81MM MICRO
Deep-Dive with AI
Search across all available documentation for this part.
901-10769
ActiveAmphenol RF
RF / COAXIAL CONNECTOR, SMA RP COAXIAL, STRAIGHT BULKHEAD JACK, SOLDER, 50 OHM, 0.81MM MICRO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 901-10769 |
|---|---|
| Body Finish | Gold |
| Body Material | Brass |
| Cable Group [diameter] | 0.81 mm |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | RP-SMA |
| Connector Type | Male Pin, Jack |
| Contact Termination | Solder |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz |
| Housing Color | Gold |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Bulkhead - Rear Side Nut |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 10.40 | |
| 10 | $ 9.22 | |||
| 25 | $ 8.87 | |||
| 50 | $ 8.51 | |||
| 100 | $ 8.32 | |||
Description
General part information
901-10 Series
RP-SMA Connector Jack, Male Pin 50 Ohms Panel Mount Solder
