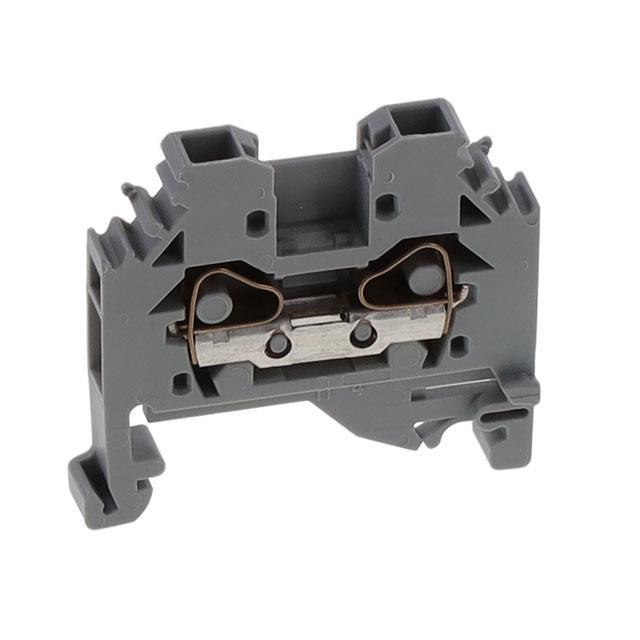

Specification	281-101

Color	Gray
Current - IEC	32 A
Material - Insulation	Polyamide, PA66, Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length (Max)	10 mm
Stripping Length (Min)	9 mm
Terminal Width	6 mm
Termination Style	Push In, Spring
Type	Feed Through
Voltage - IEC	800 V
Wire Gauge or Range - AWG (Max)	28 AWG
Wire Gauge or Range - AWG (Min)	12 AWG
Wire Gauge or Range - mm² (Maximum)	4 mm²
Wire Gauge or Range - mm² (Minimum)	0.08 mm²

281 Series

Part	Material - Insulation	Stripping Length (Max)	Stripping Length (Min)	Voltage - IEC	Wire Gauge or Range - AWG (Max)	Wire Gauge or Range - AWG (Min)	Number of Positions	Color	Terminal Width	Current - IEC	Wire Gauge or Range - mm² (Minimum)	Wire Gauge or Range - mm² (Maximum)	Number of Levels	Type	Termination Style	For Use With/Related Products	Fuse Width	Fuse Length	Disconnect Type	Features
WAGO Corporation 281-901	Nylon 6/6 PA66 Polyamide	10 mm	9 mm	800 V	28 AWG	12 AWG	2	Gray	6 mm	32 A	0.08 mm²	4 mm²	1	Feed Through	Push In Spring
WAGO Corporation 281-631	Nylon 6/6 PA66 Polyamide	10 mm	9 mm	800 V	28 AWG	12 AWG	3	Gray	6 mm	32 A	0.08 mm²	4 mm²	1	Feed Through	Push In Spring
WAGO Corporation 281-311								Gray						End Plate		Terminal Blocks
WAGO Corporation 281-657	Nylon 6/6 PA66 Polyamide	10 mm	9 mm		28 AWG	12 AWG	4	Green Yellow	6 mm		0.08 mm²	4 mm²	1	Earth Ground	Push In Spring
WAGO Corporation 281-324								Gray						End Plate		Terminal Blocks
WAGO Corporation 281-309								Orange						End Plate		Terminal Blocks
WAGO Corporation 281-512/281-501								Gray						Fuse Plug		Din Rail Terminal Blocks
WAGO Corporation 281-607	Nylon 6/6 PA66 Polyamide	10 mm	9 mm		28 AWG	12 AWG	2	Green Yellow	6 mm		0.08 mm²	4 mm²	1	Earth Ground	Push In Spring
WAGO Corporation 281-623	Nylon 6/6 PA66 Polyamide	10 mm	9 mm	800 V	28 AWG	12 AWG	2	Gray	10 mm	10 A	0.08 mm²	4 mm²	1	Disconnect	Push In Spring		0.25 in	1.25 in	Fuse
WAGO Corporation 281-611/281-418	Nylon 6/6 PA66 Polyamide	10 mm	9 mm	800 V	28 AWG	12 AWG	2	Gray	8 mm	10 A	0.08 mm²	4 mm²	1	Disconnect	Push In Spring		20 mm	5 mm	Fuse	Neon Lamp
