281-311

Active

WAGO Corporation

ACCESSORY, FUSED DISCONNECT TERMINAL BLOCKS, INTERMEDIATE PLATE

Search across all available documentation for this part.

Active

WAGO Corporation

ACCESSORY, FUSED DISCONNECT TERMINAL BLOCKS, INTERMEDIATE PLATE

Technical Specifications

Parameters and characteristics for this part

Specification	281-311

Color	Gray
For Use With/Related Products	Terminal Blocks
Type	End Plate

Part	Terminal - Width [y]	Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Current - IEC	Stripping Length [Max]	Stripping Length [Min]	Termination Style	Number of Positions	Material - Insulation	Voltage - IEC	Number of Levels	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	For Use With/Related Products	Fuse Type [x]	Fuse Type [y]	Disconnect Type	Features
WAGO Corporation 281-901	6 mm	Feed Through	28 AWG	12 AWG	32 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²
WAGO Corporation 281-631	6 mm	Feed Through	28 AWG	12 AWG	32 A	10 mm	9 mm	Push In Spring		Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²
WAGO Corporation 281-311		End Plate											Gray			Terminal Blocks
WAGO Corporation 281-657	6 mm	Ground Earth	28 AWG	12 AWG		10 mm	9 mm	Push In Spring	4	Polyamide (PA66) Nylon 6/6		1	Green Yellow	4 mm²	0.08 mm²
WAGO Corporation 281-324		End Plate											Gray			Terminal Blocks
WAGO Corporation 281-309		End Plate														Terminal Blocks
WAGO Corporation 281-512/281-501		Fuse Plug											Gray			Din Rail Terminal Blocks
WAGO Corporation 281-607	6 mm	Ground Earth	28 AWG	12 AWG		10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6		1	Green Yellow	4 mm²	0.08 mm²
WAGO Corporation 281-623	10 mm	Disconnect	28 AWG	12 AWG	10 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²			0.25 in	Fuse
WAGO Corporation 281-611/281-418	8 mm	Disconnect	28 AWG	12 AWG	10 A	10 mm	9 mm	Push In Spring	2	Polyamide (PA66) Nylon 6/6	800 V	1	Gray	4 mm²	0.08 mm²		5 mm	20 mm	Fuse	Neon Lamp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

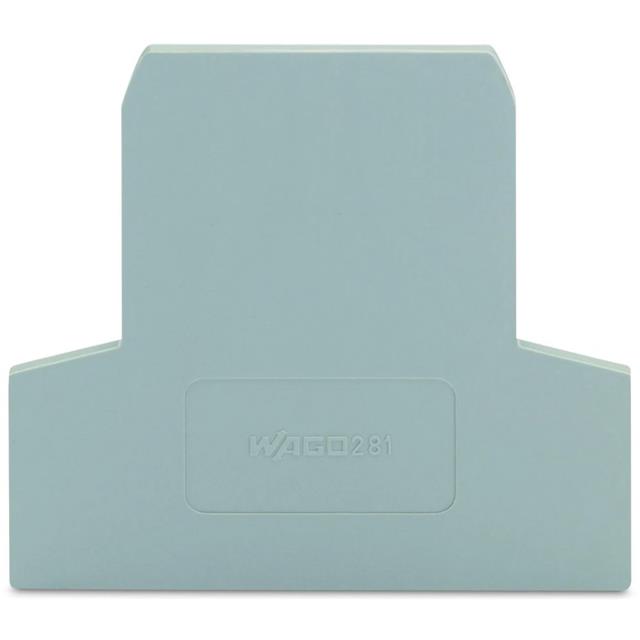

The 281-311 is a 2.5mm gray End and Intermediate Plate suitable for use with the fuse disconnect terminal block.
