281-657
ActiveWAGO Corporation
DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 4 MM², CLAMP, 26 A
Deep-Dive with AI
Search across all available documentation for this part.
281-657
ActiveWAGO Corporation
DIN RAIL MOUNT TERMINAL BLOCK, 4 POSITIONS, 28 AWG, 12 AWG, 4 MM², CLAMP, 26 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 281-657 |
|---|---|
| Color | Green, Yellow |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Stripping Length [Max] | 10 mm |
| Stripping Length [Min] | 9 mm |
| Terminal - Width [y] | 6 mm |
| Termination Style | Push In, Spring |
| Type | Ground, Earth |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 4 mm² |
| Wire Gauge or Range - mm² [Min] | 0.08 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
281 Series

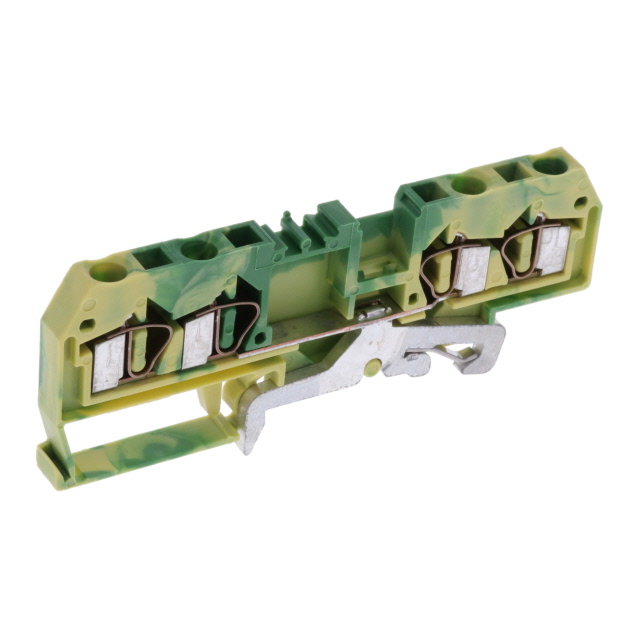

The 281-657 is a 4-conductor green-yellow Ground Terminal Block with center marking and front-entry wiring. This terminal block has polyamide 6.6 insulator and suitable for DIN 35 rail mounting. It accepts 28 to 12AWG wire size.
