281-623
ActiveWAGO Corporation
FUSED TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 4 MM², CLAMP, 10 A
Deep-Dive with AI
Search across all available documentation for this part.
281-623
ActiveWAGO Corporation
FUSED TERMINAL BLOCK, 2 POSITIONS, 28 AWG, 12 AWG, 4 MM², CLAMP, 10 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 281-623 |
|---|---|
| Color | Gray |
| Current - IEC | 10 A |
| Disconnect Type | Fuse |
| Fuse Type [x] | |
| Fuse Type [y] | 0.25 in |
| Material - Insulation | Polyamide (PA66), Nylon 6/6 |
| Number of Levels | 1 |
| Number of Positions | 2 |
| Stripping Length [Max] | 10 mm |
| Stripping Length [Min] | 9 mm |
| Terminal - Width [y] | 10 mm |
| Termination Style | Push In, Spring |
| Type | Disconnect |
| Voltage - IEC | 800 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 4 mm² |
| Wire Gauge or Range - mm² [Min] | 0.08 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
281 Series

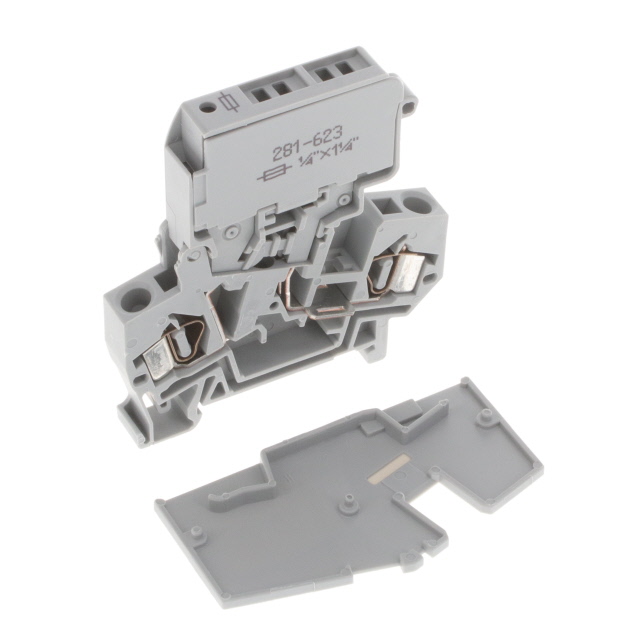

The 281-623 is a gray Fused Terminal Block with pivoting fuse holder, center marking and front-entry marking. This terminal block has polyamide 6.6 insulator and suitable for DIN 35 rail mounting. It accepts 28 to 12AWG wire size.
