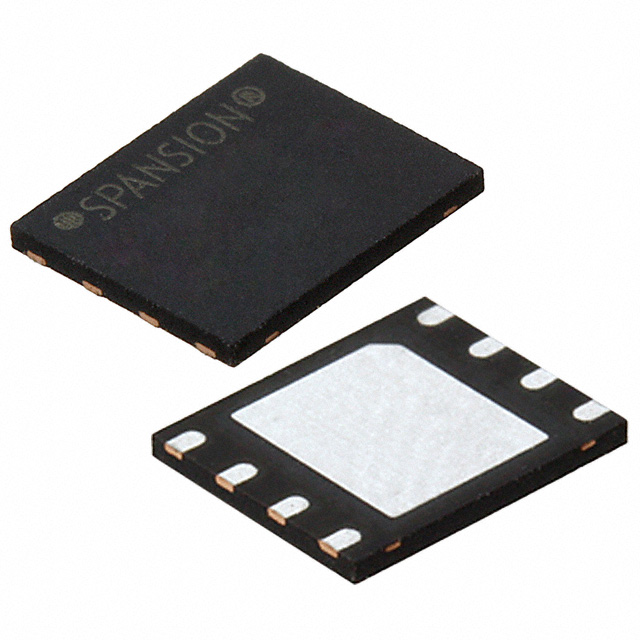

S25FL127SABNFI100

Infineon Technologies

FLASH MEMORY, SERIAL NOR, 128 MBIT, 16M X 8BIT, SPI, WSON, 8 PINS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

S25FL127SABNFI100

Infineon Technologies

FLASH MEMORY, SERIAL NOR, 128 MBIT, 16M X 8BIT, SPI, WSON, 8 PINS

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	S25FL127SABNFI100

Clock Frequency	108 MHz
Memory Format	FLASH
Memory Interface	SPI - Quad I/O
Memory Organization	16M x 8
Memory Size	128 Mb
Memory Type	Non-Volatile
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-WDFN Exposed Pad
Supplier Device Package	8-WSON (5x6)
Technology	FLASH - NOR
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	2.7 V

S25FL127 Series

Part	Memory Type	Memory Size	Technology	Memory Format	Package / Case [y]	Package / Case	Package / Case [x]	Mounting Type	Memory Organization	Voltage - Supply [Min]	Voltage - Supply [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Interface	Clock Frequency	Supplier Device Package
Infineon Technologies S25FL127SABMFI100	Non-Volatile	128 Mb	FLASH - NOR	FLASH	5.3 mm	8-SOIC	0.209 "	Surface Mount	16M x 8	2.7 V	3.6 V	85 °C	-40 °C	SPI - Quad I/O	108 MHz	8-SOIC
Infineon Technologies S25FL127SABMFI101	Non-Volatile	128 Mb	FLASH - NOR	FLASH	5.3 mm	8-SOIC	0.209 "	Surface Mount	16M x 8	2.7 V	3.6 V	85 °C	-40 °C	SPI - Quad I/O	108 MHz	8-SOIC
Infineon Technologies S25FL127SABMFI100	Non-Volatile	128 Mb	FLASH - NOR	FLASH	5.3 mm	8-SOIC	0.209 "	Surface Mount	16M x 8	2.7 V	3.6 V	85 °C	-40 °C	SPI - Quad I/O	108 MHz	8-SOIC
Infineon Technologies S25FL127SABMFV003	Non-Volatile	128 Mb	FLASH - NOR	FLASH	7.5 mm	16-SOIC	0.295 in	Surface Mount	16M x 8	2.7 V	3.6 V	105 °C	-40 °C	SPI - Quad I/O	108 MHz	16-SOIC
Infineon Technologies S25FL127SABBHIS00	Non-Volatile	128 Mb	FLASH - NOR	FLASH		24-TBGA		Surface Mount	16M x 8	2.7 V	3.6 V	85 °C	-40 °C	SPI - Quad I/O	108 MHz	24-BGA
Infineon Technologies S25FL127SABBHIS00	Non-Volatile	128 Mb	FLASH - NOR	FLASH		24-TBGA		Surface Mount	16M x 8	2.7 V	3.6 V	85 °C	-40 °C	SPI - Quad I/O	108 MHz	24-BGA
Infineon Technologies S25FL127SABBHIT00	Non-Volatile	128 Mb	FLASH - NOR	FLASH		24-TBGA		Surface Mount	16M x 8	2.7 V	3.6 V	85 °C	-40 °C	SPI - Quad I/O	108 MHz	24-BGA
Infineon Technologies S25FL127SABMFIZ00	Non-Volatile	128 Mb	FLASH - NOR	FLASH	5.3 mm	8-SOIC	0.209 "	Surface Mount	16M x 8	2.7 V	3.6 V	85 °C	-40 °C	SPI - Quad I/O	108 MHz	8-SOIC
Infineon Technologies S25FL127SABNFI100	Non-Volatile	128 Mb	FLASH - NOR	FLASH		8-WDFN Exposed Pad		Surface Mount	16M x 8	2.7 V	3.6 V	85 °C	-40 °C	SPI - Quad I/O	108 MHz	8-WSON (5x6)
Infineon Technologies S25FL127SABMFI103	Non-Volatile	128 Mb	FLASH - NOR	FLASH	5.3 mm	8-SOIC	0.209 "	Surface Mount	16M x 8	2.7 V	3.6 V	85 °C	-40 °C	SPI - Quad I/O	108 MHz	8-SOIC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.00
		1	$ 4.00
		10	$ 3.55
		10	$ 3.55
		25	$ 3.39
		25	$ 3.39
		40	$ 3.30
		40	$ 3.30
		80	$ 3.19
		80	$ 3.19
		150	$ 4.07
		150	$ 4.07
		230	$ 3.02
		230	$ 3.02
		440	$ 2.92
		440	$ 2.92
		945	$ 2.80
		945	$ 2.80
Newark	Each	1	$ 3.80
		10	$ 3.06
		25	$ 2.97
		50	$ 2.89
		100	$ 2.80
		250	$ 2.68
		500	$ 2.66

Description

General part information

S25FL127 Series

FLASH - NOR Memory IC 128Mbit SPI - Quad I/O 108 MHz 8-WSON (5x6)

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
