General part information

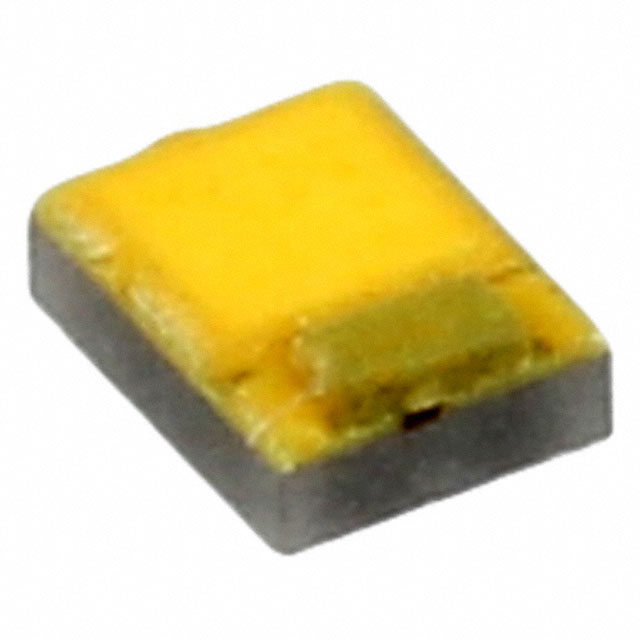

LED Lighting LUXEON Z White, Neutral 4000K 5-Step MacAdam Ellipse 2.8V 500mA 120° 0705 (1713 Metric)
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | LXZ1-4080-5 | LXZ1 Series |
|---|---|---|
| CCT (K) | 4000 K | 2700 - 4000 K |
| Color | Neutral, White | White, Warm, Amber, Red, Lime, Neutral, Red-Orange |
| CRI (Color Rendering Index) | 80 | 80 |
| Current - Max [Max] | 1 A | 1 - 700 A |
| Current - Test | 500 mA | 500 mA |
| Flux @ 85°C, Current - Test | 130 lm | 115 - 130 lm |
| Height - Seated (Max) [Max] | 0.79 mm | 0.66 - 0.96 mm |
| Height - Seated (Max) [Max] | 0.031 in | 0.026 - 0.038 in |
| Lumens/Watt @ Current - Test | 93 lm/W | 39 - 123 lm/W |
| Luminous Flux @ Current/Temperature | - | 43 - 175 lm |
| Mounting Type | Surface Mount | Surface Mount |
| Package / Case | 0705 | 0705 |
| Size / Dimension [x] | 0.067 in | 0.067 in |
| Size / Dimension [x] | 1.7 mm | 1.7 mm |
| Size / Dimension [y] | 0.051 " | 0.051 " |
| Size / Dimension [y] | 1.3 mm | 1.3 mm |
| Supplier Device Package | SMD | SMD, 0705 |
| Temperature - Test | - | 85 °C |
| Thermal Resistance of Package [diameter] | 3 °C/W | 3 °C/W |
| Viewing Angle | 120 ° | 120 - 145 ° |
| Voltage - Forward (Vf) (Typ) | 2.8 V | 2.15 - 2.85 V |
| Wavelength | - | 588 - 619 nm |
| Wavelength | - | 566 nm |
| Wavelength | - | 569 nm |
LED LUXEON WARM WHT 3500K SMD
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Supplier Device Package | CCT (K) | Mounting Type | Flux @ 85°C, Current - Test | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | CRI (Color Rendering Index) | Current - Test | Color | Current - Max [Max] | Thermal Resistance of Package [diameter] | Voltage - Forward (Vf) (Typ) | Package / Case | Lumens/Watt @ Current - Test | Viewing Angle | Wavelength | Luminous Flux @ Current/Temperature | Temperature - Test | Wavelength [Min] | Wavelength [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lumileds LXZ1-3580-3 | 0.051 " | 0.067 in | 1.7 mm | 1.3 mm | SMD | 3500 K | Surface Mount | 124 lm | 0.79 mm | 0.031 in | 80 | 500 mA | Warm, White | 1 A | 3 °C/W | 2.8 V | 0705 | 89 lm/W | 120 ° | |||||
Lumileds LXZ1-PL01-0064 | 0.051 " | 0.067 in | 1.7 mm | 1.3 mm | SMD | Surface Mount | 0.96 mm | 0.038 in | 500 mA | Amber | 700 mA | 2.15 V | 0705 | 48 lm/W | 145 ° | 588 nm | ||||||||
Lumileds LXZ1-PD02 | 0.051 " | 0.067 in | 1.7 mm | 1.3 mm | 0705 | Surface Mount | 0.96 mm | 0.038 in | 500 mA | Red | 1 A | 2.2 V | 0705 | 39 lm/W | 145 ° | 43 lm | 85 °C | |||||||
Lumileds LXZ1-PX01 | 0.051 " | 0.067 in | 1.7 mm | 1.3 mm | SMD | Surface Mount | 0.66 mm | 0.026 in | 500 mA | Lime | 700 mA | 2.85 V | 0705 | 123 lm/W | 125 ° | 175 lm | 85 °C | 566 nm | 569 nm | |||||
Lumileds LXZ1-2780-5 | 0.051 " | 0.067 in | 1.7 mm | 1.3 mm | SMD | 2700 K | Surface Mount | 115 lm | 0.79 mm | 0.031 in | 80 | 500 mA | Warm, White | 1 A | 3 °C/W | 2.8 V | 0705 | 82 lm/W | 120 ° | |||||
Lumileds LXZ1-4080-5 | 0.051 " | 0.067 in | 1.7 mm | 1.3 mm | SMD | 4000 K | Surface Mount | 130 lm | 0.79 mm | 0.031 in | 80 | 500 mA | Neutral, White | 1 A | 3 °C/W | 2.8 V | 0705 | 93 lm/W | 120 ° | |||||
Lumileds LXZ1-PH02 | 0.051 " | 0.067 in | 1.7 mm | 1.3 mm | 0705 | Surface Mount | 0.96 mm | 0.038 in | 500 mA | Red-Orange | 1 A | 2.2 V | 0705 | 42 lm/W | 145 ° | 619 nm | 47 lm | 85 °C |
