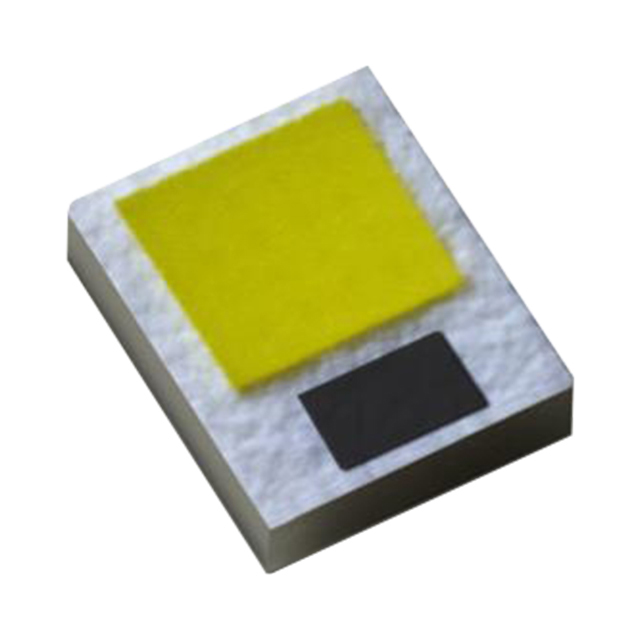

LXZ1-PX01

Active

Lumileds

500MA 568NM GREEN-YELLOW 125° 2.85V SMD,1.7X1.3MM LED INDICATION - DISCRETE ROHS

Search across all available documentation for this part.

Active

Lumileds

500MA 568NM GREEN-YELLOW 125° 2.85V SMD,1.7X1.3MM LED INDICATION - DISCRETE ROHS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Broad selection spanning 440-670nm, including a unique Lime color

2.2mm² footprint enables unique arrangements in space constrained applications

4-up RGBW pixel in 9.5mm² - four colors in less area than one regular high power color emitter

Technical documentation and resources

Specification	LXZ1-PX01	LXZ1 Series

CCT (K)	-	2700 - 4000 K
Color	Lime	White, Warm, Amber, Red, Lime, Neutral, Red-Orange
CRI (Color Rendering Index)	-	80
Current - Max [Max]	700 mA	1 - 700 A
Current - Test	500 mA	500 mA
Flux @ 85°C, Current - Test	-	115 - 130 lm
Height - Seated (Max) [Max]	0.66 mm	0.66 - 0.96 mm
Height - Seated (Max) [Max]	0.026 in	0.026 - 0.038 in
Lumens/Watt @ Current - Test	123 lm/W	39 - 123 lm/W
Luminous Flux @ Current/Temperature	175 lm	43 - 175 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	0705	0705
Size / Dimension [x]	0.067 in	0.067 in
Size / Dimension [x]	1.7 mm	1.7 mm
Size / Dimension [y]	0.051 "	0.051 "
Size / Dimension [y]	1.3 mm	1.3 mm
Supplier Device Package	SMD	SMD, 0705
Temperature - Test	85 °C	85 °C
Thermal Resistance of Package	-	3 °C/W
Viewing Angle	125 °	120 - 145 °
Voltage - Forward (Vf) (Typ)	2.85 V	2.15 - 2.85 V
Wavelength	-	588 - 619 nm
Wavelength [Max]	569 nm	569 nm
Wavelength [Min]	566 nm	566 nm

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	CCT (K)	Mounting Type	Flux @ 85°C, Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CRI (Color Rendering Index)	Current - Test	Color	Current - Max [Max]	Thermal Resistance of Package [diameter]	Voltage - Forward (Vf) (Typ)	Package / Case	Lumens/Watt @ Current - Test	Viewing Angle	Wavelength	Luminous Flux @ Current/Temperature	Temperature - Test	Wavelength [Min]	Wavelength [Max]
Lumileds LXZ1-3580-3	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD	3500 K	Surface Mount	124 lm	0.79 mm	0.031 in	80	500 mA	Warm, White	1 A	3 °C/W	2.8 V	0705	89 lm/W	120 °
Lumileds LXZ1-PL01-0064	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD		Surface Mount		0.96 mm	0.038 in		500 mA	Amber	700 mA		2.15 V	0705	48 lm/W	145 °	588 nm
Lumileds LXZ1-PD02	0.051 "	0.067 in	1.7 mm	1.3 mm	0705		Surface Mount		0.96 mm	0.038 in		500 mA	Red	1 A		2.2 V	0705	39 lm/W	145 °		43 lm	85 °C
Lumileds LXZ1-PX01	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD		Surface Mount		0.66 mm	0.026 in		500 mA	Lime	700 mA		2.85 V	0705	123 lm/W	125 °		175 lm	85 °C	566 nm	569 nm
Lumileds LXZ1-2780-5	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD	2700 K	Surface Mount	115 lm	0.79 mm	0.031 in	80	500 mA	Warm, White	1 A	3 °C/W	2.8 V	0705	82 lm/W	120 °
Lumileds LXZ1-4080-5	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD	4000 K	Surface Mount	130 lm	0.79 mm	0.031 in	80	500 mA	Neutral, White	1 A	3 °C/W	2.8 V	0705	93 lm/W	120 °
Lumileds LXZ1-PH02	0.051 "	0.067 in	1.7 mm	1.3 mm	0705		Surface Mount		0.96 mm	0.038 in		500 mA	Red-Orange	1 A		2.2 V	0705	42 lm/W	145 °	619 nm	47 lm	85 °C
