LXZ1-3580-3

Active

Lumileds

LED LUXEON WARM WHT 3500K SMD

Search across all available documentation for this part.

Active

Lumileds

LED LUXEON WARM WHT 3500K SMD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

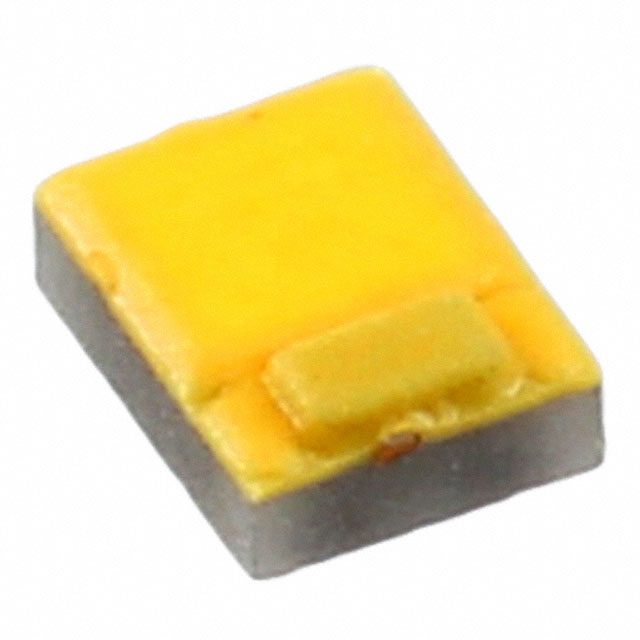

LED Lighting LUXEON Z White, Warm 3500K 3-Step MacAdam Ellipse 2.8V 500mA 120° 0705 (1713 Metric)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	LXZ1-3580-3	LXZ1 Series

CCT (K)	3500 K	2700 - 4000 K
Color	White, Warm	White, Warm, Amber, Red, Lime, Neutral, Red-Orange
CRI (Color Rendering Index)	80	80
Current - Max [Max]	1 A	1 - 700 A
Current - Test	500 mA	500 mA
Flux @ 85°C, Current - Test	124 lm	115 - 130 lm
Height - Seated (Max) [Max]	0.79 mm	0.66 - 0.96 mm
Height - Seated (Max) [Max]	0.031 in	0.026 - 0.038 in
Lumens/Watt @ Current - Test	89 lm/W	39 - 123 lm/W
Luminous Flux @ Current/Temperature	-	43 - 175 lm
Mounting Type	Surface Mount	Surface Mount
Package / Case	0705	0705
Size / Dimension [x]	0.067 in	0.067 in
Size / Dimension [x]	1.7 mm	1.7 mm
Size / Dimension [y]	0.051 "	0.051 "
Size / Dimension [y]	1.3 mm	1.3 mm
Supplier Device Package	SMD	SMD, 0705
Temperature - Test	-	85 °C
Thermal Resistance of Package [diameter]	3 °C/W	3 °C/W
Viewing Angle	120 °	120 - 145 °
Voltage - Forward (Vf) (Typ)	2.8 V	2.15 - 2.85 V
Wavelength	-	588 - 619 nm
Wavelength	-	566 nm
Wavelength	-	569 nm

LED LUXEON WARM WHT 3500K SMD

Part	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Supplier Device Package	CCT (K)	Mounting Type	Flux @ 85°C, Current - Test	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CRI (Color Rendering Index)	Current - Test	Color	Current - Max [Max]	Thermal Resistance of Package [diameter]	Voltage - Forward (Vf) (Typ)	Package / Case	Lumens/Watt @ Current - Test	Viewing Angle	Wavelength	Luminous Flux @ Current/Temperature	Temperature - Test	Wavelength [Min]	Wavelength [Max]
Lumileds LXZ1-3580-3	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD	3500 K	Surface Mount	124 lm	0.79 mm	0.031 in	80	500 mA	Warm, White	1 A	3 °C/W	2.8 V	0705	89 lm/W	120 °
Lumileds LXZ1-PL01-0064	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD		Surface Mount		0.96 mm	0.038 in		500 mA	Amber	700 mA		2.15 V	0705	48 lm/W	145 °	588 nm
Lumileds LXZ1-PD02	0.051 "	0.067 in	1.7 mm	1.3 mm	0705		Surface Mount		0.96 mm	0.038 in		500 mA	Red	1 A		2.2 V	0705	39 lm/W	145 °		43 lm	85 °C
Lumileds LXZ1-PX01	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD		Surface Mount		0.66 mm	0.026 in		500 mA	Lime	700 mA		2.85 V	0705	123 lm/W	125 °		175 lm	85 °C	566 nm	569 nm
Lumileds LXZ1-2780-5	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD	2700 K	Surface Mount	115 lm	0.79 mm	0.031 in	80	500 mA	Warm, White	1 A	3 °C/W	2.8 V	0705	82 lm/W	120 °
Lumileds LXZ1-4080-5	0.051 "	0.067 in	1.7 mm	1.3 mm	SMD	4000 K	Surface Mount	130 lm	0.79 mm	0.031 in	80	500 mA	Neutral, White	1 A	3 °C/W	2.8 V	0705	93 lm/W	120 °
Lumileds LXZ1-PH02	0.051 "	0.067 in	1.7 mm	1.3 mm	0705		Surface Mount		0.96 mm	0.038 in		500 mA	Red-Orange	1 A		2.2 V	0705	42 lm/W	145 °	619 nm	47 lm	85 °C
