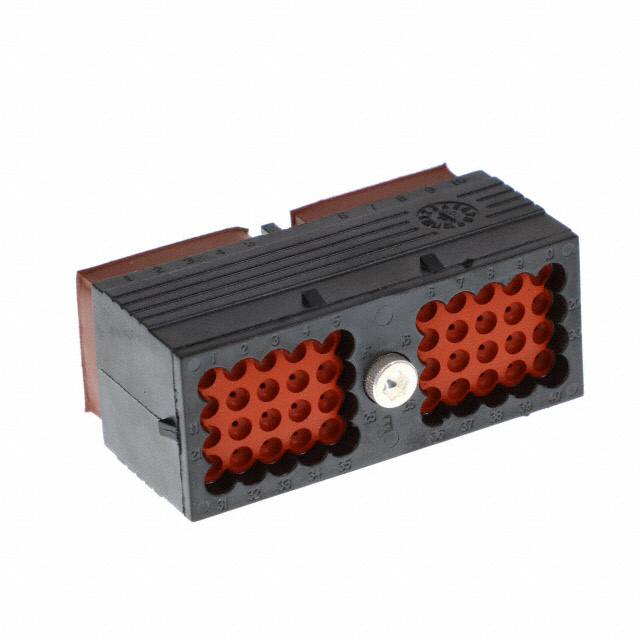

DRC16-40SE

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 40POS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSG 40POS

Technical Specifications

Parameters and characteristics for this part

Specification	DRC16-40SE

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Features	IP68, Cap (Cover), Dust, Reduced Wire Seals
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	40
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Contact Type	Contact Termination	Number of Rows	Color	Features	Connector Type	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Note
TE Connectivity Raychem Cable Protection DRC16-70SAE	Polyamide (PA66) Nylon 6/6 Glass Filled	-55 °C	125 °C	5.49 mm	0.216 in	Female Socket	Crimp	5	Black	Sealed	Plug	70	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection DRC16-24SA	Plastic	-55 °C	125 °C	5.49 mm	0.216 in	Female Socket	Crimp		Black	IP68	Plug	24	Free Hanging (In-Line)	5.5 mm	0.217 in
TE Connectivity Raychem Cable Protection DRC16-70SA-P013	Plastic	-55 °C	125 °C	5.49 mm	0.216 in	Female Socket	Crimp	5	Black	IP68	Plug	70	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection DRC16-40SE	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C			Female Socket	Crimp		Black	Cap (Cover) Dust IP68 Reduced Wire Seals	Plug	40	Free Hanging (In-Line)			Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Rectangular Connectors - Housings Plug Black
