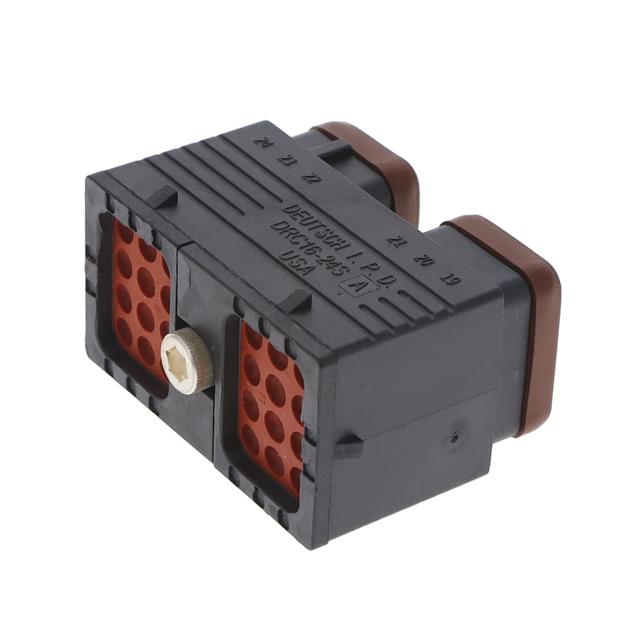

DRC16-24SA
ActiveTE Connectivity Raychem Cable Protection
24P PLUG ASM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DRC16-24SA
ActiveTE Connectivity Raychem Cable Protection
24P PLUG ASM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DRC16-24SA |
|---|---|
| Color | Black |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Features | IP68 |
| Insulation Material | Plastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 24 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 5.5 mm |
| Pitch [x] | 0.217 in |
| Row Spacing | 5.49 mm |
| Row Spacing | 0.216 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.78 | |
| 10 | $ 17.32 | |||
| 25 | $ 16.57 | |||
| 50 | $ 16.04 | |||
| 100 | $ 15.50 | |||
| 250 | $ 14.65 | |||
| 500 | $ 14.22 | |||
Description
General part information
DRC16 Series
24 Rectangular Connectors - Housings Plug Black 0.217" (5.50mm)
