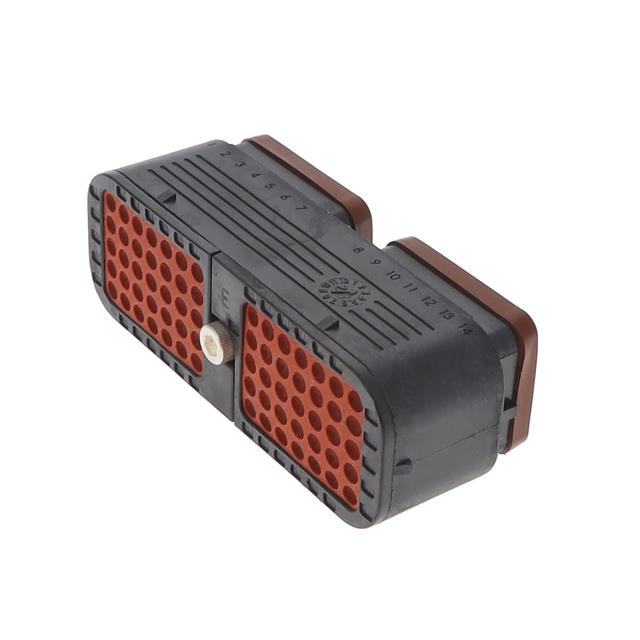

DRC16-70SAE

Active

TE Connectivity Raychem Cable Protection

70P PLUG ASM

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

70P PLUG ASM

Technical Specifications

Parameters and characteristics for this part

Specification	DRC16-70SAE

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Features	Sealed
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	70
Number of Rows	5
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Row Spacing	5.49 mm
Row Spacing	0.216 in

Part	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing	Row Spacing	Contact Type	Contact Termination	Number of Rows	Color	Features	Connector Type	Number of Positions	Mounting Type	Pitch [x]	Pitch [x]	Note
TE Connectivity Raychem Cable Protection DRC16-70SAE	Polyamide (PA66) Nylon 6/6 Glass Filled	-55 °C	125 °C	5.49 mm	0.216 in	Female Socket	Crimp	5	Black	Sealed	Plug	70	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection DRC16-24SA	Plastic	-55 °C	125 °C	5.49 mm	0.216 in	Female Socket	Crimp		Black	IP68	Plug	24	Free Hanging (In-Line)	5.5 mm	0.217 in
TE Connectivity Raychem Cable Protection DRC16-70SA-P013	Plastic	-55 °C	125 °C	5.49 mm	0.216 in	Female Socket	Crimp	5	Black	IP68	Plug	70	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection DRC16-40SE	Polyphenylene Sulfide (PPS) Glass Filled	-55 °C	125 °C			Female Socket	Crimp		Black	Cap (Cover) Dust IP68 Reduced Wire Seals	Plug	40	Free Hanging (In-Line)			Contacts Not Included

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

70 Rectangular Connectors - Housings Plug Black 0.216" (5.49mm)
