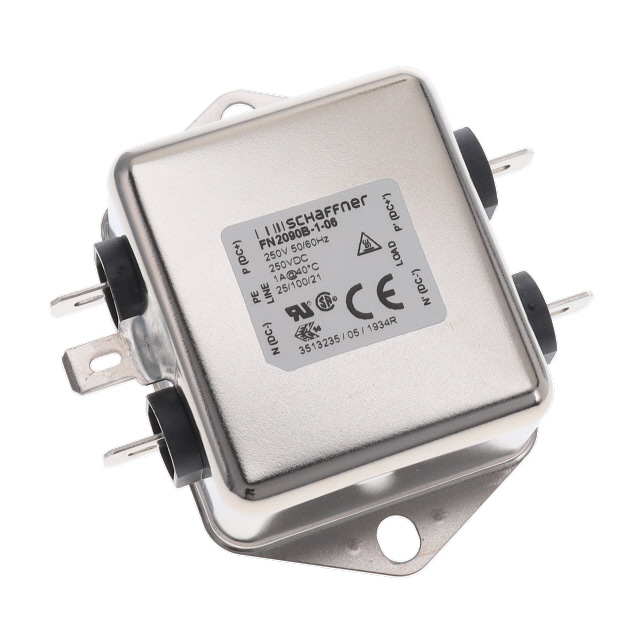

FN2090B-1-06

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 1A CHASSIS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VAC 1A CHASSIS

Technical Specifications

Parameters and characteristics for this part

Part	Applications	Operating Temperature [custom]	Configuration	Voltage - Rated AC	Mounting Type	Current	Approval Agency	Frequency - Operating	Termination Style	Inductance	Voltage - Rated DC	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]
TE Connectivity Raychem Cable Protection FN2090NN-6-06	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	6 A	CE CSA ENEC UR	400 Hz	Quick Connect	8 mH	250 V	Single Phase
TE Connectivity Raychem Cable Protection FN2090B-1-06	Medical		Two Stage	250 V	Chassis Mount	1 A	CSA ENEC UL		Quick Connect	20 mH		Single Phase	100 °C	-20 C	60 Hz	50 Hz
TE Connectivity Raychem Cable Protection FN2090NN-3-06	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	3 A	CE CSA ENEC UR	400 Hz	Quick Connect	14 mH	250 V	Single Phase
TE Connectivity Raychem Cable Protection FN2090LL-20-08	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	20 A	CE CSA ENEC UR	400 Hz	Threaded Post (M4)	2.7 mH	250 V	Single Phase
TE Connectivity Raychem Cable Protection FN2090NN-4-06	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	4 A	CE CSA ENEC UR	400 Hz	Quick Connect	14 mH	250 V	Single Phase
TE Connectivity Raychem Cable Protection FN2090NN-8-06	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	8 A	CE CSA ENEC UR	400 Hz	Quick Connect	8 mH	250 V	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 A Single Phase Filter, FASTON Input, FASTON Output, 250 VAC, Schaffner FN2090, Single Phase Filters
