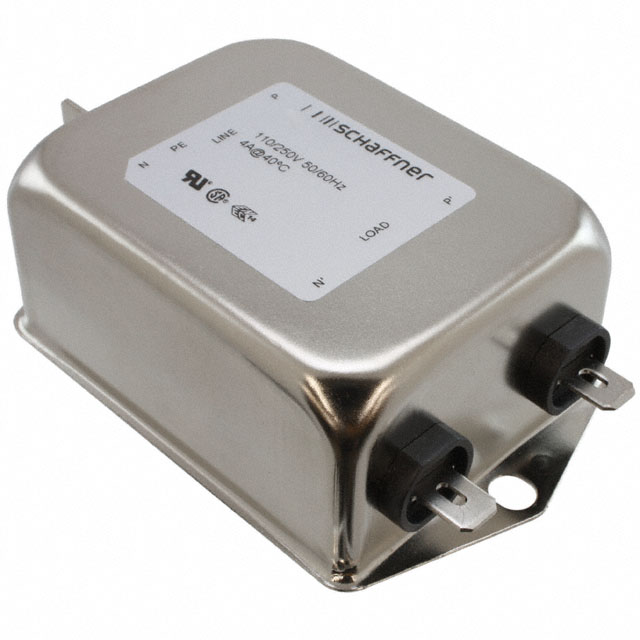

FN2090NN-3-06

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VDC/VAC 3A CHASS

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

LINE FILTER 250VDC/VAC 3A CHASS

Technical Specifications

Parameters and characteristics for this part

Specification	FN2090NN-3-06

Applications	General Purpose
Approval Agency	UR, CSA, ENEC, CE
Configuration	Two Stage
Current	3 A
Filter Type	Single Phase
Frequency - Operating	400 Hz
Inductance	14 mH
Mounting Type	Chassis Mount
Operating Temperature [custom]	100 °C, -25 °C
Termination Style	Quick Connect
Voltage - Rated AC	250 V
Voltage - Rated DC	250 V

Part	Applications	Operating Temperature [custom]	Configuration	Voltage - Rated AC	Mounting Type	Current	Approval Agency	Frequency - Operating	Termination Style	Inductance	Voltage - Rated DC	Filter Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Operating [Max]	Frequency - Operating [Min]
TE Connectivity Raychem Cable Protection FN2090NN-6-06	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	6 A	CE CSA ENEC UR	400 Hz	Quick Connect	8 mH	250 V	Single Phase
TE Connectivity Raychem Cable Protection FN2090B-1-06	Medical		Two Stage	250 V	Chassis Mount	1 A	CSA ENEC UL		Quick Connect	20 mH		Single Phase	100 °C	-20 C	60 Hz	50 Hz
TE Connectivity Raychem Cable Protection FN2090NN-3-06	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	3 A	CE CSA ENEC UR	400 Hz	Quick Connect	14 mH	250 V	Single Phase
TE Connectivity Raychem Cable Protection FN2090LL-20-08	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	20 A	CE CSA ENEC UR	400 Hz	Threaded Post (M4)	2.7 mH	250 V	Single Phase
TE Connectivity Raychem Cable Protection FN2090NN-4-06	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	4 A	CE CSA ENEC UR	400 Hz	Quick Connect	14 mH	250 V	Single Phase
TE Connectivity Raychem Cable Protection FN2090NN-8-06	General Purpose	-25 °C 100 °C	Two Stage	250 V	Chassis Mount	8 A	CE CSA ENEC UR	400 Hz	Quick Connect	8 mH	250 V	Single Phase

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Single Phase EMC/EMI Line Filter 3 A 250V 250V DC ~ 400Hz Two Stage Quick Connect
