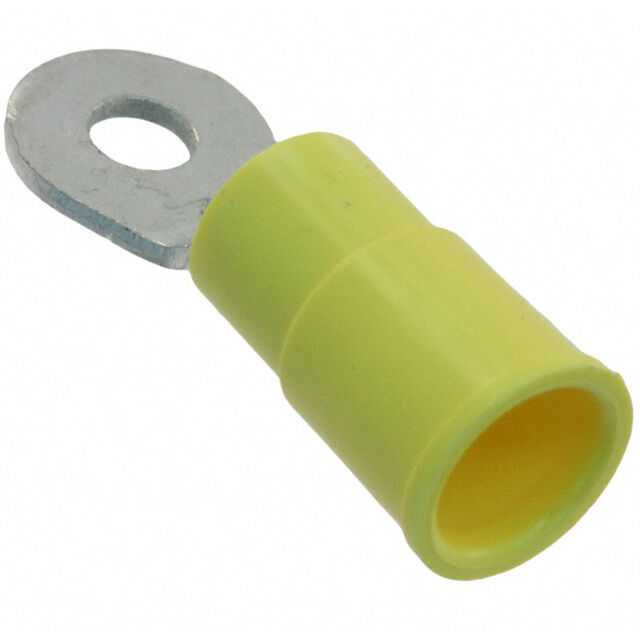

MV10-6RX-BOTTLE

Active

CONN RING CIRC 10-12AWG #6 50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMV10-xxRxx Datasheet

MV10-6RX-BOTTLE

Active

CONN RING CIRC 10-12AWG #6 50PC

Deep-Dive with AI

DocumentsMV10-xxRxx Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MV10-6RX-BOTTLE	MV10 Series

Color	Yellow	Yellow
Contact Finish	-	Tin
Contact Material	-	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated, Fully Insulated
Insulation Diameter	0.25 "	0.25 "
Insulation Diameter	6.35 mm	6.35 mm
Length - Overall	26.16 mm	26.16 - 30.23 mm
Length - Overall	-	31.5 - 38.1 mm
Length - Overall	-	1.19 in
Length - Overall [x]	1.03 in	1.03 - 1.5 in
Length - Ring Center to Termination	-	7.11 - 7.37 mm
Length - Ring Center to Termination	-	0.28 - 0.29 in
Length - Ring Center to Termination	-	0.44 in
Length - Ring Center to Termination	-	11.18 mm
Length - Termination	-	13.97 mm
Length - Termination	-	0.55 in
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	6 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud, 1/2 Stud
Terminal Type	Circular	Circular, Multi-Stud, Snap, Spring, Standard, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	0.04 in	0.04 in
Thickness	1.02 mm	1.02 mm
Width - Outer Edges	-	0.28 - 0.75 in
Width - Outer Edges	-	9.91 - 13.46 mm
Width - Outer Edges	-	0.39 in
Width - Outer Edges	-	7.11 - 19.05 mm
Width - Outer Edges [x]	9.65 mm	9.65 mm
Width - Outer Edges [x]	0.38 "	0.38 "
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

MV10 Series

CONN RING CIRC 10-12AWG 50PC

Part	Termination	Features	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges	Insulation	Terminal Type	Contact Material	Stud/Tab Size	Color	Material - Insulation	Insulation Diameter	Insulation Diameter	Width - Outer Edges	Length - Overall	Length - Overall	Length - Termination	Length - Termination	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges [y]	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]
3M MV10-516R/SX-BOTTLE	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.26 in	32 mm	0.53 in	13.46 mm	Insulated	Circular	Copper, ETP	0.3125 Stud	Yellow	Vinyl	0.25 "	6.35 mm
3M MV10-610RX-BOTTLE	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin				9.91 mm	Insulated	Multi-Stud	Copper, ETP	6 Stud, 8 Stud, 10 Stud	Yellow	Vinyl	0.25 "	6.35 mm	0.39 in	30.23 mm	1.19 in
3M MV10-10FLX	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Snap, Spring	Copper, ETP	10 Stud	Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.11 mm	0.28 in	8.13 mm
3M MV10-8FLX-BOTTLE	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Snap, Spring	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.11 mm	0.28 in	8.13 mm	8 Stud
3M MV10-6FBK	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Standard	Copper, ETP	6 Stud	Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.37 mm	0.29 in	8.13 mm
3M MV10-8FLK	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Snap, Spring	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.11 mm	0.28 in	8.13 mm	8 Stud
3M MV10-14FLX	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.24 in	31.5 mm	0.43 "		Insulated	Snap, Spring	Copper, ETP	0.25 Stud	Yellow	Vinyl	0.25 "	6.35 mm				13.97 mm	0.55 in			10.92 mm		0.44 in	11.18 mm
3M MV10-8RK	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in				Insulated	Circular	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm							8 Stud			9.65 mm	0.38 "
3M MV10-12RK	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.5 in	38.1 mm	0.75 in		Insulated	Circular	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm								19.05 mm	1/2 Stud
3M MV10-6RX-BOTTLE	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)		1.03 in				Insulated	Circular		6 Stud	Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm										9.65 mm	0.38 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 69.98
		10	$ 54.31
		25	$ 49.35
		50	$ 46.00
		100	$ 42.97
		250	$ 39.40

Description

General part information

MV10 Series

Ring Terminal Connector 6 Stud Circular 10-12 AWG Crimp

Documents

Technical documentation and resources

MV10-xxRxx Datasheet

Datasheet
