MV10-10FLX

Active

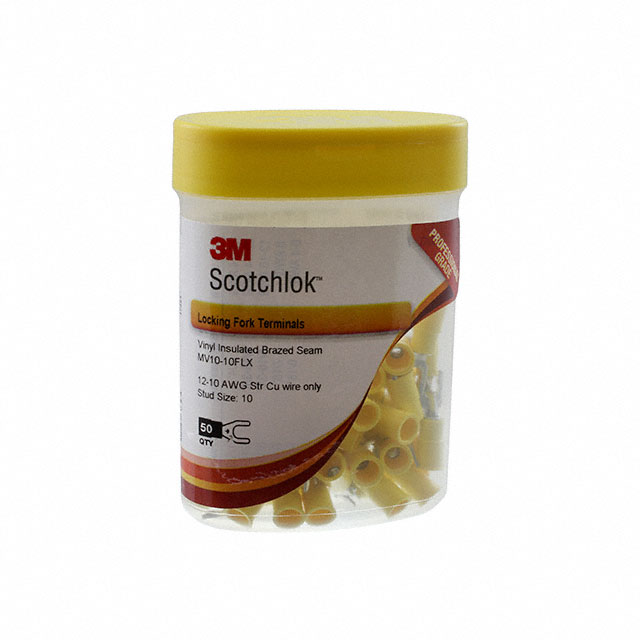

FORK / SPADE TONGUE TERMINAL, SCOTCHLOK SERIES, 12 AWG, 10 AWG, M5, #10

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN

MV10-10FLX

Active

FORK / SPADE TONGUE TERMINAL, SCOTCHLOK SERIES, 12 AWG, 10 AWG, M5, #10

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 49.81
		10	$ 38.56
		25	$ 35.00
		50	$ 32.59
		100	$ 30.41
		250	$ 27.85
Newark	Pack of 50	1	$ 63.23
		10	$ 56.87
		25	$ 54.76
		50	$ 51.43
		100	$ 49.92
		250	$ 46.89
		500	$ 45.38

Description

General part information

MV10 Series

Yellow 10 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

Datasheet

Manufacturer Catalogue EN

Datasheet

Specification	MV10-10FLX	MV10 Series

Color	Yellow	Yellow
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated, Fully Insulated
Insulation Diameter	0.25 "	0.25 "
Insulation Diameter	6.35 mm	6.35 mm
Length - Overall	26.16 mm	26.16 - 30.23 mm
Length - Overall	-	31.5 - 38.1 mm
Length - Overall	-	1.19 in
Length - Overall [x]	1.03 in	1.03 - 1.5 in
Length - Ring Center to Termination	7.11 mm	7.11 - 7.37 mm
Length - Ring Center to Termination	0.28 in	0.28 - 0.29 in
Length - Ring Center to Termination	-	0.44 in
Length - Ring Center to Termination	-	11.18 mm
Length - Termination	13.97 mm	13.97 mm
Length - Termination	0.55 in	0.55 in
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	10 Stud	0.25 - 10 Stud
Stud/Tab Size	-	8 Stud, 1/2 Stud
Terminal Type	Snap, Spring	Circular, Multi-Stud, Snap, Spring, Standard, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.04 in
Thickness	-	1.02 mm
Width - Outer Edges	-	9.91 - 13.46 mm
Width - Outer Edges	-	0.39 in
Width - Outer Edges	-	9.65 mm
Width - Outer Edges	-	0.38 "
Width - Outer Edges [y]	8.13 mm	7.11 - 19.05 mm
Width - Outer Edges [y]	0.32 in	0.28 - 0.75 in
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

Part

Termination

Features

Thickness

Wire Gauge [Max]

Wire Gauge [Min]

Mounting Type

Contact Finish

Length - Overall [x]

Width - Outer Edges [y]

Width - Outer Edges

Insulation

Terminal Type

Contact Material

Stud/Tab Size

Color

Material - Insulation

Insulation Diameter

Width - Outer Edges

Length - Overall

Length - Termination

Length - Ring Center to Termination

Width - Outer Edges [y]

Stud/Tab Size

Length - Ring Center to Termination [x]

Width - Outer Edges [x]

Number of Wire Entries

MV10-516R/SX-BOTTLE

Crimp

Brazed Seam

0.04 in

1.02 mm

12 AWG

10 AWG

Free Hanging (In-Line)

Tin

1.26 in

32 mm

0.53 in

13.46 mm

Insulated

Circular

Copper, ETP

0.3125 Stud

Yellow

Vinyl

0.25 "

6.35 mm

MV10-610RX-BOTTLE

Crimp

Brazed Seam

0.04 in

1.02 mm

12 AWG

10 AWG

Free Hanging (In-Line)

Tin

9.91 mm

Insulated

Multi-Stud

Copper, ETP

6 Stud, 8 Stud, 10 Stud

Yellow

Vinyl

0.25 "

6.35 mm

0.39 in

30.23 mm

1.19 in

MV10-10FLX

Crimp

Brazed Seam

12 AWG

10 AWG

Free Hanging (In-Line)

Tin

1.03 in

0.32 in

Insulated

Snap, Spring

Copper, ETP

10 Stud

Yellow

Vinyl

0.25 "

6.35 mm

26.16 mm

13.97 mm

0.55 in

7.11 mm

0.28 in

8.13 mm

MV10-8FLX-BOTTLE

Crimp

Brazed Seam

12 AWG

10 AWG

Free Hanging (In-Line)

Tin

1.03 in

0.32 in

Insulated

Snap, Spring

Copper, ETP

Yellow

Vinyl

0.25 "

6.35 mm

26.16 mm

13.97 mm

0.55 in

7.11 mm

0.28 in

8.13 mm

8 Stud

MV10-6FBK

Crimp

Brazed Seam

12 AWG

10 AWG

Free Hanging (In-Line)

Tin

1.03 in

0.32 in

Insulated

Standard

Copper, ETP

6 Stud

Yellow

Vinyl

0.25 "

6.35 mm

26.16 mm

13.97 mm

0.55 in

7.37 mm

0.29 in

8.13 mm

MV10-8FLK

Crimp

Brazed Seam

12 AWG

10 AWG

Free Hanging (In-Line)

Tin

1.03 in

0.32 in

Insulated

Snap, Spring

Copper, ETP

Yellow

Vinyl

0.25 "

6.35 mm

26.16 mm

13.97 mm

0.55 in

7.11 mm

0.28 in

8.13 mm

8 Stud

MV10-14FLX

Crimp

Brazed Seam

12 AWG

10 AWG

Free Hanging (In-Line)

Tin

1.24 in

31.5 mm

0.43 "

Insulated

Snap, Spring

Copper, ETP

0.25 Stud

Yellow

Vinyl

0.25 "

6.35 mm

13.97 mm

0.55 in

10.92 mm

0.44 in

11.18 mm

MV10-8RK

Crimp

Brazed Seam

0.04 in

1.02 mm

12 AWG

10 AWG

Free Hanging (In-Line)

Tin

1.03 in

Insulated

Circular

Copper, ETP

Yellow

Vinyl

0.25 "

6.35 mm

26.16 mm

8 Stud

9.65 mm

0.38 "

MV10-12RK

Crimp

Brazed Seam

0.04 in

1.02 mm

12 AWG

10 AWG

Free Hanging (In-Line)

Tin

1.5 in

38.1 mm

0.75 in

Insulated

Circular

Copper, ETP

Yellow

Vinyl

0.25 "

6.35 mm

19.05 mm

1/2 Stud

MV10-6RX-BOTTLE

Crimp

Brazed Seam

0.04 in

1.02 mm

12 AWG

10 AWG

Free Hanging (In-Line)

1.03 in

Insulated

Circular

6 Stud

Yellow

Vinyl

0.25 "

6.35 mm

26.16 mm

9.65 mm

0.38 "

Part	Termination	Features	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges	Insulation	Terminal Type	Contact Material	Stud/Tab Size	Color	Material - Insulation	Insulation Diameter	Insulation Diameter	Width - Outer Edges	Length - Overall	Length - Overall	Length - Termination	Length - Termination	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges [y]	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]
3M MV10-516R/SX-BOTTLE	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.26 in	32 mm	0.53 in	13.46 mm	Insulated	Circular	Copper, ETP	0.3125 Stud	Yellow	Vinyl	0.25 "	6.35 mm
3M MV10-610RX-BOTTLE	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin				9.91 mm	Insulated	Multi-Stud	Copper, ETP	6 Stud, 8 Stud, 10 Stud	Yellow	Vinyl	0.25 "	6.35 mm	0.39 in	30.23 mm	1.19 in
3M MV10-10FLX	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Snap, Spring	Copper, ETP	10 Stud	Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.11 mm	0.28 in	8.13 mm
3M MV10-8FLX-BOTTLE	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Snap, Spring	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.11 mm	0.28 in	8.13 mm	8 Stud
3M MV10-6FBK	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Standard	Copper, ETP	6 Stud	Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.37 mm	0.29 in	8.13 mm
3M MV10-8FLK	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Snap, Spring	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.11 mm	0.28 in	8.13 mm	8 Stud
3M MV10-14FLX	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.24 in	31.5 mm	0.43 "		Insulated	Snap, Spring	Copper, ETP	0.25 Stud	Yellow	Vinyl	0.25 "	6.35 mm				13.97 mm	0.55 in			10.92 mm		0.44 in	11.18 mm
3M MV10-8RK	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in				Insulated	Circular	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm							8 Stud			9.65 mm	0.38 "
3M MV10-12RK	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.5 in	38.1 mm	0.75 in		Insulated	Circular	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm								19.05 mm	1/2 Stud
3M MV10-6RX-BOTTLE	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)		1.03 in				Insulated	Circular		6 Stud	Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm										9.65 mm	0.38 "
