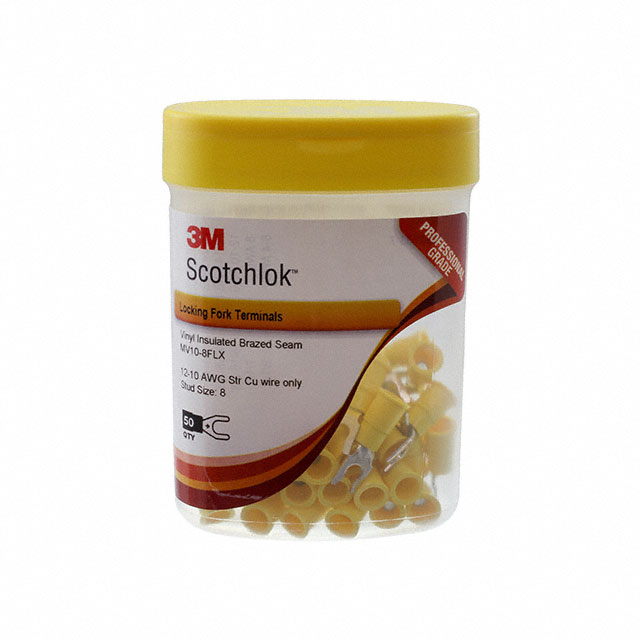

MV10-8FLX-BOTTLE

Active

CONN SPADE TERM 10-12AWG #8 50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MV10-8FLX-BOTTLE

Active

CONN SPADE TERM 10-12AWG #8 50PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 67.77
		10	$ 52.59
		25	$ 47.78
		50	$ 44.53
		100	$ 41.59
		250	$ 38.14

Description

General part information

MV10 Series

Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MV10-8FLX-BOTTLE	MV10 Series

Color	Yellow	Yellow
Contact Finish	Tin	Tin
Contact Material	ETP, Copper	ETP, Copper
Features	Brazed Seam	Brazed Seam
Insulation	Insulated	Insulated, Fully Insulated
Insulation Diameter	0.25 "	0.25 "
Insulation Diameter	6.35 mm	6.35 mm
Length - Overall	26.16 mm	26.16 - 30.23 mm
Length - Overall	-	31.5 - 38.1 mm
Length - Overall	-	1.19 in
Length - Overall [x]	1.03 in	1.03 - 1.5 in
Length - Ring Center to Termination	7.11 mm	7.11 - 7.37 mm
Length - Ring Center to Termination	0.28 in	0.28 - 0.29 in
Length - Ring Center to Termination	-	0.44 in
Length - Ring Center to Termination	-	11.18 mm
Length - Termination	13.97 mm	13.97 mm
Length - Termination	0.55 in	0.55 in
Material - Insulation	Vinyl	Vinyl
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Wire Entries	-	2
Stud/Tab Size	8 Stud	8 Stud, 1/2 Stud
Stud/Tab Size	-	0.25 - 10 Stud
Terminal Type	Snap, Spring	Circular, Multi-Stud, Snap, Spring, Standard, Butt Splice, Inline, Individual Openings
Termination	Crimp	Crimp
Thickness	-	0.04 in
Thickness	-	1.02 mm
Width - Outer Edges	-	9.91 - 13.46 mm
Width - Outer Edges	-	0.39 in
Width - Outer Edges	-	9.65 mm
Width - Outer Edges	-	0.38 "
Width - Outer Edges [y]	8.13 mm	7.11 - 19.05 mm
Width - Outer Edges [y]	0.32 in	0.28 - 0.75 in
Wire Gauge [Max]	12 AWG	12 AWG
Wire Gauge [Min]	10 AWG	10 AWG

MV10 Series

CONN RING CIRC 10-12AWG 50PC

Part	Termination	Features	Thickness	Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Mounting Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Width - Outer Edges [y]	Width - Outer Edges	Insulation	Terminal Type	Contact Material	Stud/Tab Size	Color	Material - Insulation	Insulation Diameter	Insulation Diameter	Width - Outer Edges	Length - Overall	Length - Overall	Length - Termination	Length - Termination	Length - Ring Center to Termination	Length - Ring Center to Termination	Width - Outer Edges [y]	Stud/Tab Size	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Width - Outer Edges [x]	Width - Outer Edges [x]
3M MV10-516R/SX-BOTTLE	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.26 in	32 mm	0.53 in	13.46 mm	Insulated	Circular	Copper, ETP	0.3125 Stud	Yellow	Vinyl	0.25 "	6.35 mm
3M MV10-610RX-BOTTLE	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin				9.91 mm	Insulated	Multi-Stud	Copper, ETP	6 Stud, 8 Stud, 10 Stud	Yellow	Vinyl	0.25 "	6.35 mm	0.39 in	30.23 mm	1.19 in
3M MV10-10FLX	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Snap, Spring	Copper, ETP	10 Stud	Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.11 mm	0.28 in	8.13 mm
3M MV10-8FLX-BOTTLE	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Snap, Spring	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.11 mm	0.28 in	8.13 mm	8 Stud
3M MV10-6FBK	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Standard	Copper, ETP	6 Stud	Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.37 mm	0.29 in	8.13 mm
3M MV10-8FLK	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in		0.32 in		Insulated	Snap, Spring	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm		13.97 mm	0.55 in	7.11 mm	0.28 in	8.13 mm	8 Stud
3M MV10-14FLX	Crimp	Brazed Seam			12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.24 in	31.5 mm	0.43 "		Insulated	Snap, Spring	Copper, ETP	0.25 Stud	Yellow	Vinyl	0.25 "	6.35 mm				13.97 mm	0.55 in			10.92 mm		0.44 in	11.18 mm
3M MV10-8RK	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.03 in				Insulated	Circular	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm							8 Stud			9.65 mm	0.38 "
3M MV10-12RK	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)	Tin	1.5 in	38.1 mm	0.75 in		Insulated	Circular	Copper, ETP		Yellow	Vinyl	0.25 "	6.35 mm								19.05 mm	1/2 Stud
3M MV10-6RX-BOTTLE	Crimp	Brazed Seam	0.04 in	1.02 mm	12 AWG	10 AWG	Free Hanging (In-Line)		1.03 in				Insulated	Circular		6 Stud	Yellow	Vinyl	0.25 "	6.35 mm		26.16 mm										9.65 mm	0.38 "
