3380-0.5-5

Obsolete

3M (TC)

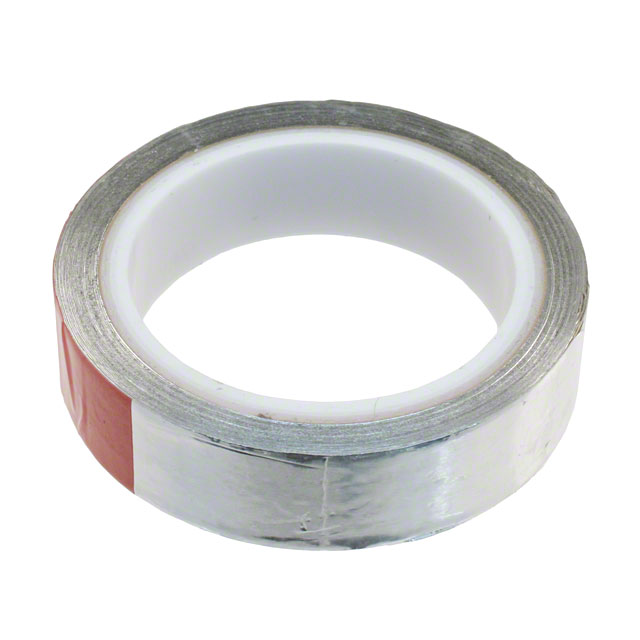

TAPE ALUM FOIL SILVER 1/2"X5YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3380-0.5-5

Obsolete

3M (TC)

TAPE ALUM FOIL SILVER 1/2"X5YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3380-0.5-5

Adhesive	Acrylic
Backing, Carrier	Aluminum Foil
Color	Silver
Length	4.6 m
Length	15 ft
Length	5 yd
Shelf Life	24 Months
Shelf Life Start	Date of Manufacture
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	60 °F, 16 °C
Tape Type	Aluminum Foil
Temperature Range [Max]	260 °F, 127 °C
Temperature Range [Min]	-34 °C, -30 °F
Thickness	0.0033 in
Thickness	3.3 mils
Thickness	0.084 mm
Thickness - Adhesive	0.0013 "
Thickness - Adhesive	1.3 mils
Thickness - Adhesive	0.033 mm
Thickness - Backing, Carrier	0.002 "
Thickness - Backing, Carrier	0.051 mm
Thickness - Backing, Carrier	2 mils
Usage	Heat Dissipation, Reflection
Width	0.5 in
Width	12.7 mm
Width	0.5 in

3380 Series

Part	Tape Type	Adhesive	Thickness	Thickness	Thickness	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Shelf Life Start	Color	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive	Backing, Carrier	Width [y]	Width [y]	Length	Length	Length	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Usage	Shelf Life	Temperature Range [Min]	Temperature Range [Max]	Width [x]	Width [x]	Width	Width	Width	Thickness
3M (TC) 3380-48MMX45M	Aluminum Foil	Acrylic	0.0033 in	3.3 mils	0.084 mm	0.002 "	2 mils	0.05 mm	Date of Manufacture	Silver	0.0013 "	1.3 mils	0.033 mm	Aluminum Foil	48 mm	1.89 in	44.9 m	147.6 ft	147.6 ft	16 °C 60 °F	27 °C 80 °F	Holding Joining Sealing	24 Months
3M (TC) 3380-2-60	Aluminum Foil	Acrylic	0.0033 in	3.3 mils	0.084 mm	0.002 "	2 mils	0.051 mm	Date of Manufacture	Silver	0.0013 "	1.3 mils	0.033 mm	Aluminum Foil	50.8 mm	2 "	55 m	60 yds	180 ft	16 °C 60 °F	27 °C 80 °F		24 Months	-34 °C -30 °F	127 °C 260 °F
3M (TC) 3M 3380 3" X 60YD	Aluminum Foil	Acrylic	0.0033 in	3.3 mils	0.084 mm	0.002 "	2 mils	0.051 mm	Date of Manufacture	Silver	0.0013 "	1.3 mils	0.033 mm	Aluminum Foil			55 m	60 yds	180 ft	16 °C 60 °F	27 °C 80 °F		24 Months	-34 °C -30 °F	127 °C 260 °F	76.2 mm	3 in
3M (TC) 0.125-5-3380 (PK15)	Aluminum Foil	Acrylic	0.0033 in	3.3 mils	0.084 mm	0.002 "	2 mils	0.051 mm	Date of Manufacture	Silver	0.0013 "	1.3 mils	0.033 mm	Aluminum Foil			4.6 m	5 yd	15 ft	16 °C 60 °F	27 °C 80 °F	Sealing	24 Months	-34 °C -30 °F	127 °C 260 °F			0.125 "	0.13 in	3.18 mm
3M (TC) 3380-1-60	Aluminum Foil	Acrylic	0.0033 in	3.3 mils	0.084 mm	0.002 "	2 mils	0.051 mm	Date of Manufacture	Silver	0.0013 "	1.3 mils	0.033 mm	Aluminum Foil			55 m	60 yds	180 ft	16 °C 60 °F	27 °C 80 °F	Heat Dissipation Reflection	24 Months	-34 °C -30 °F	127 °C 260 °F	25.4 mm	1 in
3M (TC) 12-5-3380	Aluminum Foil	Acrylic	0.0033 in	3.3 mils	0.084 mm	0.002 "	2 mils	0.051 mm	Date of Manufacture	Silver	0.0013 "	1.3 mils	0.033 mm	Aluminum Foil			4.6 m	5 yd	15 ft	16 °C 60 °F	27 °C 80 °F	Heat Dissipation Reflection	24 Months	-34 °C -30 °F	127 °C 260 °F	304.8 mm	12 in
3M (TC) 3380-4"X60YD	Aluminum Foil	Acrylic		3.2 mils	0.082 mm	0.002 "	2 mils	0.05 mm	Date of Manufacture	Silver	0.0012 in	1.2 mils	0.031 mm	Aluminum Foil			55 m	60 yds	180 ft			Holding Joining Sealing	24 Months	-34 °C -29 °F	127 °C 261 °F	101.6 mm	4 "				0.0032 in
3M (TC) 3380-0.5-5	Aluminum Foil	Acrylic	0.0033 in	3.3 mils	0.084 mm	0.002 "	2 mils	0.051 mm	Date of Manufacture	Silver	0.0013 "	1.3 mils	0.033 mm	Aluminum Foil			4.6 m	5 yd	15 ft	16 °C 60 °F	27 °C 80 °F	Heat Dissipation Reflection	24 Months	-34 °C -30 °F	127 °C 260 °F			0.5 in	0.5 in	12.7 mm
3M (TC) 3380-4-5	Aluminum Foil	Acrylic	0.0033 in	3.3 mils	0.084 mm	0.002 "	2 mils	0.051 mm	Date of Manufacture	Silver	0.0013 "	1.3 mils	0.033 mm	Aluminum Foil			4.6 m	5 yd	15 ft	16 °C 60 °F	27 °C 80 °F	Heat Dissipation Reflection	24 Months	-34 °C -30 °F	127 °C 260 °F	101.6 mm	4 "
3M (TC) 3380-2-5	Aluminum Foil	Acrylic	0.0033 in	3.3 mils	0.084 mm	0.002 "	2 mils	0.051 mm	Date of Manufacture	Silver	0.0013 "	1.3 mils	0.033 mm	Aluminum Foil	50.8 mm	2 "	4.6 m	5 yd	15 ft	16 °C 60 °F	27 °C 80 °F	Heat Dissipation Reflection	24 Months	-34 °C -30 °F	127 °C 260 °F

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

3380 Series

Aluminum Foil Tape Acrylic Adhesive Silver 0.50" (12.70mm) 1/2" X 15' (4.6m) 5 yds

Documents

Technical documentation and resources
