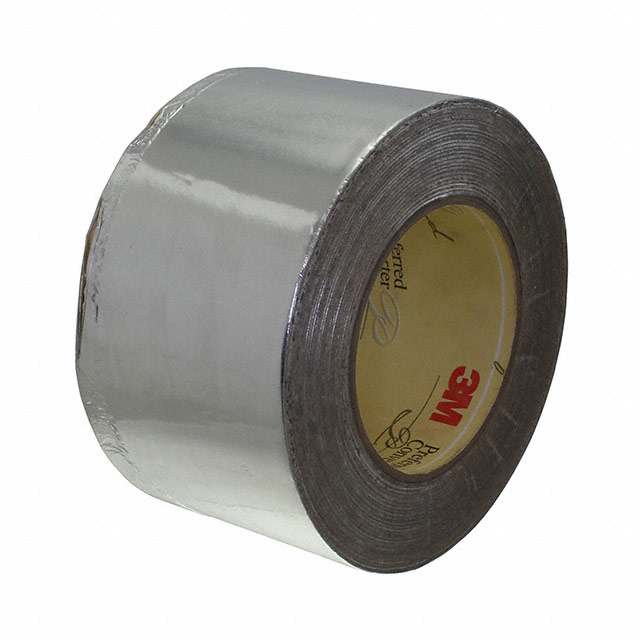

3M 3380 3" X 60YD
Obsolete3M (TC)
TAPE ALUM FOIL SILVER 3"X60YDS
Deep-Dive with AI
Search across all available documentation for this part.
3M 3380 3" X 60YD
Obsolete3M (TC)
TAPE ALUM FOIL SILVER 3"X60YDS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3M 3380 3" X 60YD |
|---|---|
| Adhesive | Acrylic |
| Backing, Carrier | Aluminum Foil |
| Color | Silver |
| Length | 60 yds |
| Length | 55 m |
| Length | 180 ft |
| Shelf Life | 24 Months |
| Shelf Life Start | Date of Manufacture |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C |
| Storage/Refrigeration Temperature [Min] | 60 °F, 16 °C |
| Tape Type | Aluminum Foil |
| Temperature Range [Max] | 260 °F, 127 °C |
| Temperature Range [Min] | -34 °C, -30 °F |
| Thickness | 0.0033 in |
| Thickness | 3.3 mils |
| Thickness | 0.084 mm |
| Thickness - Adhesive | 0.0013 " |
| Thickness - Adhesive | 1.3 mils |
| Thickness - Adhesive | 0.033 mm |
| Thickness - Backing, Carrier | 0.002 " |
| Thickness - Backing, Carrier | 0.051 mm |
| Thickness - Backing, Carrier | 2 mils |
| Width [x] | 76.2 mm |
| Width [x] | 3 in |
3380 Series
| Part | Tape Type | Adhesive | Thickness | Thickness | Thickness | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Thickness - Backing, Carrier | Shelf Life Start | Color | Thickness - Adhesive | Thickness - Adhesive | Thickness - Adhesive | Backing, Carrier | Width [y] | Width [y] | Length | Length | Length | Storage/Refrigeration Temperature [Min] | Storage/Refrigeration Temperature [Max] | Usage | Shelf Life | Temperature Range [Min] | Temperature Range [Max] | Width [x] | Width [x] | Width | Width | Width | Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Aluminum Foil | Acrylic | 0.0033 in | 3.3 mils | 0.084 mm | 0.002 " | 2 mils | 0.05 mm | Date of Manufacture | Silver | 0.0013 " | 1.3 mils | 0.033 mm | Aluminum Foil | 48 mm | 1.89 in | 44.9 m | 147.6 ft | 147.6 ft | 16 °C 60 °F | 27 °C 80 °F | Holding Joining Sealing | 24 Months | ||||||||
3M (TC) | Aluminum Foil | Acrylic | 0.0033 in | 3.3 mils | 0.084 mm | 0.002 " | 2 mils | 0.051 mm | Date of Manufacture | Silver | 0.0013 " | 1.3 mils | 0.033 mm | Aluminum Foil | 50.8 mm | 2 " | 55 m | 60 yds | 180 ft | 16 °C 60 °F | 27 °C 80 °F | 24 Months | -34 °C -30 °F | 127 °C 260 °F | |||||||
3M (TC) | Aluminum Foil | Acrylic | 0.0033 in | 3.3 mils | 0.084 mm | 0.002 " | 2 mils | 0.051 mm | Date of Manufacture | Silver | 0.0013 " | 1.3 mils | 0.033 mm | Aluminum Foil | 55 m | 60 yds | 180 ft | 16 °C 60 °F | 27 °C 80 °F | 24 Months | -34 °C -30 °F | 127 °C 260 °F | 76.2 mm | 3 in | |||||||
3M (TC) | Aluminum Foil | Acrylic | 0.0033 in | 3.3 mils | 0.084 mm | 0.002 " | 2 mils | 0.051 mm | Date of Manufacture | Silver | 0.0013 " | 1.3 mils | 0.033 mm | Aluminum Foil | 4.6 m | 5 yd | 15 ft | 16 °C 60 °F | 27 °C 80 °F | Sealing | 24 Months | -34 °C -30 °F | 127 °C 260 °F | 0.125 " | 0.13 in | 3.18 mm | |||||
3M (TC) | Aluminum Foil | Acrylic | 0.0033 in | 3.3 mils | 0.084 mm | 0.002 " | 2 mils | 0.051 mm | Date of Manufacture | Silver | 0.0013 " | 1.3 mils | 0.033 mm | Aluminum Foil | 55 m | 60 yds | 180 ft | 16 °C 60 °F | 27 °C 80 °F | Heat Dissipation Reflection | 24 Months | -34 °C -30 °F | 127 °C 260 °F | 25.4 mm | 1 in | ||||||
3M (TC) | Aluminum Foil | Acrylic | 0.0033 in | 3.3 mils | 0.084 mm | 0.002 " | 2 mils | 0.051 mm | Date of Manufacture | Silver | 0.0013 " | 1.3 mils | 0.033 mm | Aluminum Foil | 4.6 m | 5 yd | 15 ft | 16 °C 60 °F | 27 °C 80 °F | Heat Dissipation Reflection | 24 Months | -34 °C -30 °F | 127 °C 260 °F | 304.8 mm | 12 in | ||||||
3M (TC) | Aluminum Foil | Acrylic | 3.2 mils | 0.082 mm | 0.002 " | 2 mils | 0.05 mm | Date of Manufacture | Silver | 0.0012 in | 1.2 mils | 0.031 mm | Aluminum Foil | 55 m | 60 yds | 180 ft | Holding Joining Sealing | 24 Months | -34 °C -29 °F | 127 °C 261 °F | 101.6 mm | 4 " | 0.0032 in | ||||||||
3M (TC) | Aluminum Foil | Acrylic | 0.0033 in | 3.3 mils | 0.084 mm | 0.002 " | 2 mils | 0.051 mm | Date of Manufacture | Silver | 0.0013 " | 1.3 mils | 0.033 mm | Aluminum Foil | 4.6 m | 5 yd | 15 ft | 16 °C 60 °F | 27 °C 80 °F | Heat Dissipation Reflection | 24 Months | -34 °C -30 °F | 127 °C 260 °F | 0.5 in | 0.5 in | 12.7 mm | |||||
3M (TC) | Aluminum Foil | Acrylic | 0.0033 in | 3.3 mils | 0.084 mm | 0.002 " | 2 mils | 0.051 mm | Date of Manufacture | Silver | 0.0013 " | 1.3 mils | 0.033 mm | Aluminum Foil | 4.6 m | 5 yd | 15 ft | 16 °C 60 °F | 27 °C 80 °F | Heat Dissipation Reflection | 24 Months | -34 °C -30 °F | 127 °C 260 °F | 101.6 mm | 4 " | ||||||
3M (TC) | Aluminum Foil | Acrylic | 0.0033 in | 3.3 mils | 0.084 mm | 0.002 " | 2 mils | 0.051 mm | Date of Manufacture | Silver | 0.0013 " | 1.3 mils | 0.033 mm | Aluminum Foil | 50.8 mm | 2 " | 4.6 m | 5 yd | 15 ft | 16 °C 60 °F | 27 °C 80 °F | Heat Dissipation Reflection | 24 Months | -34 °C -30 °F | 127 °C 260 °F |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
3380 Series
Aluminum Foil Tape Acrylic Adhesive Silver 3.00" (76.20mm) X 180' (55.0m) 60 yds
Documents
Technical documentation and resources
No documents available
