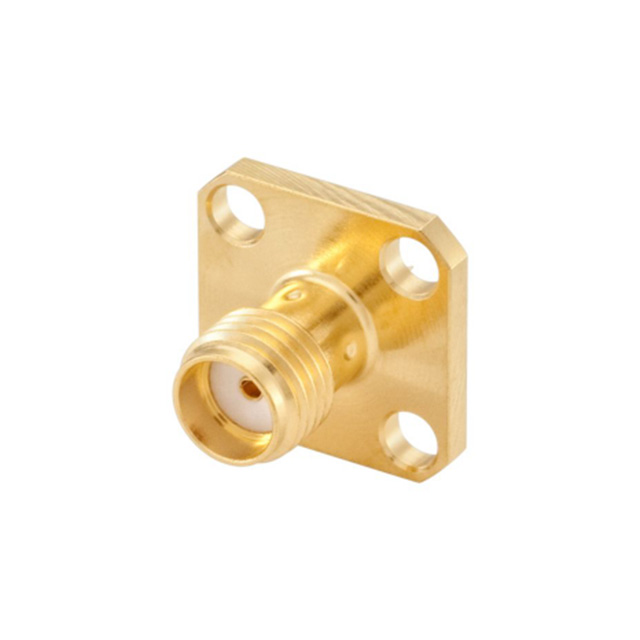

32K421-200E3

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN SMA JACK STR 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	32K421-200E3

Body Finish	Gold
Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Dielectric Material	Contact Termination	Center Contact Material	Number of Ports	Impedance	Mounting Feature	Body Material	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Center Contact Plating	Voltage Rating	Connector Style	Mating Cycles	Housing Color	Body Finish
Rosenberger 32K421-600S5	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	1	50 Ohms	Flange	Stainless Steel	18 GHz	Female Socket Jack	-65 ░C	165 °C	Solder	Gold	480 V	SMA	500
Rosenberger 32K421-700S5	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	1	50 Ohms	Flange	Stainless Steel	18 GHz	Female Socket Jack	-65 ░C	165 °C	Solder	Gold	480 V	SMA	500
Rosenberger 32K421-200E3	Polytetrafluoroethylene (PTFE)	Solder Cup	Beryllium Copper	1	50 Ohms	Flange	Stainless Steel	18 GHz	Female Socket Jack	-65 ░C	165 °C	Solder	Gold	480 V	SMA	500	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
