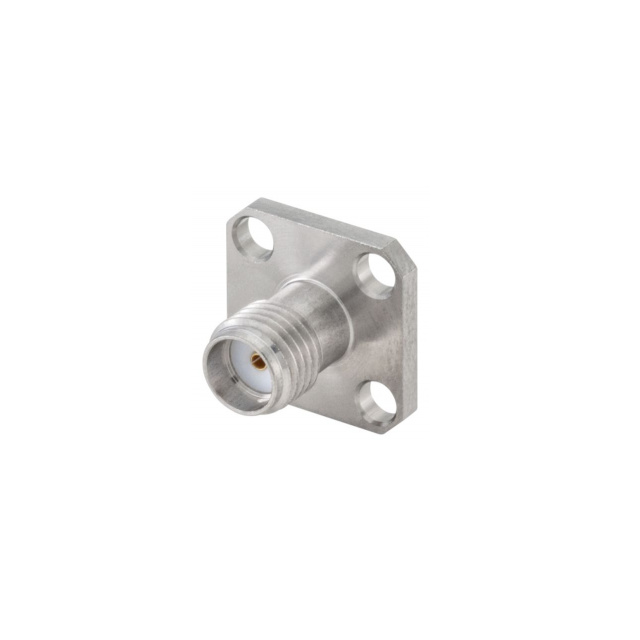

Specification	32K421-600S5

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Jack, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Feature	Flange
Mounting Type	Panel Mount
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	480 VAC

32K421 Series

Part	Operating Temperature (Min)	Operating Temperature (Max)	Dielectric Material	Center Contact Plating	Body Material	Mating Cycles	Voltage Rating	Shield Termination	Center Contact Material	Number of Ports	Connector Style	Mounting Type	Impedance	Contact Termination	Connector Type	Mounting Feature	Fastening Type	Frequency - Max	Housing Color	Body Finish
Rosenberger 32K421-600S5	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	500 cycles	480 VAC	Solder	Beryllium Copper	1	SMA	Panel Mount	50 Ohm	Solder	Female Socket Jack	Flange	Threaded	18 GHz
Rosenberger 32K421-700S5	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	500 cycles	480 VAC	Solder	Beryllium Copper	1	SMA	Panel Mount	50 Ohm	Solder	Female Socket Jack	Flange	Threaded	18 GHz
Rosenberger 32K421-200E3	-65 °C	165 °C	Polytetrafluoroethylene (PTFE)	Gold	Stainless Steel	500 cycles	480 VAC	Solder	Beryllium Copper	1	SMA	Panel Mount	50 Ohm	Solder Cup	Female Socket Jack	Flange	Threaded	18 GHz	Gold	Gold
