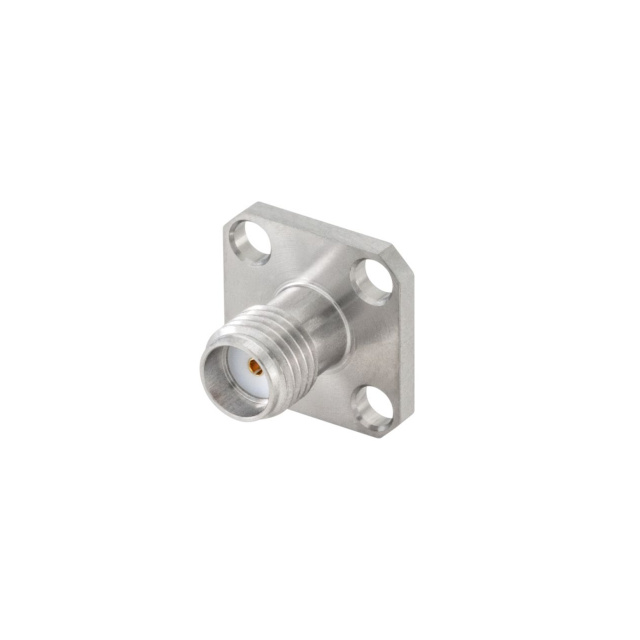

32K421-700S5

Active

Rosenberger

SMA PANEL JACK

Search across all available documentation for this part.

Active

Rosenberger

SMA PANEL JACK

Technical Specifications

Parameters and characteristics for this part

Specification	32K421-700S5

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	18 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	480 V

Part	Dielectric Material	Contact Termination	Center Contact Material	Number of Ports	Impedance	Mounting Feature	Body Material	Frequency - Max [Max]	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Center Contact Plating	Voltage Rating	Connector Style	Mating Cycles	Housing Color	Body Finish
Rosenberger 32K421-600S5	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	1	50 Ohms	Flange	Stainless Steel	18 GHz	Female Socket Jack	-65 ░C	165 °C	Solder	Gold	480 V	SMA	500
Rosenberger 32K421-700S5	Polytetrafluoroethylene (PTFE)	Solder	Beryllium Copper	1	50 Ohms	Flange	Stainless Steel	18 GHz	Female Socket Jack	-65 ░C	165 °C	Solder	Gold	480 V	SMA	500
Rosenberger 32K421-200E3	Polytetrafluoroethylene (PTFE)	Solder Cup	Beryllium Copper	1	50 Ohms	Flange	Stainless Steel	18 GHz	Female Socket Jack	-65 ░C	165 °C	Solder	Gold	480 V	SMA	500	Gold	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 36.79

General part information

SMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
