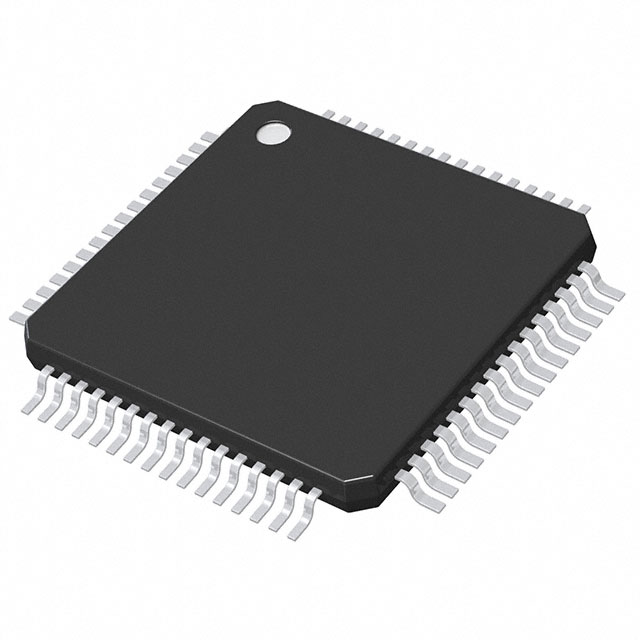

L9963

Active

STMicroelectronics

BATTERY MANAGEMENT CHIP LI-ION 4 TO 14 CELL 64-PIN TQFP-EP AUTOMOTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L9963

Active

STMicroelectronics

BATTERY MANAGEMENT CHIP LI-ION 4 TO 14 CELL 64-PIN TQFP-EP AUTOMOTIVE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L9963

Battery Chemistry	Lithium Ion
Fault Protection	Over Current
Function	Battery Monitor
Grade	Automotive
Interface	SPI
Mounting Type	Surface Mount
Number of Cells [Max]	14
Number of Cells [Min]	4
Package / Case	64-TQFP Exposed Pad
Qualification	AEC-Q100
Supplier Device Package	64-TQFP-EP (10x10)

L9963E Series

Automotive chip for battery management applications with daisy chain up to 31 devices

Part	Number of Cells [Min]	Number of Cells [Max]	Interface	Package / Case	Qualification	Battery Chemistry	Function	Grade	Mounting Type	Supplier Device Package	Fault Protection	Utilized IC / Part	Contents	Supplied Contents	Type
STMicroelectronics L9963	4	14	SPI	64-TQFP Exposed Pad	AEC-Q100	Lithium Ion	Battery Monitor	Automotive	Surface Mount	64-TQFP-EP (10x10)	Over Current
STMicroelectronics EVAL-L9963-NDS							Battery Monitor					L9963	Board(s)	Board(s)	Power Management
STMicroelectronics L9963E-TR	4	14	SPI	64-TQFP Exposed Pad	AEC-Q100	Lithium Ion	Battery Monitor	Automotive	Surface Mount	64-TQFP-EP (10x10)	Over Current
STMicroelectronics EVAL-L9963-MCU							Battery Monitor					L9963	Board(s)	Board(s)	Power Management
STMicroelectronics L9963-TR	4	14	SPI	64-TQFP Exposed Pad	AEC-Q100	Lithium Ion	Battery Monitor	Automotive	Surface Mount	64-TQFP-EP (10x10)	Over Current

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

L9963E Series

The L9963E is a Li-ion battery monitoring and protecting chip for high-reliability automotive applications and energy storage systems. Up to 14 stacked battery cells can be monitored to meet the requirements of 48 V and higher voltage systems.

Each cell voltage is measured with high accuracy, as well as the current for the on-chip coulomb counting. The device can monitor up to 7 NTCs. The information is transmitted through SPI communication or isolated interface.

Multiple L9963E can be connected in a daisy chain and communicate with one host processor via the transformer isolated interfaces, featuring high-speed, low EMI, long distance, and reliable data transmission.
