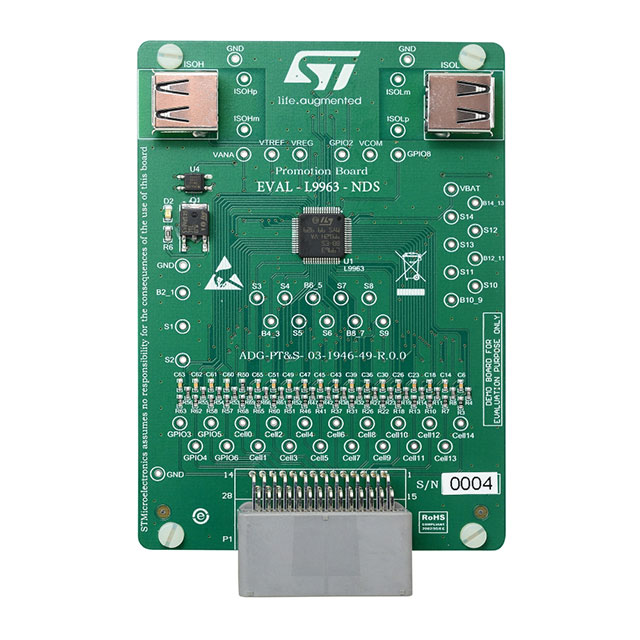

EVAL-L9963-NDS
ActiveEVALUATION BOARD FOR L9963 - NOD
Deep-Dive with AI
Search across all available documentation for this part.
EVAL-L9963-NDS
ActiveEVALUATION BOARD FOR L9963 - NOD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL-L9963-NDS |
|---|---|
| Contents | Board(s) |
| Function | Battery Monitor |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | L9963 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 100.00 | |
Description
General part information
L9963E Series
The L9963E is a Li-ion battery monitoring and protecting chip for high-reliability automotive applications and energy storage systems. Up to 14 stacked battery cells can be monitored to meet the requirements of 48 V and higher voltage systems.
Each cell voltage is measured with high accuracy, as well as the current for the on-chip coulomb counting. The device can monitor up to 7 NTCs. The information is transmitted through SPI communication or isolated interface.
Multiple L9963E can be connected in a daisy chain and communicate with one host processor via the transformer isolated interfaces, featuring high-speed, low EMI, long distance, and reliable data transmission.
Documents
Technical documentation and resources
No documents available
