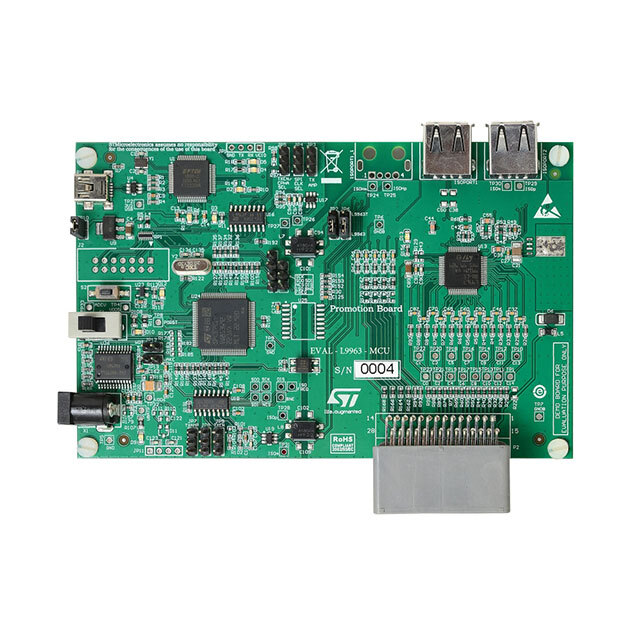

EVAL-L9963-MCU

Active

STMicroelectronics

EVALUATION BOARD FOR L9963 -BMS

Deep-Dive with AI

Search across all available documentation for this part.

EVAL-L9963-MCU

Active

STMicroelectronics

EVALUATION BOARD FOR L9963 -BMS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EVAL-L9963-MCU

Contents	Board(s)
Function	Battery Monitor
Supplied Contents	Board(s)
Type	Power Management
Utilized IC / Part	L9963

L9963E Series

Automotive chip for battery management applications with daisy chain up to 31 devices

Part	Number of Cells [Min]	Number of Cells [Max]	Interface	Package / Case	Qualification	Battery Chemistry	Function	Grade	Mounting Type	Supplier Device Package	Fault Protection	Utilized IC / Part	Contents	Supplied Contents	Type
STMicroelectronics L9963	4	14	SPI	64-TQFP Exposed Pad	AEC-Q100	Lithium Ion	Battery Monitor	Automotive	Surface Mount	64-TQFP-EP (10x10)	Over Current
STMicroelectronics EVAL-L9963-NDS							Battery Monitor					L9963	Board(s)	Board(s)	Power Management
STMicroelectronics L9963E-TR	4	14	SPI	64-TQFP Exposed Pad	AEC-Q100	Lithium Ion	Battery Monitor	Automotive	Surface Mount	64-TQFP-EP (10x10)	Over Current
STMicroelectronics EVAL-L9963-MCU							Battery Monitor					L9963	Board(s)	Board(s)	Power Management
STMicroelectronics L9963-TR	4	14	SPI	64-TQFP Exposed Pad	AEC-Q100	Lithium Ion	Battery Monitor	Automotive	Surface Mount	64-TQFP-EP (10x10)	Over Current

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

L9963E Series

The L9963E is a Li-ion battery monitoring and protecting chip for high-reliability automotive applications and energy storage systems. Up to 14 stacked battery cells can be monitored to meet the requirements of 48 V and higher voltage systems.

Each cell voltage is measured with high accuracy, as well as the current for the on-chip coulomb counting. The device can monitor up to 7 NTCs. The information is transmitted through SPI communication or isolated interface.

Multiple L9963E can be connected in a daisy chain and communicate with one host processor via the transformer isolated interfaces, featuring high-speed, low EMI, long distance, and reliable data transmission.

Documents

Technical documentation and resources

No documents available
