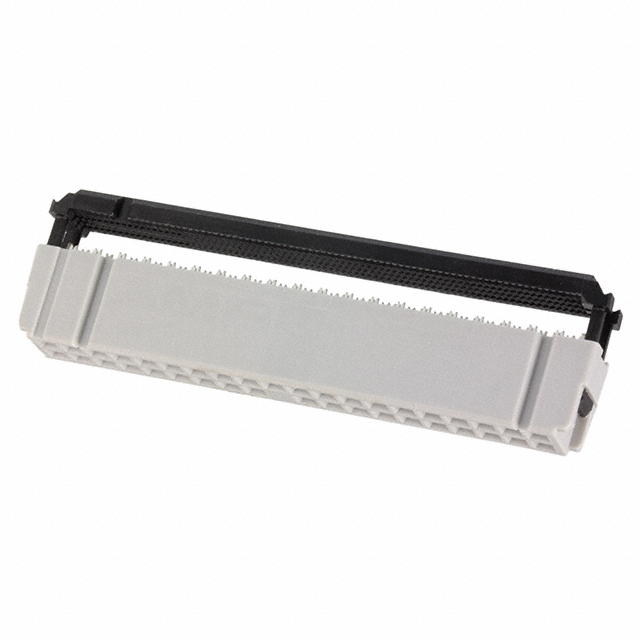

1658618-3
ActiveTE Connectivity Raychem Cable Protection
ULTRA NOVO RCPT, GRY,LEAD FREE
Deep-Dive with AI
Search across all available documentation for this part.
1658618-3
ActiveTE Connectivity Raychem Cable Protection
ULTRA NOVO RCPT, GRY,LEAD FREE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1658618-3 |
|---|---|
| Cable Termination | IDC |
| Color | Gray |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Finish Thickness | 0.38 µm |
| Contact Type | Forked |
| Features | Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 40 |
| Number of Rows | 2 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Row Spacing | 2.54 mm |
| Row Spacing [x] | 0.1 in |
| Wire Type | Ribbon Cable |
AMP-LATCH - NOVO Series
| Part | Cable Termination | Number of Rows | Features | Row Spacing [x] | Row Spacing | Contact Type | Wire Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Pitch [x] | Pitch [x] | Connector Type | Number of Positions | Color | Wire Gauge [Min] | Wire Gauge | Wire Gauge [Max] | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | IDC | 2 | Feed Through Polarizing Key | 0.1 in | 2.54 mm | Female Socket | Ribbon Cable | Gold | 8 çin | 0.203 çm | Free Hanging (In-Line) Right Angle | 2.54 mm | 0.1 in | Receptacle | 64 | Gray | ||||
TE Connectivity Raychem Cable Protection | IDC | 2 | Feed Through Polarizing Key | 0.1 in | 2.54 mm | Female Socket | Ribbon Cable | Gold Gold-Palladium | 8 çin | 0.203 çm | Free Hanging (In-Line) Right Angle | 2.54 mm | 0.1 in | Receptacle | 10 | Gray | ||||
TE Connectivity Raychem Cable Protection | ||||||||||||||||||||
TE Connectivity Raychem Cable Protection | IDC | 2 | Feed Through | 0.1 in | 2.54 mm | Forked | Ribbon Cable | Gold | 15 µin | 0.38 µm | Free Hanging (In-Line) | 2.54 mm | 0.1 in | Receptacle | 40 | Gray | ||||
TE Connectivity Raychem Cable Protection | IDC | 2 | Feed Through Polarizing Key | 0.1 in | 2.54 mm | Female Socket | Ribbon Cable | Gold | 30 Áin | 0.76 Ám | Free Hanging (In-Line) | 2.54 mm | 0.1 in | Receptacle | 26 | Gray | ||||
TE Connectivity Raychem Cable Protection | IDC | 2 | Feed Through Polarizing Key | 0.1 in | 2.54 mm | Forked | Ribbon Cable | Gold Gold-Palladium | 30 Áin | 0.76 Ám | Free Hanging (In-Line) | 2.54 mm | 0.1 in | Receptacle | 44 | Black | ||||
TE Connectivity Raychem Cable Protection | IDC | 2 | Feed Through Polarizing Key | 0.1 in | 2.54 mm | Female Socket | Ribbon Cable | Gold | 30 Áin | 0.76 Ám | Free Hanging (In-Line) | 2.54 mm | 0.1 in | Receptacle | 40 | Gray | ||||
TE Connectivity Raychem Cable Protection | IDC | 2 | Feed Through Polarizing Key | 0.1 in | 2.54 mm | Female Socket | Ribbon Cable | Gold | 8 çin | 0.203 çm | Free Hanging (In-Line) Right Angle | 2.54 mm | 0.1 in | Receptacle | 50 | Gray | ||||
TE Connectivity Raychem Cable Protection | IDC | 2 | Feed Through Polarizing Key | 0.1 in | 2.54 mm | Female Socket | Ribbon Cable | Gold | 31.5 µin | 0.8 µm | Free Hanging (In-Line) | 2.54 mm | 0.1 in | Receptacle | Gray | 26 AWG | 28 AWG Stranded | 30 AWG | 16 | |
TE Connectivity Raychem Cable Protection | IDC | 2 | Feed Through Polarizing Key | 0.1 in | 2.54 mm | Female Socket | Ribbon Cable | Gold | 8 çin | 0.203 çm | Free Hanging (In-Line) Right Angle | 2.54 mm | 0.1 in | Receptacle | 14 | Gray |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
AMP-LATCH - NOVO Series
Wire-to-Board, 40 Position, 2.54 mm [.1 in] Centerline, Vertical, Through Hole - Solder, 2 Row, Receptacle, AMP-LATCH - NOVO, Ribbon Cable Connectors
