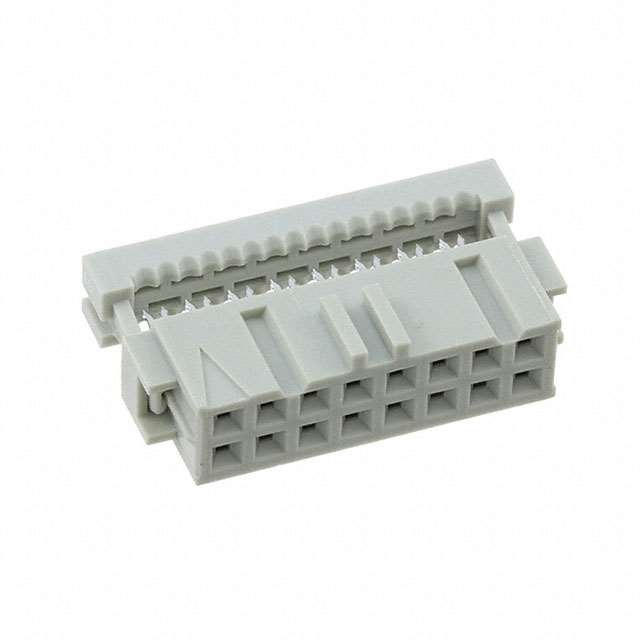

1-215882-6 - 1-215882-6

1-215882-6

Active
TE Connectivity Raychem Cable Protection

HEADERS & WIRE HOUSINGS 16WAY GREY MKII RCPT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetConnector, Flat Cable Round Conductor AMP-LATCH+3
1-215882-6 - 1-215882-6

1-215882-6

Active
TE Connectivity Raychem Cable Protection

HEADERS & WIRE HOUSINGS 16WAY GREY MKII RCPT

Deep-Dive with AI

DocumentsDatasheetConnector, Flat Cable Round Conductor AMP-LATCH+3

Technical Specifications

Parameters and characteristics for this part

Specification1-215882-6
Cable TerminationIDC
ColorGray
Connector TypeReceptacle
Contact FinishGold
Contact Finish Thickness31.5 µin
Contact Finish Thickness0.8 µm
Contact TypeFemale Socket
FeaturesPolarizing Key, Feed Through
Mounting TypeFree Hanging (In-Line)
Number of Positions16
Number of Rows2
Pitch [x]2.54 mm
Pitch [x]0.1 in
Row Spacing2.54 mm
Row Spacing [x]0.1 in
Wire Gauge28 AWG, Stranded
Wire Gauge [Max]30 AWG
Wire Gauge [Min]26 AWG
Wire TypeRibbon Cable

AMP-LATCH Universal Headers Series
