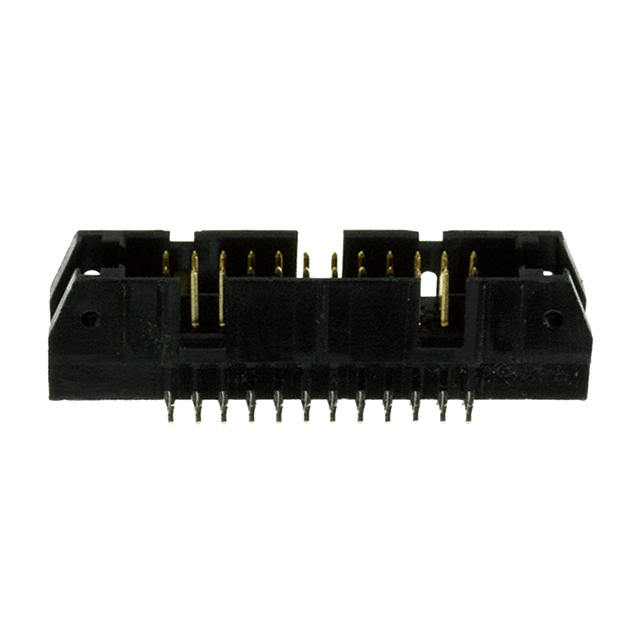

1658694-9

Active

TE Connectivity Raychem Cable Protection

A/L UNIV HDR 24P ACT PIN ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet IMPACT 100 Ohm Interconnect Systems +4

1658694-9

Active

TE Connectivity Raychem Cable Protection

A/L UNIV HDR 24P ACT PIN ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet IMPACT 100 Ohm Interconnect Systems +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1658694-9

Connector Type	Header
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	4.42 mm
Contact Length - Post	0.174 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.549 in
Insulation Height	13.94 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	24
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	17.86 mm
Overall Contact Length	0.703 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder, Press-Fit

AMP-LATCH Universal Headers Series

Headers & Wire Housings 034 UNIV HDR RA 4S 1

...

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Shape	Overall Contact Length	Overall Contact Length	Connector Type	Contact Material	Number of Positions	Number of Positions Loaded	Insulation Color	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Termination	Contact Finish - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish - Post	Voltage Rating	Number of Positions	Contact Length - Post [x]	Overall Contact Length
TE Connectivity Raychem Cable Protection 1658694-9	30 Áin	0.76 Ám	Male Pin	Square	17.86 mm	0.703 in	Header	Phosphor Bronze	24	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Press-Fit Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Push-Pull	0.549 in	13.94 mm	2	4.42 mm	0.174 in	6.1 mm	0.24 in	Tin
TE Connectivity Raychem Cable Protection 1-5102321-0	30 Áin	0.76 Ám	Male Pin	Square	17.37 mm	0.684 in	Header		50	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	0.549 in	13.94 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC
TE Connectivity Raychem Cable Protection 499913-3	15 µin	0.38 µm	Male Pin	Square			Header	Brass		All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	0.315 in	8 mm	2	2.79 mm		6.1 mm	0.24 in	Tin-Lead	250 VAC	16	0.11 in
TE Connectivity Raychem Cable Protection 102162-2	30 Áin	0.76 Ám	Male Pin	Square			Header	Brass	14	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	Push-Pull	0.315 in	8 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin-Lead	250 VAC
TE Connectivity Raychem Cable Protection 5102156-9	30 Áin	0.76 Ám	Male Pin	Square	17.37 mm	0.684 in	Header		40	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Push-Pull	0.549 in	13.94 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC
TE Connectivity Raychem Cable Protection 3-5499206-0	30 Áin	0.76 Ám	Male Pin	Square	16.23 mm		Header		50	All	Blue	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in		Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	0.549 in	13.94 mm	2	2.79 mm		6.1 mm	0.24 in	Tin	250 VAC		0.11 in	0.639 in
TE Connectivity Raychem Cable Protection 5102162-1	30 Áin	0.76 Ám	Male Pin	Square			Header	Brass	10	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	Push-Pull	0.315 in	8 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC
TE Connectivity Raychem Cable Protection 102160-6	30 Áin	0.76 Ám	Male Pin	Square			Header	Brass	26	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	Push-Pull	0.315 in	8 mm	2	2.79 mm		6.1 mm	0.24 in	Tin-Lead	250 VAC		0.11 in
TE Connectivity Raychem Cable Protection 5499374-5	30 Áin	0.76 Ám	Male Pin	Square	17.37 mm	0.684 in	Header		24	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	0.549 in	13.94 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC
TE Connectivity Raychem Cable Protection 5499923-3	15 µin	0.38 µm	Male Pin	Square	17.37 mm	0.684 in	Header			All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	0.549 in	13.94 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 6.19
		60	$ 5.17
		120	$ 4.86
		480	$ 4.83
		960	$ 4.52
Newark	Each	500	$ 4.39
		1000	$ 3.91
		2500	$ 3.69

Description

General part information

AMP-LATCH Universal Headers Series

Headers & Wire Housings 034 UNIV HDR RA 4S 1

Documents

Technical documentation and resources

Datasheet

1658694-9

Deep-Dive with AI

1658694-9

Deep-Dive with AI

Technical Specifications

AMP-LATCH Universal Headers Series

Pricing

Description

AMP-LATCH Universal Headers Series

Documents

Datasheet

IMPACT 100 Ohm Interconnect Systems

AMP-LATCH ACTION PIN Header Connector

ENG_CD_1658694_H.pdf

AMP-LATCH Universal Headers with ACTION PIN Contacts

Datasheet

AMP-LATCH Universal Headers Series
