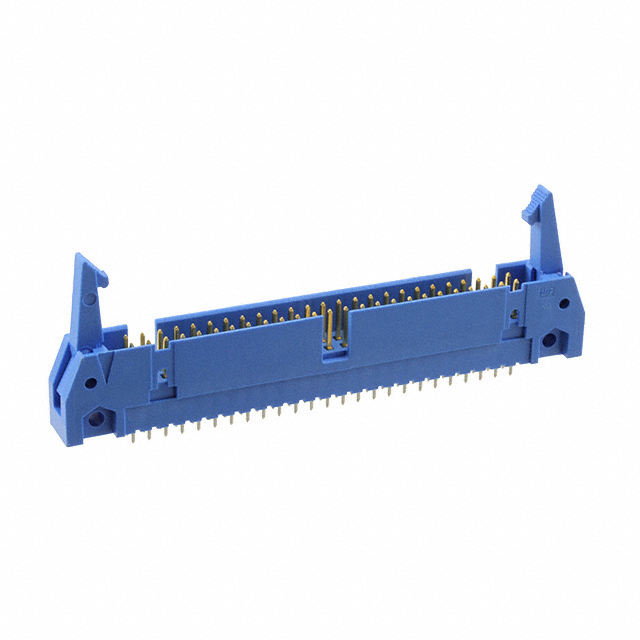

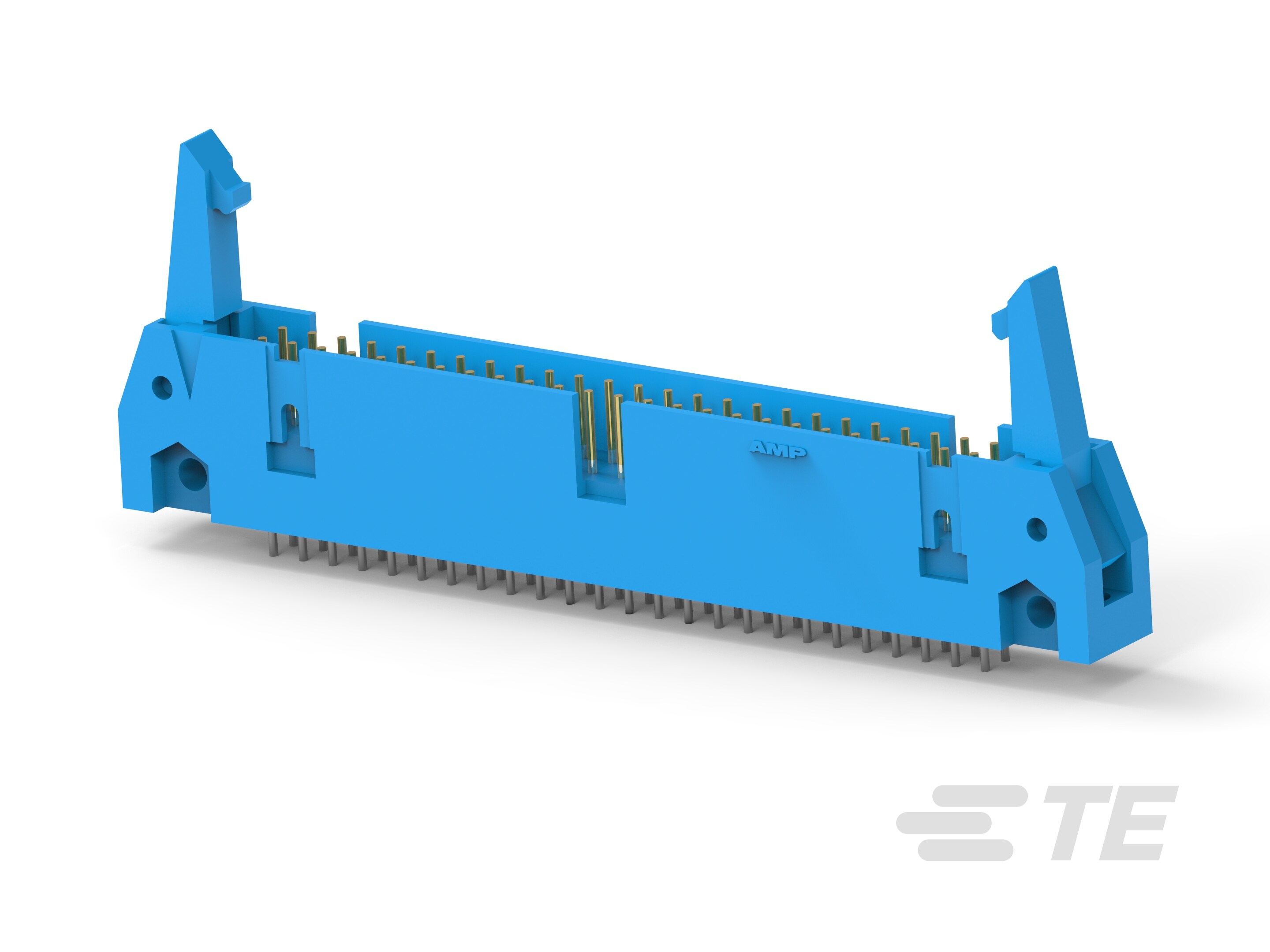

3-5499206-0

Active

TE Connectivity Raychem Cable Protection

A/L UNIV HDR 50P VERT LG LAT B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

3-5499206-0

Active

TE Connectivity Raychem Cable Protection

A/L UNIV HDR 50P VERT LG LAT B

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	3-5499206-0

Connector Type	Header
Contact Finish - Mating	Gold or Gold-Palladium
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating	6.1 mm
Contact Length - Mating [x]	0.24 in
Contact Length - Post	2.79 mm
Contact Length - Post [x]	0.11 in
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Latch Lock/Eject Hooks, Long
Insulation Color	Blue
Insulation Height	0.549 in
Insulation Height	13.94 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	50
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	16.23 mm
Overall Contact Length	0.639 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VAC

AMP-LATCH Universal Headers Series

Headers & Wire Housings 034 UNIV HDR RA 4S 1

...

Part	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Contact Shape	Overall Contact Length	Overall Contact Length	Connector Type	Contact Material	Number of Positions	Number of Positions Loaded	Insulation Color	Shrouding	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Current Rating (Amps)	Termination	Contact Finish - Mating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Fastening Type	Insulation Height	Insulation Height	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating [x]	Contact Finish - Post	Voltage Rating	Number of Positions	Contact Length - Post [x]	Overall Contact Length
TE Connectivity Raychem Cable Protection 1658694-9	30 Áin	0.76 Ám	Male Pin	Square	17.86 mm	0.703 in	Header	Phosphor Bronze	24	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Press-Fit Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Push-Pull	0.549 in	13.94 mm	2	4.42 mm	0.174 in	6.1 mm	0.24 in	Tin
TE Connectivity Raychem Cable Protection 1-5102321-0	30 Áin	0.76 Ám	Male Pin	Square	17.37 mm	0.684 in	Header		50	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	0.549 in	13.94 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC
TE Connectivity Raychem Cable Protection 499913-3	15 µin	0.38 µm	Male Pin	Square			Header	Brass		All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	0.315 in	8 mm	2	2.79 mm		6.1 mm	0.24 in	Tin-Lead	250 VAC	16	0.11 in
TE Connectivity Raychem Cable Protection 102162-2	30 Áin	0.76 Ám	Male Pin	Square			Header	Brass	14	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	Push-Pull	0.315 in	8 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin-Lead	250 VAC
TE Connectivity Raychem Cable Protection 5102156-9	30 Áin	0.76 Ám	Male Pin	Square	17.37 mm	0.684 in	Header		40	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Push-Pull	0.549 in	13.94 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC
TE Connectivity Raychem Cable Protection 3-5499206-0	30 Áin	0.76 Ám	Male Pin	Square	16.23 mm		Header		50	All	Blue	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in		Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	0.549 in	13.94 mm	2	2.79 mm		6.1 mm	0.24 in	Tin	250 VAC		0.11 in	0.639 in
TE Connectivity Raychem Cable Protection 5102162-1	30 Áin	0.76 Ám	Male Pin	Square			Header	Brass	10	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	Push-Pull	0.315 in	8 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC
TE Connectivity Raychem Cable Protection 102160-6	30 Áin	0.76 Ám	Male Pin	Square			Header	Brass	26	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole Right Angle	0.1 in	2.54 mm	Push-Pull	0.315 in	8 mm	2	2.79 mm		6.1 mm	0.24 in	Tin-Lead	250 VAC		0.11 in
TE Connectivity Raychem Cable Protection 5499374-5	30 Áin	0.76 Ám	Male Pin	Square	17.37 mm	0.684 in	Header		24	All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Latch Lock/Eject Hooks Short	0.549 in	13.94 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC
TE Connectivity Raychem Cable Protection 5499923-3	15 µin	0.38 µm	Male Pin	Square	17.37 mm	0.684 in	Header			All	Black	Shrouded - 4 Wall	2.54 µm	100 µin	UL94 V-0	2.54 mm	0.1 in	1 A	Solder	Gold or Gold-Palladium	Board to Cable/Wire	-65 ░C	105 ░C	Through Hole	0.1 in	2.54 mm	Latch Lock/Eject Hooks Long	0.549 in	13.94 mm	2	3.94 mm	0.155 "	6.1 mm	0.24 in	Tin	250 VAC	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 12.86
		18	$ 11.63
		90	$ 10.89
		450	$ 10.03
		954	$ 9.66

Description

General part information

AMP-LATCH Universal Headers Series

Headers & Wire Housings 034 UNIV HDR RA 4S 1
