1-215911-4

Active

TE Connectivity Raychem Cable Protection

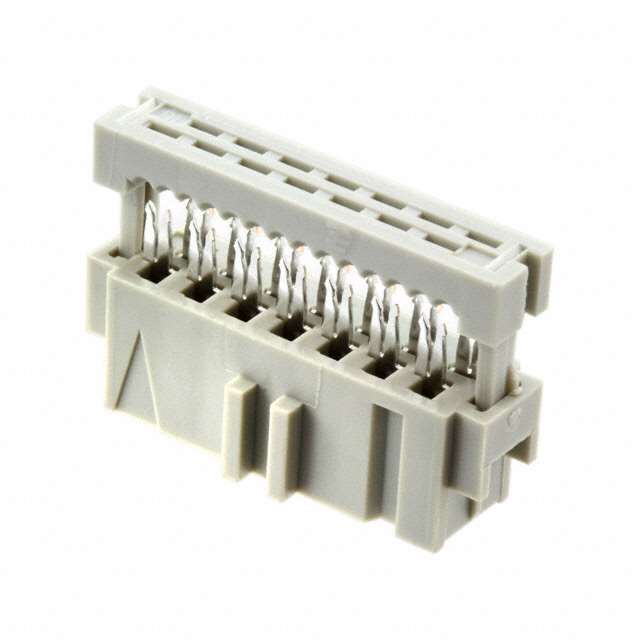

CONN RCPT 14POS IDC GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1-215911-4

Active

TE Connectivity Raychem Cable Protection

CONN RCPT 14POS IDC GOLD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1-215911-4

Cable Termination	IDC
Color	Gray
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	8 çin
Contact Finish Thickness	0.203 çm
Contact Type	Female Socket
Features	Polarizing Key, Feed Through
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Positions	14
Number of Rows	2
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Row Spacing	2.54 mm
Row Spacing [x]	0.1 in
Wire Type	Ribbon Cable

AMP-LATCH - NOVO Series

Part	Cable Termination	Number of Rows	Features	Row Spacing [x]	Row Spacing	Contact Type	Wire Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Color	Wire Gauge [Min]	Wire Gauge	Wire Gauge [Max]	Number of Positions
TE Connectivity Raychem Cable Protection 6-215911-4	IDC	2	Feed Through Polarizing Key	0.1 in	2.54 mm	Female Socket	Ribbon Cable	Gold	8 çin	0.203 çm	Free Hanging (In-Line) Right Angle	2.54 mm	0.1 in	Receptacle	64	Gray
TE Connectivity Raychem Cable Protection 1-215911-0	IDC	2	Feed Through Polarizing Key	0.1 in	2.54 mm	Female Socket	Ribbon Cable	Gold Gold-Palladium	8 çin	0.203 çm	Free Hanging (In-Line) Right Angle	2.54 mm	0.1 in	Receptacle	10	Gray
TE Connectivity Raychem Cable Protection 215882-6
TE Connectivity Raychem Cable Protection 1658618-3	IDC	2	Feed Through	0.1 in	2.54 mm	Forked	Ribbon Cable	Gold	15 µin	0.38 µm	Free Hanging (In-Line)	2.54 mm	0.1 in	Receptacle	40	Gray
TE Connectivity Raychem Cable Protection 2-215882-6	IDC	2	Feed Through Polarizing Key	0.1 in	2.54 mm	Female Socket	Ribbon Cable	Gold	30 Áin	0.76 Ám	Free Hanging (In-Line)	2.54 mm	0.1 in	Receptacle	26	Gray
TE Connectivity Raychem Cable Protection 1-1658622-3	IDC	2	Feed Through Polarizing Key	0.1 in	2.54 mm	Forked	Ribbon Cable	Gold Gold-Palladium	30 Áin	0.76 Ám	Free Hanging (In-Line)	2.54 mm	0.1 in	Receptacle	44	Black
TE Connectivity Raychem Cable Protection 4-215882-0	IDC	2	Feed Through Polarizing Key	0.1 in	2.54 mm	Female Socket	Ribbon Cable	Gold	30 Áin	0.76 Ám	Free Hanging (In-Line)	2.54 mm	0.1 in	Receptacle	40	Gray
TE Connectivity Raychem Cable Protection 5-215911-0	IDC	2	Feed Through Polarizing Key	0.1 in	2.54 mm	Female Socket	Ribbon Cable	Gold	8 çin	0.203 çm	Free Hanging (In-Line) Right Angle	2.54 mm	0.1 in	Receptacle	50	Gray
TE Connectivity Raychem Cable Protection 1-215882-6	IDC	2	Feed Through Polarizing Key	0.1 in	2.54 mm	Female Socket	Ribbon Cable	Gold	31.5 µin	0.8 µm	Free Hanging (In-Line)	2.54 mm	0.1 in	Receptacle		Gray	26 AWG	28 AWG Stranded	30 AWG	16
TE Connectivity Raychem Cable Protection 1-215911-4	IDC	2	Feed Through Polarizing Key	0.1 in	2.54 mm	Female Socket	Ribbon Cable	Gold	8 çin	0.203 çm	Free Hanging (In-Line) Right Angle	2.54 mm	0.1 in	Receptacle	14	Gray

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 1.68
		10	$ 1.53
		25	$ 1.49
		84	$ 1.47
		252	$ 1.35
		504	$ 1.22
		1008	$ 1.10

Description

General part information

AMP-LATCH - NOVO Series

14 Position Rectangular Receptacle Connector IDC Gold
