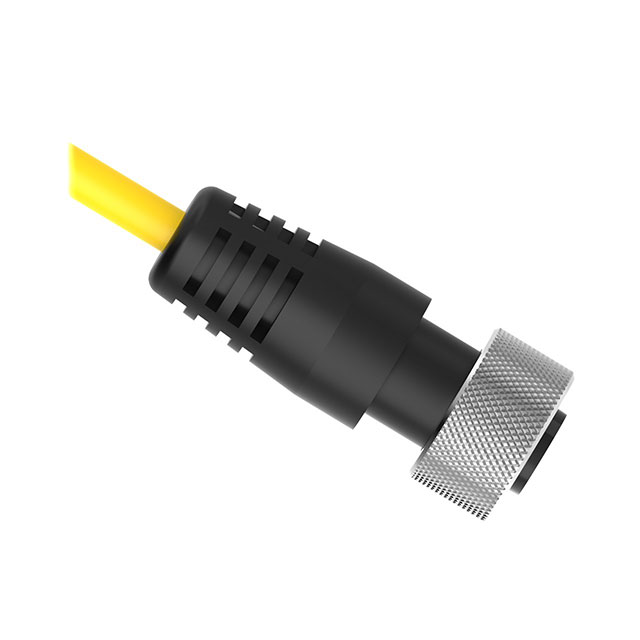

QDC-525C

Active

BANNER ENGINEERING

CIRC CBL 5POS PLUG TO WIRE 25'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QDC-525C

Active

BANNER ENGINEERING

CIRC CBL 5POS PLUG TO WIRE 25'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QDC-525C

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5
1st Connector Number of Positions Loaded	4
1st Connector Shell Size - Insert	0.875 in
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Ingress Protection	IP67 - Dust Tight, Waterproof
Length	25 ft
Length	7.62 m
Shielding	Shielded
Usage	Industrial Environments

QDC Series

Part	Cable Type	Length	Length	Color	1st Connector Shell Size - Insert	Assembly Configuration	Shielding	1st Connector Number of Positions Loaded	1st Connector Gender	2nd Connector Type	1st Connector Type	Cable Material	1st Connector Number of Positions	1st Connector Mounting Type	Usage	Ingress Protection	Length [x]	Length [x]
BANNER ENGINEERING QDC-550	Round	15.24 m	50 ft	Yellow	0.875 in	Standard	Shielded	4	Female Sockets	Wire Leads	Plug	Polyvinyl Chloride (PVC)	5	Free Hanging (In-Line)
BANNER ENGINEERING QDC-550C	Round	15.24 m	50 ft	Yellow	0.875 in	Standard	Shielded	4	Female Sockets	Wire Leads	Plug	Polyvinyl Chloride (PVC)	5	Free Hanging (In-Line)	Industrial Environments	IP67 - Dust Tight Waterproof
BANNER ENGINEERING QDC-5100	Round			Yellow	0.875 in	Standard	Shielded	4	Female Sockets	Wire Leads	Plug	Polyvinyl Chloride (PVC)	5	Free Hanging (In-Line)			30.5 m	100 ft
BANNER ENGINEERING QDC-5150	Round			Yellow	0.875 in	Standard	Shielded	4	Female Sockets	Wire Leads	Plug	Polyvinyl Chloride (PVC)	5	Free Hanging (In-Line)			45.7 m	1800 in
BANNER ENGINEERING QDC-525C	Round	7.62 m	25 ft	Yellow	0.875 in	Standard	Shielded	4	Female Sockets	Wire Leads	Plug	Polyvinyl Chloride (PVC)	5	Free Hanging (In-Line)	Industrial Environments	IP67 - Dust Tight Waterproof
BANNER ENGINEERING QDC-575	Round	22.9 m	22.86 m	Yellow	0.875 in	Standard	Shielded	4	Female Sockets	Wire Leads	Plug	Polyvinyl Chloride (PVC)	5	Free Hanging (In-Line)
BANNER ENGINEERING QDC-5125	Round	38 m	124.7 ft	Yellow	0.875 in	Standard	Shielded	4	Female Sockets	Wire Leads	Plug	Polyvinyl Chloride (PVC)	5	Free Hanging (In-Line)
BANNER ENGINEERING QDC-515C	Round			Yellow	0.875 in	Standard	Shielded	4	Female Sockets	Wire Leads	Plug	Polyvinyl Chloride (PVC)	5	Free Hanging (In-Line)	Industrial Environments	IP67 - Dust Tight Waterproof	4.57 m	15 ft

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.00
Newark	Each	1	$ 108.00

Description

General part information

QDC Series

Circular Cable Assembly Shielded 25.0' (7.62m)
