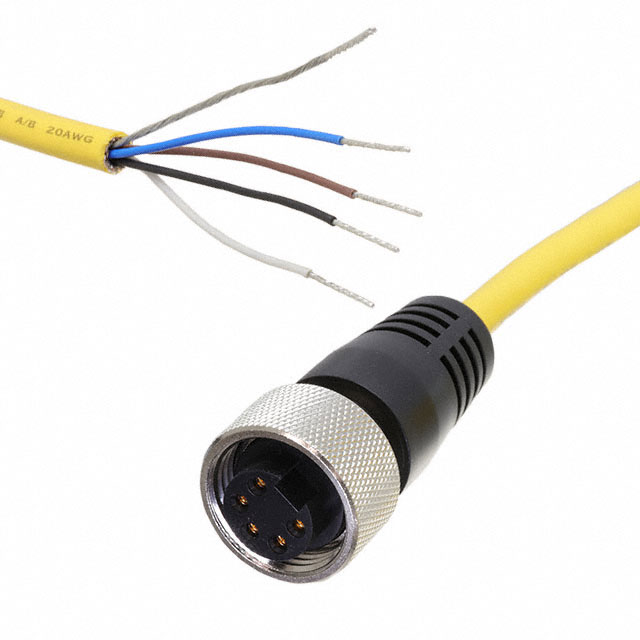

QDC-515C
ActiveBANNER ENGINEERING
CIRC CBL 5POS PLUG TO WIRE 15'
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QDC-515C
ActiveBANNER ENGINEERING
CIRC CBL 5POS PLUG TO WIRE 15'
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | QDC-515C |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 5 |
| 1st Connector Number of Positions Loaded | 4 |
| 1st Connector Shell Size - Insert | 0.875 in |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Yellow |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 15 ft |
| Length [x] | 4.57 m |
| Shielding | Shielded |
| Usage | Industrial Environments |
QDC Series
| Part | Cable Type | Length | Length | Color | 1st Connector Shell Size - Insert | Assembly Configuration | Shielding | 1st Connector Number of Positions Loaded | 1st Connector Gender | 2nd Connector Type | 1st Connector Type | Cable Material | 1st Connector Number of Positions | 1st Connector Mounting Type | Usage | Ingress Protection | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BANNER ENGINEERING | Round | 15.24 m | 50 ft | Yellow | 0.875 in | Standard | Shielded | 4 | Female Sockets | Wire Leads | Plug | Polyvinyl Chloride (PVC) | 5 | Free Hanging (In-Line) | ||||
BANNER ENGINEERING | Round | 15.24 m | 50 ft | Yellow | 0.875 in | Standard | Shielded | 4 | Female Sockets | Wire Leads | Plug | Polyvinyl Chloride (PVC) | 5 | Free Hanging (In-Line) | Industrial Environments | IP67 - Dust Tight Waterproof | ||
BANNER ENGINEERING | Round | Yellow | 0.875 in | Standard | Shielded | 4 | Female Sockets | Wire Leads | Plug | Polyvinyl Chloride (PVC) | 5 | Free Hanging (In-Line) | 30.5 m | 100 ft | ||||
BANNER ENGINEERING | Round | Yellow | 0.875 in | Standard | Shielded | 4 | Female Sockets | Wire Leads | Plug | Polyvinyl Chloride (PVC) | 5 | Free Hanging (In-Line) | 45.7 m | 1800 in | ||||
BANNER ENGINEERING | Round | 7.62 m | 25 ft | Yellow | 0.875 in | Standard | Shielded | 4 | Female Sockets | Wire Leads | Plug | Polyvinyl Chloride (PVC) | 5 | Free Hanging (In-Line) | Industrial Environments | IP67 - Dust Tight Waterproof | ||
BANNER ENGINEERING | Round | 22.9 m | 22.86 m | Yellow | 0.875 in | Standard | Shielded | 4 | Female Sockets | Wire Leads | Plug | Polyvinyl Chloride (PVC) | 5 | Free Hanging (In-Line) | ||||
BANNER ENGINEERING | Round | 38 m | 124.7 ft | Yellow | 0.875 in | Standard | Shielded | 4 | Female Sockets | Wire Leads | Plug | Polyvinyl Chloride (PVC) | 5 | Free Hanging (In-Line) | ||||
BANNER ENGINEERING | Round | Yellow | 0.875 in | Standard | Shielded | 4 | Female Sockets | Wire Leads | Plug | Polyvinyl Chloride (PVC) | 5 | Free Hanging (In-Line) | Industrial Environments | IP67 - Dust Tight Waterproof | 4.57 m | 15 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
QDC Series
Circular Cable Assembly Shielded 15.00' (4.57m)
