QDC-5100

Obsolete

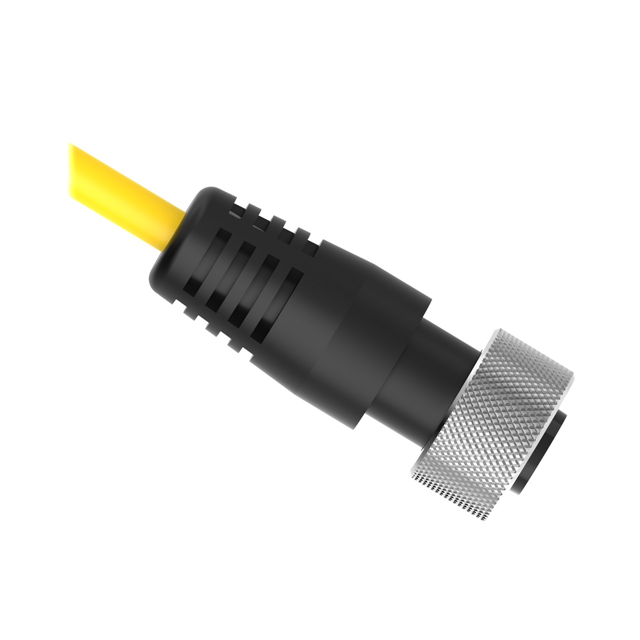

SENSOR CABLES / ACTUATOR CABLES CORDSET 7/8 IN SINGLE ENDED; 4-PIN STRAIGHT FEMALE CONNECTOR WITH SHIELD; 30.5 M (100.04 FT) IN LENGTH; YELLOW PVC JACKET, NICKEL-PLATED BRASS NUT

Find alt

Alpha

QDC-5100

Obsolete

BANNER ENGINEERING

SENSOR CABLES / ACTUATOR CABLES CORDSET 7/8 IN SINGLE ENDED; 4-PIN STRAIGHT FEMALE CONNECTOR WITH SHIELD; 30.5 M (100.04 FT) IN LENGTH; YELLOW PVC JACKET, NICKEL-PLATED BRASS NUT

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

QDC Series

Circular Cable Assembly Shielded 100.0' (30.5m)

Technical Specifications

Parameters and characteristics for this part

Specification	QDC-5100

1st Connector Gender	Female Sockets
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	5 positions
1st Connector Number of Positions Loaded	4 positions
1st Connector Shell Size - Insert (Size)	0.875 in
1st Connector Type	Plug
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Yellow
Length	100 ft
Shielding	Shielded

QDC Series

Part	1st Connector Shell Size - Insert (Size)	1st Connector Number of Positions	Color	1st Connector Type	1st Connector Number of Positions Loaded	Shielding	Cable Type	2nd Connector Type	Length	Assembly Configuration	1st Connector Gender	Cable Material	1st Connector Mounting Type	Usage	Ingress Protection Description	Ingress Protection IP Rating
BANNER ENGINEERING QDC-550	0.875 in	5 positions	Yellow	Plug	4 positions	Shielded	Round	Wire Leads	50 ft	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)
BANNER ENGINEERING QDC-550C	0.875 in	5 positions	Yellow	Plug	4 positions	Shielded	Round	Wire Leads	50 ft	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Industrial Environments	Dust Tight Waterproof	IP67
BANNER ENGINEERING QDC-5100	0.875 in	5 positions	Yellow	Plug	4 positions	Shielded	Round	Wire Leads	100 ft	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)
BANNER ENGINEERING QDC-525	0.875 in	5 positions	Yellow	Plug	4 positions	Shielded	Round	Wire Leads	25 ft	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)
BANNER ENGINEERING QDC-5150	0.875 in	5 positions	Yellow	Plug	4 positions	Shielded	Round	Wire Leads	150 ft	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)
BANNER ENGINEERING QDC-525C	0.875 in	5 positions	Yellow	Plug	4 positions	Shielded	Round	Wire Leads	25 ft	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Industrial Environments	Dust Tight Waterproof	IP67
BANNER ENGINEERING QDC-575	0.875 in	5 positions	Yellow	Plug	4 positions	Shielded	Round	Wire Leads	75 ft	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)
BANNER ENGINEERING QDC-5125	0.875 in	5 positions	Yellow	Plug	4 positions	Shielded	Round	Wire Leads	124.7 ft	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)
BANNER ENGINEERING QDC-515C	0.875 in	5 positions	Yellow	Plug	4 positions	Shielded	Round	Wire Leads	15 ft	Standard	Female Sockets	Polyvinyl Chloride (PVC)	Free Hanging (In-Line)	Industrial Environments	Dust Tight Waterproof	IP67
