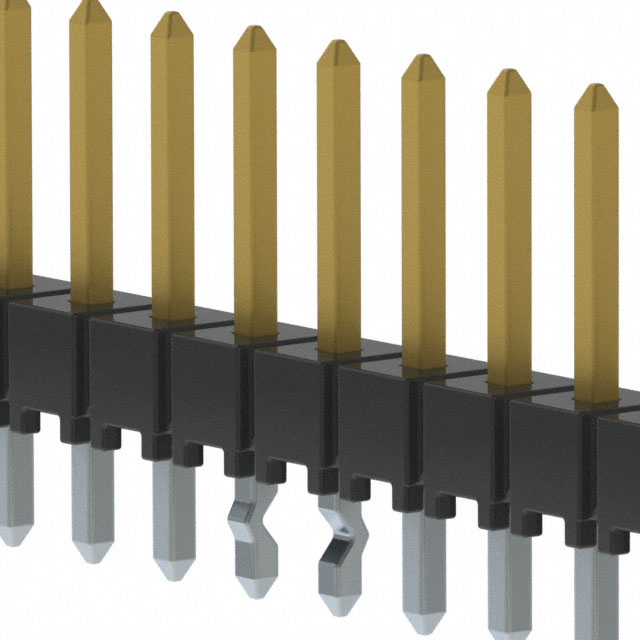

HTSW-140-07-SS-S-LL

Active

Samtec Inc.

CONN HEADER VERT 40POS 2.54MM

HTSW-140-07-SS-S-LL

Active

Samtec Inc.

CONN HEADER VERT 40POS 2.54MM

Description Specifications Series Pricing CAD Documents

Description

General part information

HTSW-140 Series

Connector Header Through Hole 40 position 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

Specification	HTSW-140-07-SS-S-LL

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	30 µin
Contact Length - Mating	0.23 in
Contact Length - Post	0.1 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	0 A
Current Rating	Varies by Wire Gauge
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.1 in
Insulation Material	Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Overall Contact Length	0.43 in
Pitch - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Kinked Pin, Solder

HTSW-140 Series

Part	Contact Shape	Contact Finish - Post	Number of Positions Loaded	Fastening Type	Contact Length - Post	Number of Rows	Current Rating	Current Rating	Pitch - Mating	Material Flammability Rating	Insulation Material	Insulation Height	Connector Type	Number of Positions	Contact Type	Mounting Type	Contact Material	Contact Finish - Mating	Shrouding	Contact Length - Mating	Operating Temperature (Max)	Operating Temperature (Min)	Overall Contact Length	Style	Contact Finish Thickness - Mating	Insulation Color	Termination	Row Spacing - Mating	Contact Finish Thickness - Post
Samtec Inc. HTSW-140-07-SS-S-LL	Square	Tin	All	Push-Pull	0.1 in	1	0 A	Varies by Wire Gauge	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	0.1 in	Header	40	Male Pin	Through Hole	Phosphor Bronze	Gold	Unshrouded	0.23 in	125 °C	-55 °C	0.43 in	Board Board or Cable	30 µin	Natural	Kinked Pin Solder
Samtec Inc. HTSW-140-05-F-T	Square	Tin	All	Push-Pull	0.13 in	3	0 A	Varies by Wire Gauge	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	0.1 in	Header	120	Male Pin	Through Hole	Phosphor Bronze	Gold	Unshrouded	0.105 in	125 °C	-55 °C	0.335 in	Board Board or Cable	3 µin	Natural	Solder	0.1 in
Samtec Inc. HTSW-140-14-G-D	Square	Gold	All	Push-Pull	0.11 in	2	0 A	Varies by Wire Gauge	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	0.1 in	Header	80	Male Pin	Through Hole	Phosphor Bronze	Gold	Unshrouded	0.32 in	125 °C	-55 °C	0.53 in	Board Board or Cable	10 µin	Natural	Solder	0.1 in	3 µin
Samtec Inc. HTSW-140-08-L-T	Square	Tin	All	Push-Pull	0.2 in	3	0 A	Varies by Wire Gauge	0.1 in		Liquid Crystal Polymer (LCP)		Header	120	Male Pin	Through Hole	Phosphor Bronze	Gold	Unshrouded	0.23 in			0.53 in	Board Board or Cable	10 µin	Natural	Solder	0.1 in
Samtec Inc. HTSW-140-06-F-S	Square	Tin	All	Push-Pull	0.095 in	1	0 A	Varies by Wire Gauge	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	0.1 in	Header	40	Male Pin	Through Hole	Phosphor Bronze	Gold	Unshrouded	0.105 in	125 °C	-55 °C	0.3 in	Board Board or Cable	3 µin	Natural	Solder
Samtec Inc. HTSW-140-08-L-D-RA	Square	Tin		Push-Pull		2			0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)		Header	80	Male Pin	Right Angle Through Hole	Phosphor Bronze	Gold	Unshrouded		125 °C	-55 °C		Board Board or Cable		Natural	Solder
Samtec Inc. HTSW-140-08-L-D	Square	Tin	All	Push-Pull	0.2 in	2	0 A	Varies by Wire Gauge	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	0.1 in	Header	80	Male Pin	Through Hole	Phosphor Bronze	Gold	Unshrouded	0.23 in	125 °C	-55 °C	0.53 in	Board Board or Cable	10 µin	Natural	Solder	0.1 in
Samtec Inc. HTSW-140-21-L-D	Square	Tin	All	Push-Pull	0.11 in	2	0 A	Varies by Wire Gauge	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	0.1 in	Header	80	Male Pin	Through Hole	Phosphor Bronze	Gold	Unshrouded	1.22 in	125 °C	-55 °C	1.43 in	Board Board or Cable	10 µin	Natural	Solder	0.1 in
Samtec Inc. HTSW-140-15-G-S	Square	Gold	All	Push-Pull	0.11 in	1	0 A	Varies by Wire Gauge	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	0.1 in	Header	40	Male Pin	Through Hole	Phosphor Bronze	Gold	Unshrouded	0.52 in	125 °C	-55 °C	0.73 in	Board Board or Cable	10 µin	Natural	Solder		3 µin
Samtec Inc. HTSW-140-14-F-D-LL	Square	Tin	All	Push-Pull	0.11 in	2	0 A	Varies by Wire Gauge	0.1 in	UL94 V-0	Liquid Crystal Polymer (LCP)	0.1 in	Header	80	Male Pin	Through Hole	Phosphor Bronze	Gold	Unshrouded	0.32 in	125 °C	-55 °C	0.53 in	Board Board or Cable	3 µin	Natural	Kinked Pin Solder	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

HTSW-140-07-SS-S-LL | Datasheet
