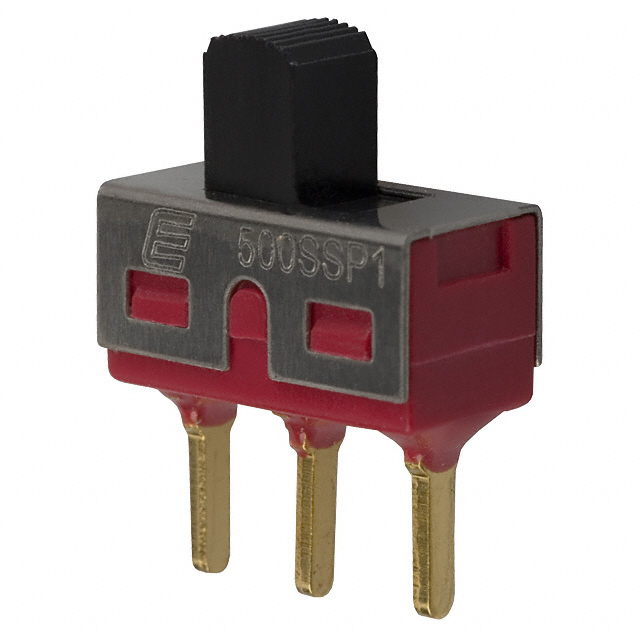

500SSP1S1M2REA

Active

E-Switch

SWITCH: SLIDE; POS: 2; SPDT; 0.02A/20VAC; 0.02A/20VDC; ON-ON; THT

Deep-Dive with AI

Search across all available documentation for this part.

500SSP1S1M2REA

Active

E-Switch

SWITCH: SLIDE; POS: 2; SPDT; 0.02A/20VAC; 0.02A/20VDC; ON-ON; THT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	500SSP1S1M2REA

Actuator Length [x]	5.08 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Gold
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	0.4 VA
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	30000 Steps
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Switch Travel [custom]	2.16 mm
Termination Style	PC Pin
Voltage Rating - AC	20 V
Voltage Rating - DC	20 V

500SSP1 Series

Part	Features	Current Rating (Amps)	Switch Travel [custom]	Actuator Material	Voltage Rating - DC	Contact Finish	Mechanical Life	Actuator Length [x]	Circuit	Electrical Life	Actuator Type	Termination Style	Contact Material	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Contact Timing	Mounting Type
E-Switch 500SSP1S3M6REA	Epoxy Sealed Terminals	0.4 VA	2.16 mm	Nylon Polyamide (PA)	20 V	Gold	30000 Steps	9.04 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	20 V	Not Specified	Through Hole Right Angle
E-Switch 500SSP1S1M2REA	Epoxy Sealed Terminals	0.4 VA	2.16 mm	Nylon Polyamide (PA)	20 V	Gold	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	20 V	Not Specified	Through Hole
E-Switch 500SSP1S2M6QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	6.88 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified	Through Hole Right Angle
E-Switch 500SSP1S1M1REA	Epoxy Sealed Terminals	0.4 VA	2.16 mm	Nylon Polyamide (PA)	20 V	Gold	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	Solder Lug	Copper Alloy	On-On	-30 ░C	85 °C	20 V	Not Specified
E-Switch 500SSP1S1M6QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	4.72 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified	Through Hole Right Angle
E-Switch 500SSP3S1M2REB	Epoxy Sealed Terminals	0.4 VA	2.16 mm	Nylon Polyamide (PA)	20 V	Gold	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-Off-On	-30 ░C	85 °C	20 V	Not Specified
E-Switch 500SSP1S3M7QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	9.04 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified	Right Angle Through Hole Vertical
E-Switch 500SSP1S1M1QEB	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	Solder Lug	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified
E-Switch 500SSP1S1M2QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified	Through Hole
E-Switch 500SSP3S2M7QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	6.88 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-Off-On	-30 ░C	85 °C	120 V	Not Specified	Right Angle Through Hole Vertical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.51
		10	$ 3.37
		25	$ 3.08
		100	$ 2.67
		250	$ 2.42
		500	$ 2.24
		1000	$ 2.08
		2500	$ 1.89
		5000	$ 1.81
TME	N/A	252	$ 4.26

Description

General part information

500SSP1 Series

Slide Switch SPDT Through Hole

Documents

Technical documentation and resources

No documents available
