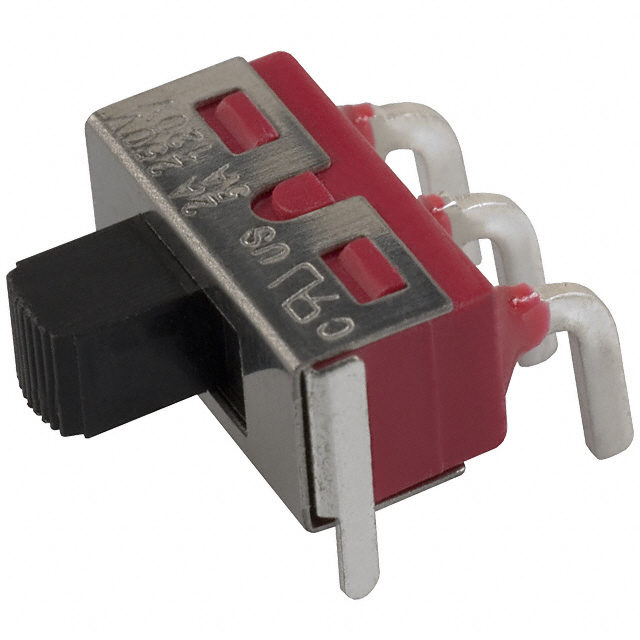

500SSP1S1M6QEA

Active

E-Switch

SWITCH SLIDE SPDT 5A 120V

Deep-Dive with AI

Search across all available documentation for this part.

500SSP1S1M6QEA

Active

E-Switch

SWITCH SLIDE SPDT 5A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	500SSP1S1M6QEA

Actuator Length [x]	4.72 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Silver
Contact Material	Copper Alloy
Contact Timing	Not Specified
Current Rating (Amps)	5 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life	30000 Steps
Mounting Type	Through Hole, Right Angle
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Switch Travel [custom]	2.16 mm
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

500SSP1 Series

Part	Features	Current Rating (Amps)	Switch Travel [custom]	Actuator Material	Voltage Rating - DC	Contact Finish	Mechanical Life	Actuator Length [x]	Circuit	Electrical Life	Actuator Type	Termination Style	Contact Material	Switch Function	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - AC	Contact Timing	Mounting Type
E-Switch 500SSP1S3M6REA	Epoxy Sealed Terminals	0.4 VA	2.16 mm	Nylon Polyamide (PA)	20 V	Gold	30000 Steps	9.04 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	20 V	Not Specified	Through Hole Right Angle
E-Switch 500SSP1S1M2REA	Epoxy Sealed Terminals	0.4 VA	2.16 mm	Nylon Polyamide (PA)	20 V	Gold	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	20 V	Not Specified	Through Hole
E-Switch 500SSP1S2M6QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	6.88 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified	Through Hole Right Angle
E-Switch 500SSP1S1M1REA	Epoxy Sealed Terminals	0.4 VA	2.16 mm	Nylon Polyamide (PA)	20 V	Gold	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	Solder Lug	Copper Alloy	On-On	-30 ░C	85 °C	20 V	Not Specified
E-Switch 500SSP1S1M6QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	4.72 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified	Through Hole Right Angle
E-Switch 500SSP3S1M2REB	Epoxy Sealed Terminals	0.4 VA	2.16 mm	Nylon Polyamide (PA)	20 V	Gold	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-Off-On	-30 ░C	85 °C	20 V	Not Specified
E-Switch 500SSP1S3M7QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	9.04 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified	Right Angle Through Hole Vertical
E-Switch 500SSP1S1M1QEB	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	Solder Lug	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified
E-Switch 500SSP1S1M2QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	5.08 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-On	-30 ░C	85 °C	120 V	Not Specified	Through Hole
E-Switch 500SSP3S2M7QEA	Epoxy Sealed Terminals	5 A	2.16 mm	Nylon Polyamide (PA)	28 V	Silver	30000 Steps	6.88 mm	SPDT	30000 Cycles	Standard	PC Pin	Copper Alloy	On-Off-On	-30 ░C	85 °C	120 V	Not Specified	Right Angle Through Hole Vertical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.45
		10	$ 3.31
		25	$ 3.02
		162	$ 2.62
		324	$ 2.37
		648	$ 2.20
		1134	$ 2.04
		2592	$ 1.85
		5022	$ 1.78

Description

General part information

500SSP1 Series

Slide Switch SPDT Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
