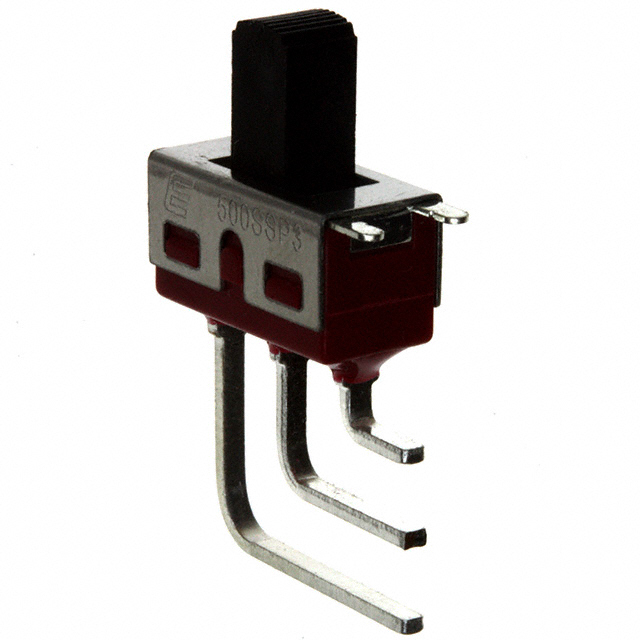

Specification	500SSP3S2M7QEA

Actuator Length	6.88 mm
Actuator Material	Nylon, Polyamide (PA)
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating	5 A
Electrical Life (Cycles)	30000 Cycles
Features	Epoxy Sealed Terminals
Mechanical Life (Cycles)	30000 Cycles
Mounting Type	Vertical, Right Angle, Through Hole
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Switch Function	On-Off-On
Switch Travel	2.16 mm
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

500 Series

Part	Switch Function	Actuator Length	Features	Voltage Rating - DC	Current Rating	Mounting Type	Voltage Rating - AC	Operating Temperature (Max)	Operating Temperature (Min)	Contact Finish	Contact Material	Termination Style	Circuit	Actuator Type	Mechanical Life (Cycles)	Actuator Material	Electrical Life (Cycles)	Switch Travel
E-Switch 500SSP3S3M7QEA	On-Off-On	9.04 mm	Epoxy Sealed Terminals	28 V	5 A	Right Angle Through Hole Vertical	120 V	85 °C	-30 °C	Silver	Copper Alloy	PC Pin	SPDT	Standard
E-Switch 500SSP3S1M2REB	On-Off-On	5.08 mm	Epoxy Sealed Terminals	20 V	0.4 VA	Panel Mount	20 V	85 °C	-30 °C	Gold	Copper Alloy	PC Pin	SPDT	Standard	30000 Cycles	Nylon Polyamide (PA)	30000 Cycles	2.16 mm
E-Switch 500SDP1S4M1REB	On-On	3.56 mm		20 V	0.4 VA	Panel Mount	20 V	85 °C	-30 °C	Gold	Copper Alloy	Solder Lug	DPDT	Standard
E-Switch 500SDP1S3M2QEA	On-On	9.4 mm	Epoxy Sealed Terminals	28 V	5 A	Through Hole	120 V	85 °C	-30 °C	Silver	Copper Alloy	PC Pin	DPDT	Standard
E-Switch 500SSP1S1M1QEA	On-On	5.08 mm	Epoxy Sealed Terminals	28 V	5 A	Panel Mount	120 V	85 °C	-30 °C	Silver	Copper Alloy	Solder Lug	SPDT	Standard
E-Switch 500SSP1S2M7REA	On-On	6.88 mm	Epoxy Sealed Terminals	20 V	0.4 VA	Right Angle Through Hole Vertical	20 V	85 °C	-30 °C	Gold	Copper Alloy	PC Pin	SPDT	Standard
E-Switch 500SSP1S2M6REA	On-On	6.88 mm	Epoxy Sealed Terminals	20 V	0.4 VA	Right Angle Through Hole	20 V	85 °C	-30 °C	Gold	Copper Alloy	PC Pin	SPDT	Standard
E-Switch 500SSP3S2M7QEA	On-Off-On	6.88 mm	Epoxy Sealed Terminals	28 V	5 A	Right Angle Through Hole Vertical	120 V	85 °C	-30 °C	Silver	Copper Alloy	PC Pin	SPDT	Standard	30000 Cycles	Nylon Polyamide (PA)	30000 Cycles	2.16 mm
E-Switch 500SSP1S3M7REA	On-On	9.04 mm	Epoxy Sealed Terminals	20 V	0.4 VA	Right Angle Through Hole Vertical	20 V	85 °C	-30 °C	Gold	Copper Alloy	PC Pin	SPDT	Standard
E-Switch 500SDP1S1M2REA	On-On	5.08 mm	Epoxy Sealed Terminals	20 V	0.4 VA	Through Hole	20 V	85 °C	-30 °C	Gold	Copper Alloy	PC Pin	DPDT	Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

500SSP3S2M7QEA.pdf
