M80-8412042

Active

Harwin Inc.

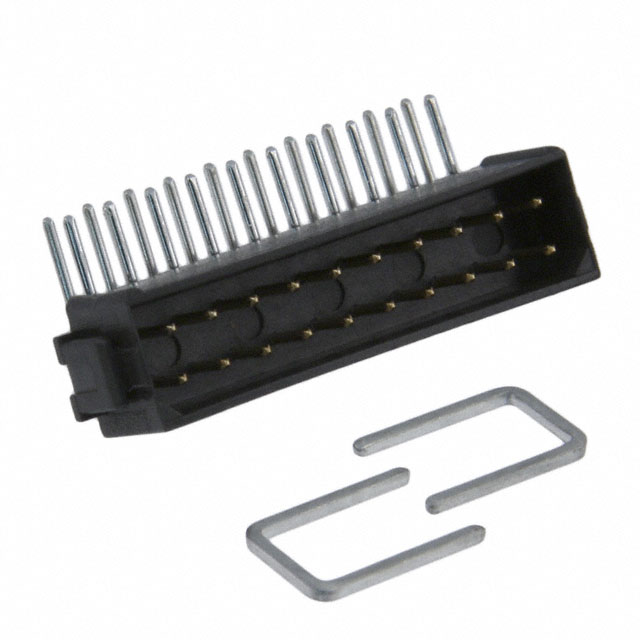

10+10 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. NO LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet M80-0110001 +2

M80-8412042

Active

Harwin Inc.

10+10 POS. MALE DIL HORIZONTAL THROUGHBOARD CONN. NO LATCHES ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet M80-0110001 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8412042

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Holder
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height	5.97 mm
Insulation Height	0.235 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-841 Series

Part	Shrouding	Contact Shape	Insulation Height	Insulation Height	Connector Type	Number of Rows	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Material	Fastening Type	Style	Number of Positions	Contact Finish - Mating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Termination	Features
Harwin Inc. M80-8410642	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	6	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8410842	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	8	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411042	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	10	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8412645	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Gold	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	26	Gold	Black			0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411045	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Gold	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	10	Gold	Black			0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8410645	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Gold	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	6	Gold	Black			0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411842	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	18	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8412042	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	20	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411442	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	14	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411845	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Gold	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	18	Gold	Black			0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 7.32
		10	$ 6.62
		100	$ 5.80
		500	$ 4.88
		1000	$ 4.27
Newark	Each	100	$ 6.35
		250	$ 5.86
		500	$ 5.41
		1000	$ 4.96
		2500	$ 4.47

Description

General part information

M80-841 Series

Connector Header Through Hole, Right Angle 20 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

M80-0110001

M80-001

M80, M83 Series Spec Sheet

Datasheet
