M80-8410642

Active

Harwin Inc.

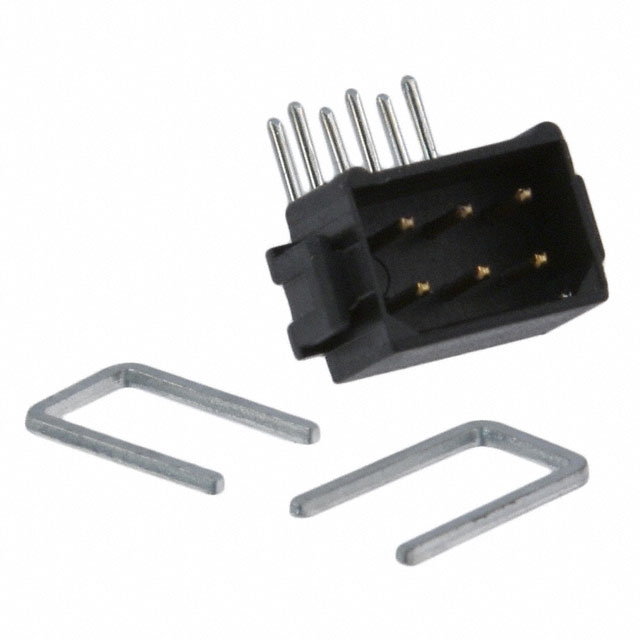

CONN, R/A HDR, 6POS, 2ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80, M83 Series Spec Sheet Datamate range: signal connectors (HRi)+1

M80-8410642

Active

Harwin Inc.

CONN, R/A HDR, 6POS, 2ROW, 2MM ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80, M83 Series Spec Sheet Datamate range: signal connectors (HRi)+1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8410642

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	3 µm
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Fastening Type	Latch Holder
Features	Strain Relief Clips
Insulation Color	Black
Insulation Height	5.97 mm
Insulation Height	0.235 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	6
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	120 VDC

M80-841 Series

Part	Shrouding	Contact Shape	Insulation Height	Insulation Height	Connector Type	Number of Rows	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Contact Material	Fastening Type	Style	Number of Positions	Contact Finish - Mating	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating [x]	Pitch - Mating [x]	Contact Length - Post	Contact Length - Post	Termination	Features
Harwin Inc. M80-8410642	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	6	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8410842	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	8	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411042	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	10	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8412645	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Gold	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	26	Gold	Black			0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411045	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Gold	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	10	Gold	Black			0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8410645	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Gold	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	6	Gold	Black			0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411842	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	18	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8412042	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	20	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411442	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Tin	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	14	Gold	Black	3 µm	118.1 µin	0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
Harwin Inc. M80-8411845	Shrouded - 4 Wall	Circular	5.97 mm	0.235 in	Header	2	UL94 V-0	120 VDC	2.2 A	29.5 Áin	0.75 Ám	-55 °C	125 °C	Gold	Through Hole Right Angle	All	Male Pin	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	Phosphor Bronze	Latch Holder	Board to Board Cable	18	Gold	Black			0.079 in	2 mm	0.118 in	3 mm	Solder	Strain Relief Clips
