M80-8411442
ActiveHarwin Inc.

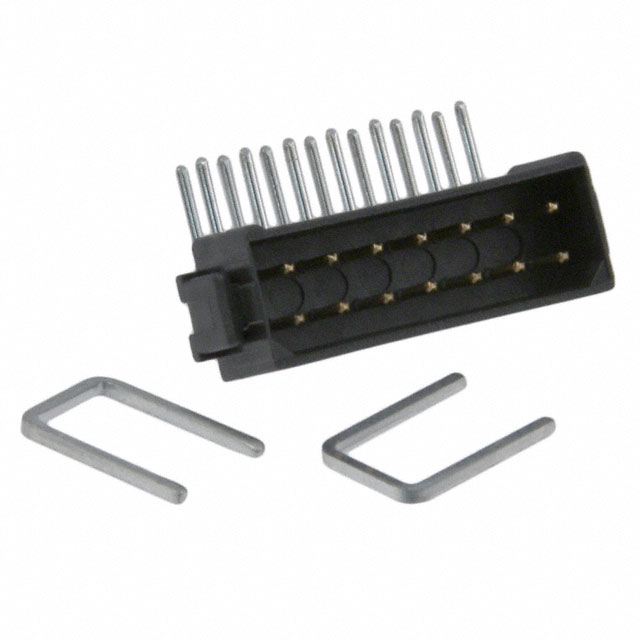

BOARD CONNECTOR, 14 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, PLUG, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
M80-8411442
ActiveHarwin Inc.
BOARD CONNECTOR, 14 CONTACT(S), 2 ROW(S), MALE, RIGHT ANGLE, 0.079 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, PLUG, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M80-8411442 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 29.5 Áin |
| Contact Finish Thickness - Mating | 0.75 Ám |
| Contact Finish Thickness - Post | 3 µm |
| Contact Finish Thickness - Post | 118.1 µin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Current Rating (Amps) | 2.2 A |
| Fastening Type | Latch Holder |
| Features | Strain Relief Clips |
| Insulation Color | Black |
| Insulation Height | 5.97 mm |
| Insulation Height | 0.235 in |
| Insulation Material | Polyphenylene Sulfide (PPS), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 14 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch - Mating [x] | 0.079 in |
| Pitch - Mating [x] | 2 mm |
| Row Spacing - Mating | 0.079 in |
| Row Spacing - Mating | 2 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 120 VDC |
M80-841 Series
| Part | Shrouding | Contact Shape | Insulation Height | Insulation Height | Connector Type | Number of Rows | Material Flammability Rating | Voltage Rating | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish - Post | Mounting Type | Number of Positions Loaded | Contact Type | Row Spacing - Mating | Row Spacing - Mating | Insulation Material | Contact Material | Fastening Type | Style | Number of Positions | Contact Finish - Mating | Insulation Color | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Pitch - Mating [x] | Pitch - Mating [x] | Contact Length - Post | Contact Length - Post | Termination | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Tin | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 6 | Gold | Black | 3 µm | 118.1 µin | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips |
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Tin | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 8 | Gold | Black | 3 µm | 118.1 µin | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips |
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Tin | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 10 | Gold | Black | 3 µm | 118.1 µin | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips |
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Gold | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 26 | Gold | Black | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips | ||
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Gold | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 10 | Gold | Black | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips | ||
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Gold | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 6 | Gold | Black | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips | ||
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Tin | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 18 | Gold | Black | 3 µm | 118.1 µin | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips |
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Tin | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 20 | Gold | Black | 3 µm | 118.1 µin | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips |
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Tin | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 14 | Gold | Black | 3 µm | 118.1 µin | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips |
Harwin Inc. | Shrouded - 4 Wall | Circular | 5.97 mm | 0.235 in | Header | 2 | UL94 V-0 | 120 VDC | 2.2 A | 29.5 Áin | 0.75 Ám | -55 °C | 125 °C | Gold | Through Hole Right Angle | All | Male Pin | 0.079 in | 2 mm | Polyphenylene Sulfide (PPS) Glass Filled | Phosphor Bronze | Latch Holder | Board to Board Cable | 18 | Gold | Black | 0.079 in | 2 mm | 0.118 in | 3 mm | Solder | Strain Relief Clips |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M80-841 Series
Connector Header Through Hole, Right Angle 14 position 0.079" (2.00mm)
