EB21A-06-D
ActiveAdam Tech

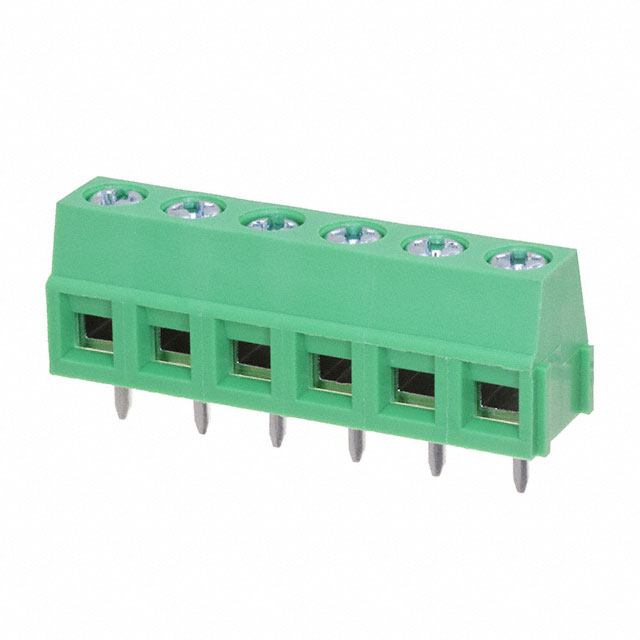

CONN TERMINAL BLOCK 6 POS 5.08MM SOLDER ST THRU-HOLE 8A BOX
Deep-Dive with AI
Search across all available documentation for this part.
EB21A-06-D
ActiveAdam Tech
CONN TERMINAL BLOCK 6 POS 5.08MM SOLDER ST THRU-HOLE 8A BOX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EB21A-06-D |
|---|---|
| Clamp Material - Plating | Brass - Nickel Plated |
| Color | Green |
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 8 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 6 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M2.5 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
EB21A Series
| Part | Wire Termination | Clamp Material - Plating | Color | Wire Gauge [Max] | Wire Gauge [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Current | Torque - Screw | Torque - Screw | Contact Material - Plating [custom] | Features | Mounting Type | Mating Orientation | Voltage | Screw Thread | Positions Per Level | Screw Material - Plating | Number of Levels | Pitch [x] | Pitch [x] | Contact Material - Plating | Mating Orientation | Mating Orientation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Screw - Rising Cage Clamp | Brass - Nickel Plated | Green | 26 AWG | 16 AWG | -40 °C | 105 ░C | 8 A | 0.4 Nm | 3.5 Lb-In | Brass - Tin Plated | Interlocking (Side) | Through Hole | Horizontal with Board | 300 V | M2.5 | 2 | Steel Zinc Plated | 1 | 5 mm | 0.197 in | |||
Adam Tech | Screw - Rising Cage Clamp | Brass - Nickel Plated | Green | 26 AWG | 16 AWG | -40 °C | 105 ░C | 8 A | 0.4 Nm | 3.5 Lb-In | Brass - Tin Plated | Interlocking (Side) | Through Hole | Horizontal with Board | 300 V | M2.5 | 4 | Steel Zinc Plated | 1 | 5 mm | 0.197 in | |||
Adam Tech | Screw - Rising Cage Clamp | Brass - Nickel Plated | Green | 26 AWG | 16 AWG | -40 °C | 105 ░C | 8 A | 0.4 Nm | 3.5 Lb-In | Brass - Tin Plated | Interlocking (Side) | Through Hole | Horizontal with Board | 300 V | M2.5 | 6 | Steel Zinc Plated | 1 | 5 mm | 0.197 in | |||
Adam Tech | Screw - Rising Cage Clamp | Green | 26 AWG | 14 AWG | -40 °C | 105 ░C | 12 A | 0.4 Nm | 3.5 Lb-In | Interlocking (Side) | Through Hole | 300 V | M2.5 | 2 | 1 | 5.08 mm | 0.2 in | Tin | 135 ° | 45 ° | ||||
Adam Tech | Screw - Rising Cage Clamp | Brass - Nickel Plated | Green | 26 AWG | 16 AWG | -40 °C | 105 ░C | 8 A | 0.4 Nm | 3.5 Lb-In | Brass - Tin Plated | Interlocking (Side) | Through Hole | Horizontal with Board | 300 V | M2.5 | 6 | Steel Zinc Plated | 1 | 5.08 mm | 0.2 in | |||
Adam Tech | Screw - Rising Cage Clamp | Brass - Nickel Plated | Green | 26 AWG | 16 AWG | -40 °C | 105 ░C | 8 A | 0.4 Nm | 3.5 Lb-In | Brass - Tin Plated | Interlocking (Side) | Through Hole | Horizontal with Board | 300 V | M2.5 | 5 | Steel Zinc Plated | 1 | 5.08 mm | 0.2 in | |||
Adam Tech | Screw - Rising Cage Clamp | Brass - Nickel Plated | Green | 26 AWG | 16 AWG | -40 °C | 105 ░C | 8 A | 0.4 Nm | 3.5 Lb-In | Brass - Tin Plated | Interlocking (Side) | Through Hole | Horizontal with Board | 300 V | M2.5 | 2 | Steel Zinc Plated | 1 | 5.08 mm | 0.2 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.48 | |
| 10 | $ 0.81 | |||
| 25 | $ 0.68 | |||
| 50 | $ 0.61 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.51 | |||
| 500 | $ 0.48 | |||
| 1000 | $ 0.46 | |||
| 5000 | $ 0.43 | |||
Description
General part information
EB21A Series
6 Position Wire to Board Terminal Block Horizontal with Board 0.200" (5.08mm) Through Hole
