EB21A-06-C

Active

Adam Tech

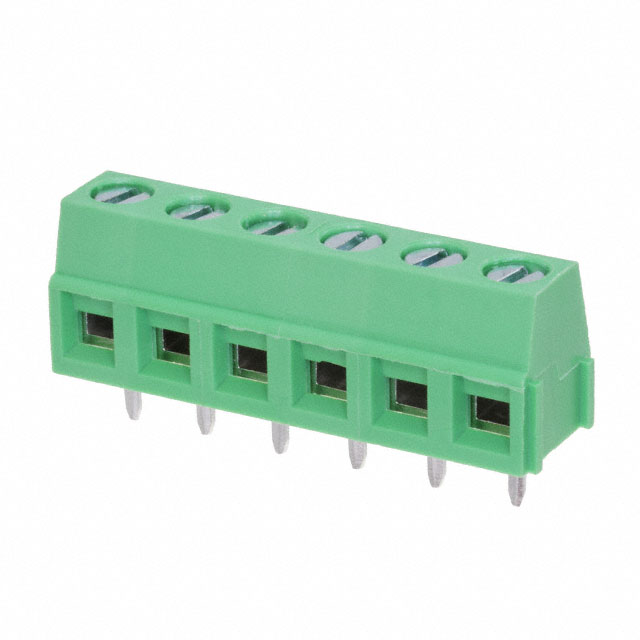

CONN TERMINAL BLOCK 6 POS 5MM SOLDER ST THRU-HOLE 8A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsXCFR8.E333935- Terminal Blocks Certified for Canada Datasheet +1

EB21A-06-C

Active

Adam Tech

CONN TERMINAL BLOCK 6 POS 5MM SOLDER ST THRU-HOLE 8A

Deep-Dive with AI

DocumentsXCFR8.E333935- Terminal Blocks Certified for Canada Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EB21A-06-C

Clamp Material - Plating	Brass - Nickel Plated
Color	Green
Contact Material - Plating [custom]	Brass - Tin Plated
Current	8 A
Features	Interlocking (Side)
Mating Orientation	Horizontal with Board
Mounting Type	Through Hole
Number of Levels	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	6
Screw Material - Plating	Steel, Zinc Plated
Screw Thread	M2.5
Torque - Screw	0.4 Nm
Torque - Screw	3.5 Lb-In
Voltage	300 V
Wire Gauge [Max]	26 AWG
Wire Gauge [Min]	16 AWG
Wire Termination	Screw - Rising Cage Clamp

EB21A Series

Part	Wire Termination	Clamp Material - Plating	Color	Wire Gauge [Max]	Wire Gauge [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Current	Torque - Screw	Torque - Screw	Contact Material - Plating [custom]	Features	Mounting Type	Mating Orientation	Voltage	Screw Thread	Positions Per Level	Screw Material - Plating	Number of Levels	Pitch [x]	Pitch [x]	Contact Material - Plating	Mating Orientation	Mating Orientation
Adam Tech EB21A-02-C	Screw - Rising Cage Clamp	Brass - Nickel Plated	Green	26 AWG	16 AWG	-40 °C	105 ░C	8 A	0.4 Nm	3.5 Lb-In	Brass - Tin Plated	Interlocking (Side)	Through Hole	Horizontal with Board	300 V	M2.5	2	Steel Zinc Plated	1	5 mm	0.197 in
Adam Tech EB21A-04-C	Screw - Rising Cage Clamp	Brass - Nickel Plated	Green	26 AWG	16 AWG	-40 °C	105 ░C	8 A	0.4 Nm	3.5 Lb-In	Brass - Tin Plated	Interlocking (Side)	Through Hole	Horizontal with Board	300 V	M2.5	4	Steel Zinc Plated	1	5 mm	0.197 in
Adam Tech EB21A-06-C	Screw - Rising Cage Clamp	Brass - Nickel Plated	Green	26 AWG	16 AWG	-40 °C	105 ░C	8 A	0.4 Nm	3.5 Lb-In	Brass - Tin Plated	Interlocking (Side)	Through Hole	Horizontal with Board	300 V	M2.5	6	Steel Zinc Plated	1	5 mm	0.197 in
Adam Tech EB21A-02-D-DA	Screw - Rising Cage Clamp		Green	26 AWG	14 AWG	-40 °C	105 ░C	12 A	0.4 Nm	3.5 Lb-In		Interlocking (Side)	Through Hole		300 V	M2.5	2		1	5.08 mm	0.2 in	Tin	135 °	45 °
Adam Tech EB21A-06-D	Screw - Rising Cage Clamp	Brass - Nickel Plated	Green	26 AWG	16 AWG	-40 °C	105 ░C	8 A	0.4 Nm	3.5 Lb-In	Brass - Tin Plated	Interlocking (Side)	Through Hole	Horizontal with Board	300 V	M2.5	6	Steel Zinc Plated	1	5.08 mm	0.2 in
Adam Tech EB21A-05-D	Screw - Rising Cage Clamp	Brass - Nickel Plated	Green	26 AWG	16 AWG	-40 °C	105 ░C	8 A	0.4 Nm	3.5 Lb-In	Brass - Tin Plated	Interlocking (Side)	Through Hole	Horizontal with Board	300 V	M2.5	5	Steel Zinc Plated	1	5.08 mm	0.2 in
Adam Tech EB21A-02-D	Screw - Rising Cage Clamp	Brass - Nickel Plated	Green	26 AWG	16 AWG	-40 °C	105 ░C	8 A	0.4 Nm	3.5 Lb-In	Brass - Tin Plated	Interlocking (Side)	Through Hole	Horizontal with Board	300 V	M2.5	2	Steel Zinc Plated	1	5.08 mm	0.2 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.46
		10	$ 0.80
		25	$ 0.67
		50	$ 0.60
		100	$ 0.55
		250	$ 0.50
		500	$ 0.47
		1000	$ 0.45
		5000	$ 0.42

Description

General part information

EB21A Series

6 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
