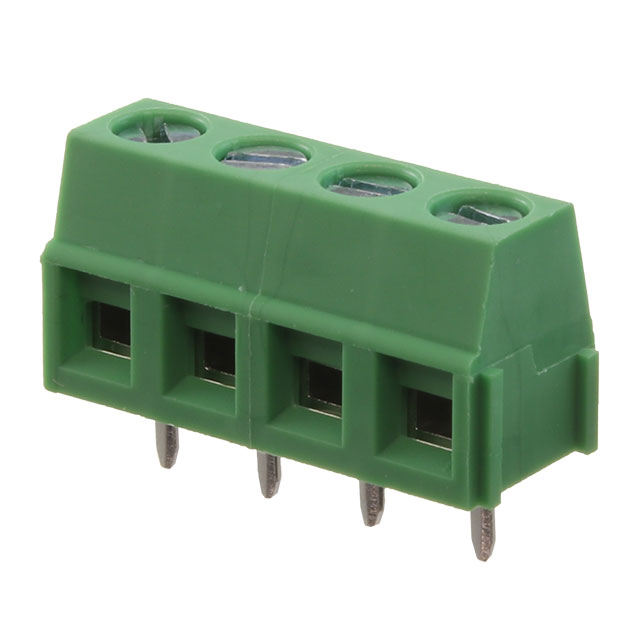

EB21A-04-C
ActiveAdam Tech
EURO BLOCK 4P
Deep-Dive with AI
Search across all available documentation for this part.
EB21A-04-C
ActiveAdam Tech
EURO BLOCK 4P
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EB21A-04-C |
|---|---|
| Clamp Material - Plating | Brass - Nickel Plated |
| Color | Green |
| Contact Material - Plating [custom] | Brass - Tin Plated |
| Current | 8 A |
| Features | Interlocking (Side) |
| Mating Orientation | Horizontal with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Positions Per Level | 4 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M2.5 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Voltage | 300 V |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 16 AWG |
| Wire Termination | Screw - Rising Cage Clamp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.87 | |
| 10 | $ 0.64 | |||
| 25 | $ 0.56 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.45 | |||
| 250 | $ 0.40 | |||
| 500 | $ 0.37 | |||
| 1000 | $ 0.35 | |||
| 5000 | $ 0.31 | |||
Description
General part information
EB21A Series
4 Position Wire to Board Terminal Block Horizontal with Board 0.197" (5.00mm) Through Hole
