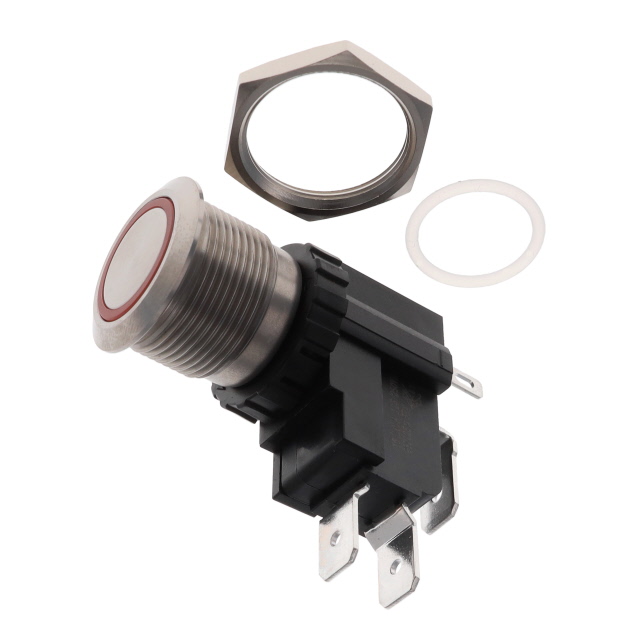

AVH19LSFE3242604

Active

TE Connectivity Raychem Cable Protection

ANTI VANDAL SW, 26A, 250V, SPDT, 19.1MM ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

AVH19LSFE3242604

Active

TE Connectivity Raychem Cable Protection

ANTI VANDAL SW, 26A, 250V, SPDT, 19.1MM ROHS COMPLIANT: YES

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AVH19LSFE3242604

Actuator Marking	No Marking
Actuator Type	Flush, Button, Round
Circuit	SPDT
Color - Actuator/Cap	Silver
Current Rating (Amps)	26 A
Electrical Life	10000 Cycles
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	24 V
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	500000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	19.1 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Type	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V

ALCOSWITCH AVH19 Series

...

Part	Current Rating (Amps)	Type	Color - Actuator/Cap	Mounting Type	Mechanical Life	Voltage Rating - AC	Termination Style	Panel Cutout Dimensions [diameter]	Actuator Type	Actuator Marking	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Illumination Type, Color	Illumination Voltage (Nominal)	Electrical Life	Switch Function	Ingress Protection
TE Connectivity Raychem Cable Protection AVH19LSFE3242604	26 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	500000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	19.1 mm	Button Flush Round	No Marking	-25 °C	85 °C	SPDT	LED Red	24 V	10000 Cycles	On-On	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection AVH19LSFE1122604	26 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	500000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	19.1 mm	Button Flush Round	Power Symbol	-25 °C	85 °C	SPDT	LED White	12 VDC	10000 Cycles	On-On	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection AVH19LSFE1A122604	26 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	500000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	19.1 mm	Button Flush Round	Power Symbol	-25 °C	85 °C	SPDT	Green/Red LED	12 VDC	10000 Cycles	On-On	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection AVH19LSFP7122604	26 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	500000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	19.1 mm	Button Flush Round	Power Symbol	-25 °C	85 °C	SPDT	Blue LED	12 VDC	10000 Cycles	On-On	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection AVH19MSFEB242604	26 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	1000000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	19.1 mm	Button Flush Round	No Marking	-25 °C	85 °C	SPDT	Blue/Red LED	24 V	10000 Cycles	On-Mom	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection AVH19MSFEA121604	16 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	1000000 Cycles	125 V	Quick Connect - 0.187" (4.7mm)	19.1 mm	Button Flush Round	No Marking	-25 °C	85 °C	SPDT	Green/Red LED	12 VDC	50000 Cycles	On-Mom	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection AVH19MSFE15122604	26 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	1000000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	19.1 mm	Button Flush Round	Power Symbol	-25 °C	85 °C	SPDT	LED Yellow	12 VDC	10000 Cycles	On-Mom	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection AVH19MSFEA242604	26 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	1000000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	19.1 mm	Button Flush Round	No Marking	-25 °C	85 °C	SPDT	Green/Red LED	24 V	10000 Cycles	On-Mom	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection AVH19LSFE15121604	16 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	500000 Cycles	125 V	Quick Connect - 0.187" (4.7mm)	19.1 mm	Button Flush Round	Power Symbol	-25 °C	85 °C	SPDT	LED Yellow	12 VDC	50000 Cycles	On-On	IP67 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection AVH19LSFPB242604	26 A	Anti-Vandal Illuminated	Silver	Panel Mount Front	500000 Cycles	125 V	Quick Connect - 0.250" (6.3mm)	19.1 mm	Button Flush Round	Power Symbol	-25 °C	85 °C	SPDT	Blue/Red LED	24 V	10000 Cycles	On-On	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.70
		10	$ 15.16
		30	$ 15.00
Newark	Each	1	$ 35.35
		5	$ 35.27
		10	$ 35.19
		25	$ 35.11
		50	$ 29.38
		100	$ 26.53
		250	$ 25.77

Description

General part information

ALCOSWITCH AVH19 Series

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front

Documents

Technical documentation and resources

No documents available
