AVH19MSFEA121604
ActiveTE Connectivity Raychem Cable Protection
AVH19 FLT SS MT RNG R&G 12V16A
Deep-Dive with AI
Search across all available documentation for this part.
AVH19MSFEA121604
ActiveTE Connectivity Raychem Cable Protection
AVH19 FLT SS MT RNG R&G 12V16A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AVH19MSFEA121604 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 16 A |
| Electrical Life | 50000 Cycles |
| Illumination Type, Color | Green/Red, LED |
| Illumination Voltage (Nominal) | 12 VDC |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 19.1 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V |
ALCOSWITCH AVH19 Series
...
| Part | Current Rating (Amps) | Type | Color - Actuator/Cap | Mounting Type | Mechanical Life | Voltage Rating - AC | Termination Style | Panel Cutout Dimensions [diameter] | Actuator Type | Actuator Marking | Operating Temperature [Min] | Operating Temperature [Max] | Circuit | Illumination Type, Color | Illumination Voltage (Nominal) | Electrical Life | Switch Function | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | 26 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 500000 Cycles | 125 V | Quick Connect - 0.250" (6.3mm) | 19.1 mm | Button Flush Round | No Marking | -25 °C | 85 °C | SPDT | LED Red | 24 V | 10000 Cycles | On-On | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection | 26 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 500000 Cycles | 125 V | Quick Connect - 0.250" (6.3mm) | 19.1 mm | Button Flush Round | Power Symbol | -25 °C | 85 °C | SPDT | LED White | 12 VDC | 10000 Cycles | On-On | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection | 26 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 500000 Cycles | 125 V | Quick Connect - 0.250" (6.3mm) | 19.1 mm | Button Flush Round | Power Symbol | -25 °C | 85 °C | SPDT | Green/Red LED | 12 VDC | 10000 Cycles | On-On | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection | 26 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 500000 Cycles | 125 V | Quick Connect - 0.250" (6.3mm) | 19.1 mm | Button Flush Round | Power Symbol | -25 °C | 85 °C | SPDT | Blue LED | 12 VDC | 10000 Cycles | On-On | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection | 26 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 1000000 Cycles | 125 V | Quick Connect - 0.250" (6.3mm) | 19.1 mm | Button Flush Round | No Marking | -25 °C | 85 °C | SPDT | Blue/Red LED | 24 V | 10000 Cycles | On-Mom | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection | 16 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 1000000 Cycles | 125 V | Quick Connect - 0.187" (4.7mm) | 19.1 mm | Button Flush Round | No Marking | -25 °C | 85 °C | SPDT | Green/Red LED | 12 VDC | 50000 Cycles | On-Mom | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection | 26 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 1000000 Cycles | 125 V | Quick Connect - 0.250" (6.3mm) | 19.1 mm | Button Flush Round | Power Symbol | -25 °C | 85 °C | SPDT | LED Yellow | 12 VDC | 10000 Cycles | On-Mom | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection | 26 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 1000000 Cycles | 125 V | Quick Connect - 0.250" (6.3mm) | 19.1 mm | Button Flush Round | No Marking | -25 °C | 85 °C | SPDT | Green/Red LED | 24 V | 10000 Cycles | On-Mom | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection | 16 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 500000 Cycles | 125 V | Quick Connect - 0.187" (4.7mm) | 19.1 mm | Button Flush Round | Power Symbol | -25 °C | 85 °C | SPDT | LED Yellow | 12 VDC | 50000 Cycles | On-On | IP67 - Dust Tight Waterproof |
TE Connectivity Raychem Cable Protection | 26 A | Anti-Vandal Illuminated | Silver | Panel Mount Front | 500000 Cycles | 125 V | Quick Connect - 0.250" (6.3mm) | 19.1 mm | Button Flush Round | Power Symbol | -25 °C | 85 °C | SPDT | Blue/Red LED | 24 V | 10000 Cycles | On-On | IP67 - Dust Tight Waterproof |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ALCOSWITCH AVH19 Series

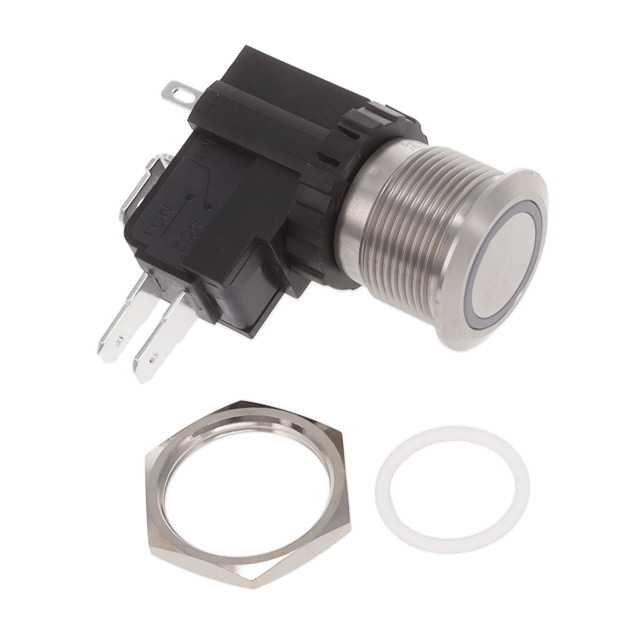

Anti-Vandal Switch, Single Pole - Double Throw Configuration (Pole-Throw), Single Actuator, Flush Actuator, Illuminated, ALCOSWITCH AVH19
