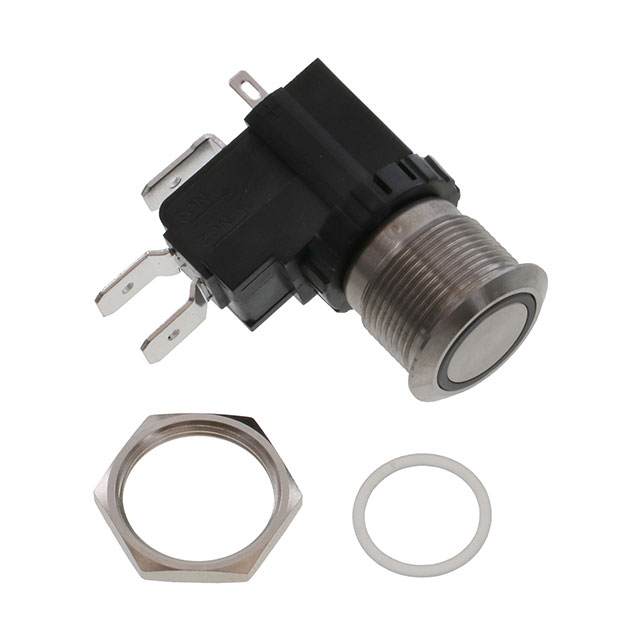

AVH19MSFEB242604
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON SPDT 26A 125V
Deep-Dive with AI
Search across all available documentation for this part.
AVH19MSFEB242604
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON SPDT 26A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AVH19MSFEB242604 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 26 A |
| Electrical Life | 10000 Cycles |
| Illumination Type, Color | Blue/Red, LED |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 19.1 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - AC | 125 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 18.37 | |
| 10 | $ 16.68 | |||
| 30 | $ 16.50 | |||
Description
General part information
ALCOSWITCH AVH19 Series
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
Documents
Technical documentation and resources
No documents available
