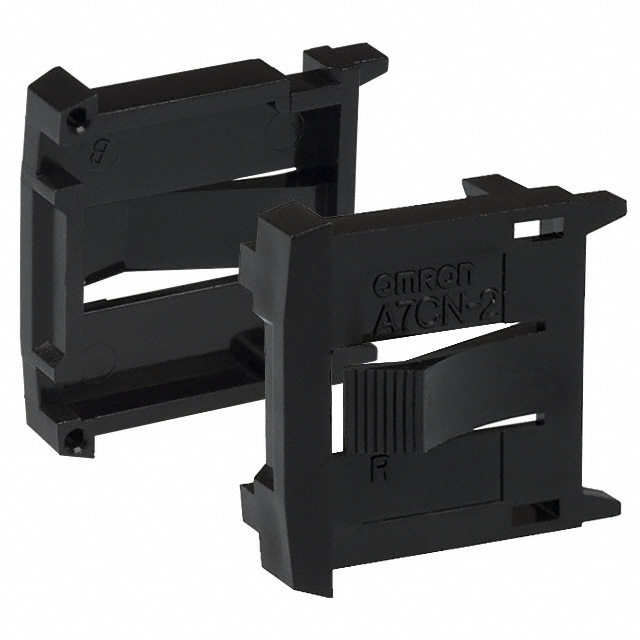

A7CN-2M-1

Active

Omron Electronics Inc-EMC Div

END CAP 2 PCS FOR FRONT MNT A7CN

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

END CAP 2 PCS FOR FRONT MNT A7CN

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

End Cap

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A7CN-2M-1	A7CN Series

Accessory Type	End Cap	End Cap, Spacer
Actuator Type	-	Pushwheel
Color	-	Black
Contact Rating @ Voltage	-	0.1 A
Depth Behind Flange	-	15.5 mm
Display Characters - Height	-	3.4 mm
Display Characters - Height	-	0.134 in
Electrical Life	-	20000 Steps
End Caps	-	Sold Separately
Features	-	Locking Actuator
For Use With/Related Products	SW274-ND, SW273-ND	Omron A7CN Series, SW274-ND, SW273-ND, A7CN Series
Mounting Type	-	Panel Mount, Snap-In
Number of Sections	-	1
Operating Temperature	-	-10 °C
Operating Temperature	-	65 °C
Output Code	-	BCD, SPDT
Read Out	-	0
Read Out	-	9
Read Out	-	+/-
Termination Style	-	PC Pin

END CAP 2PC LIGHT GRAY FRONT MNT

Part	Accessory Type	For Use With/Related Products	End Caps	Contact Rating @ Voltage	Termination Style	Display Characters - Height [z]	Display Characters - Height [z]	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Code	Color	Read Out [Min]	Read Out [Max]	Number of Sections	Depth Behind Flange	Electrical Life	Read Out	Features
Omron Electronics Inc-EMC Div A7CN-2M	End Cap	Omron A7CN Series
Omron Electronics Inc-EMC Div A7CN-1M-1	End Cap	SW273-ND, SW274-ND
Omron Electronics Inc-EMC Div A7CN-2M-1	End Cap	SW273-ND, SW274-ND
Omron Electronics Inc-EMC Div A7CN-206-1			Sold Separately	0.1 A	PC Pin	3.4 mm	0.134 in	Pushwheel	-10 °C	65 °C	Panel Mount, Snap-In	BCD	Black	0	9	1	15.5 mm	20000 Steps
Omron Electronics Inc-EMC Div A7CN-206-PM-1			Sold Separately	0.1 A	PC Pin	3.4 mm	0.134 in	Pushwheel	-10 °C	65 °C	Panel Mount, Snap-In	SPDT	Black			1	15.5 mm	20000 Steps	+/-
Omron Electronics Inc-EMC Div A7CN-2PB-1	Spacer	A7CN Series
Omron Electronics Inc-EMC Div A7CN-2PU-1	Spacer	A7CN Series
Omron Electronics Inc-EMC Div A7CN-L206-1			Sold Separately	0.1 A	PC Pin	3.4 mm	0.134 in	Pushwheel	-10 °C	65 °C	Panel Mount, Snap-In	BCD	Black	0	9	1	15.5 mm	20000 Steps		Locking Actuator
Omron Electronics Inc-EMC Div A7CN-2PA-1	Spacer	SW273-ND, SW274-ND
