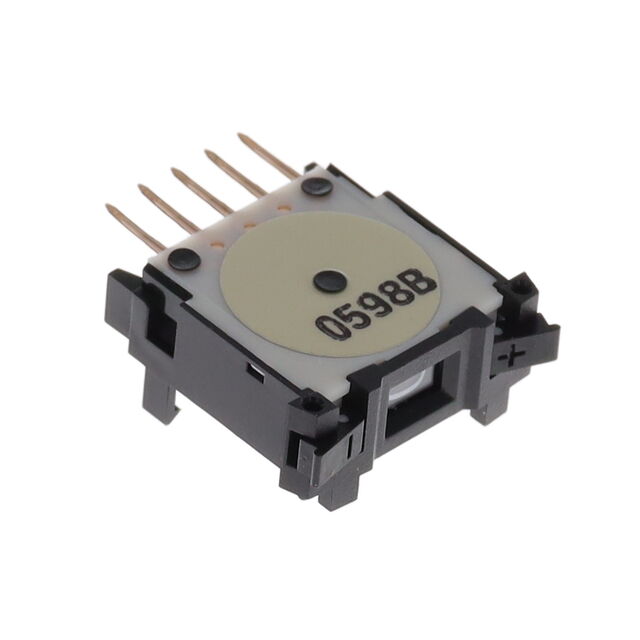

A7CN-L206-1

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 28V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 28V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thumbwheel Switch BCD 0.1A @ 28VDC Panel Mount, Snap-In

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	A7CN-L206-1	A7CN Series

Accessory Type	-	End Cap, Spacer
Actuator Type	Pushwheel	Pushwheel
Color	Black	Black
Contact Rating @ Voltage	0.1 A	0.1 A
Depth Behind Flange	15.5 mm	15.5 mm
Display Characters - Height [z]	3.4 mm	3.4 mm
Display Characters - Height [z]	0.134 in	0.134 in
Electrical Life	20000 Steps	20000 Steps
End Caps	Sold Separately	Sold Separately
Features	Locking Actuator	Locking Actuator
For Use With/Related Products	-	Omron A7CN Series, SW274-ND, SW273-ND, A7CN Series
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Number of Sections	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Code	BCD	BCD, SPDT
Read Out	-	+/-
Read Out [Max]	9	9
Read Out [Min]	0	0
Termination Style	PC Pin	PC Pin

END CAP 2PC LIGHT GRAY FRONT MNT

Part	Accessory Type	For Use With/Related Products	End Caps	Contact Rating @ Voltage	Termination Style	Display Characters - Height [z]	Display Characters - Height [z]	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Code	Color	Read Out [Min]	Read Out [Max]	Number of Sections	Depth Behind Flange	Electrical Life	Read Out	Features
Omron Electronics Inc-EMC Div A7CN-2M	End Cap	Omron A7CN Series
Omron Electronics Inc-EMC Div A7CN-1M-1	End Cap	SW273-ND, SW274-ND
Omron Electronics Inc-EMC Div A7CN-2M-1	End Cap	SW273-ND, SW274-ND
Omron Electronics Inc-EMC Div A7CN-206-1			Sold Separately	0.1 A	PC Pin	3.4 mm	0.134 in	Pushwheel	-10 °C	65 °C	Panel Mount, Snap-In	BCD	Black	0	9	1	15.5 mm	20000 Steps
Omron Electronics Inc-EMC Div A7CN-206-PM-1			Sold Separately	0.1 A	PC Pin	3.4 mm	0.134 in	Pushwheel	-10 °C	65 °C	Panel Mount, Snap-In	SPDT	Black			1	15.5 mm	20000 Steps	+/-
Omron Electronics Inc-EMC Div A7CN-2PB-1	Spacer	A7CN Series
Omron Electronics Inc-EMC Div A7CN-2PU-1	Spacer	A7CN Series
Omron Electronics Inc-EMC Div A7CN-L206-1			Sold Separately	0.1 A	PC Pin	3.4 mm	0.134 in	Pushwheel	-10 °C	65 °C	Panel Mount, Snap-In	BCD	Black	0	9	1	15.5 mm	20000 Steps		Locking Actuator
Omron Electronics Inc-EMC Div A7CN-2PA-1	Spacer	SW273-ND, SW274-ND
