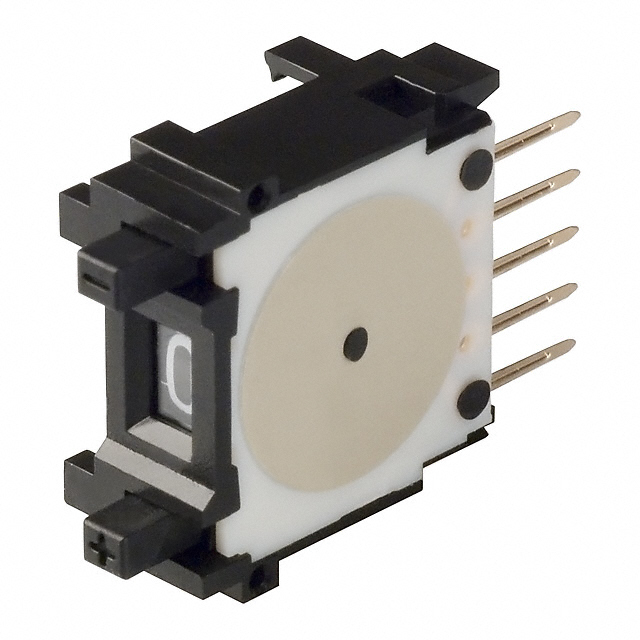

A7CN-206-1

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 28V

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

SWITCH THUMB BCD 0.1A 28V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A7CN-206-1	A7CN Series

Accessory Type	-	End Cap, Spacer
Actuator Type	Pushwheel	Pushwheel
Color	Black	Black
Contact Rating @ Voltage	0.1 A	0.1 A
Depth Behind Flange	15.5 mm	15.5 mm
Display Characters - Height [z]	3.4 mm	3.4 mm
Display Characters - Height [z]	0.134 in	0.134 in
Electrical Life	20000 Steps	20000 Steps
End Caps	Sold Separately	Sold Separately
Features	-	Locking Actuator
For Use With/Related Products	-	Omron A7CN Series, SW274-ND, SW273-ND, A7CN Series
Mounting Type	Panel Mount, Snap-In	Panel Mount, Snap-In
Number of Sections	1	1
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-10 °C	-10 °C
Output Code	BCD	BCD, SPDT
Read Out	-	+/-
Read Out [Max]	9	9
Read Out [Min]	0	0
Termination Style	PC Pin	PC Pin

END CAP 2PC LIGHT GRAY FRONT MNT

Part	Accessory Type	For Use With/Related Products	End Caps	Contact Rating @ Voltage	Termination Style	Display Characters - Height [z]	Display Characters - Height [z]	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Output Code	Color	Read Out [Min]	Read Out [Max]	Number of Sections	Depth Behind Flange	Electrical Life	Read Out	Features
Omron Electronics Inc-EMC Div A7CN-2M	End Cap	Omron A7CN Series
Omron Electronics Inc-EMC Div A7CN-1M-1	End Cap	SW273-ND, SW274-ND
Omron Electronics Inc-EMC Div A7CN-2M-1	End Cap	SW273-ND, SW274-ND
Omron Electronics Inc-EMC Div A7CN-206-1			Sold Separately	0.1 A	PC Pin	3.4 mm	0.134 in	Pushwheel	-10 °C	65 °C	Panel Mount, Snap-In	BCD	Black	0	9	1	15.5 mm	20000 Steps
Omron Electronics Inc-EMC Div A7CN-206-PM-1			Sold Separately	0.1 A	PC Pin	3.4 mm	0.134 in	Pushwheel	-10 °C	65 °C	Panel Mount, Snap-In	SPDT	Black			1	15.5 mm	20000 Steps	+/-
Omron Electronics Inc-EMC Div A7CN-2PB-1	Spacer	A7CN Series
Omron Electronics Inc-EMC Div A7CN-2PU-1	Spacer	A7CN Series
Omron Electronics Inc-EMC Div A7CN-L206-1			Sold Separately	0.1 A	PC Pin	3.4 mm	0.134 in	Pushwheel	-10 °C	65 °C	Panel Mount, Snap-In	BCD	Black	0	9	1	15.5 mm	20000 Steps		Locking Actuator
Omron Electronics Inc-EMC Div A7CN-2PA-1	Spacer	SW273-ND, SW274-ND
